Valve Lifter Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3049-A Valve Lifter Remover

Remove the valve lifter guide bolts (1).
Remove the valve lifters and guide.

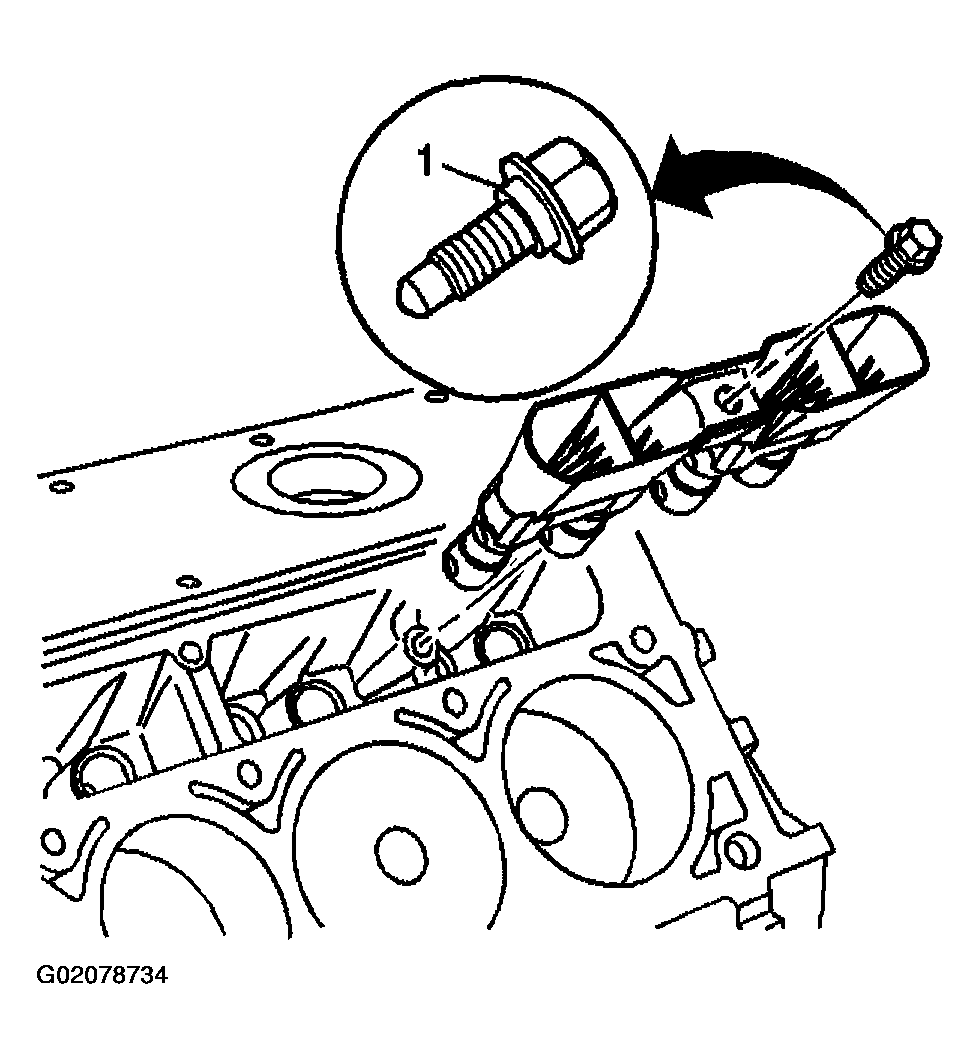

Fig 1: Removing Valve Lifter Guide Bolts, Valve Lifters & Guide
Courtesy of GENERAL MOTORS CORP.

Important: Some valve lifters may be stuck in their bores because of gum or varnish deposits.
Use the J 3049-A or equivalent in order to remove the valve lifters, if required.

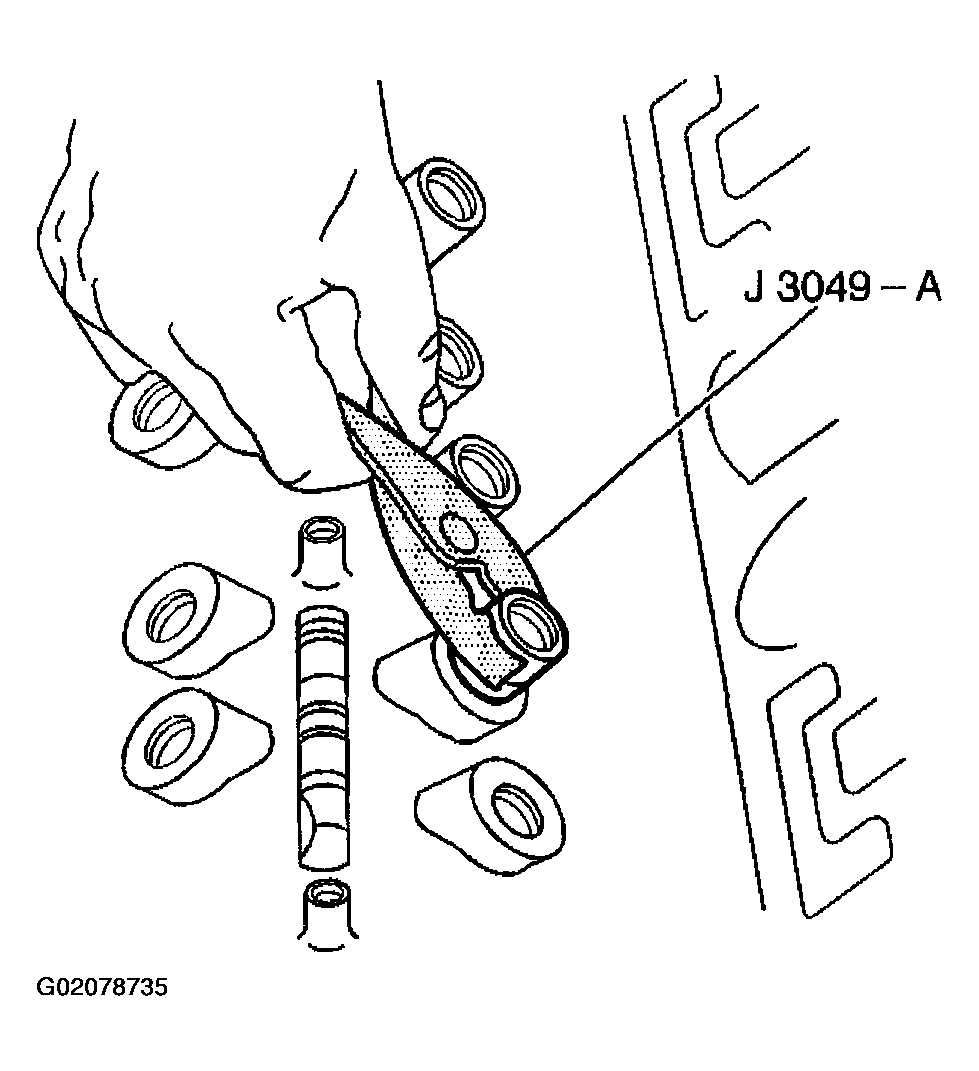

Fig 2: Removing Valve Lifters Using J 3049-A
Courtesy of GENERAL MOTORS CORP.
Remove the valve lifters from the guide.
Organize or mark the components so that they can be installed in the same location from which they were removed. Refer to Separating Parts .

Fig 3: Removing Valve Lifters From Guide
Courtesy of GENERAL MOTORS CORP.
