Piston, Connecting Rod, and Bearing Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

Important:  The connecting rods and the bearing caps are NOT interchangeable.

  1. Use the J 24270  in order to remove the cylinder bore ring ridge, if required.
    1. Turn the crankshaft until the piston is at the bottom of the stroke.
    2. Place a cloth on top of the piston.
    3. Use the J 24270  or equivalent in order to remove a cylinder ring ridge.
    4. Turn the crankshaft so the piston is at the top of the stroke.
    5. Remove the cloth.
    6. Remove the cutting debris from the cylinder and piston.

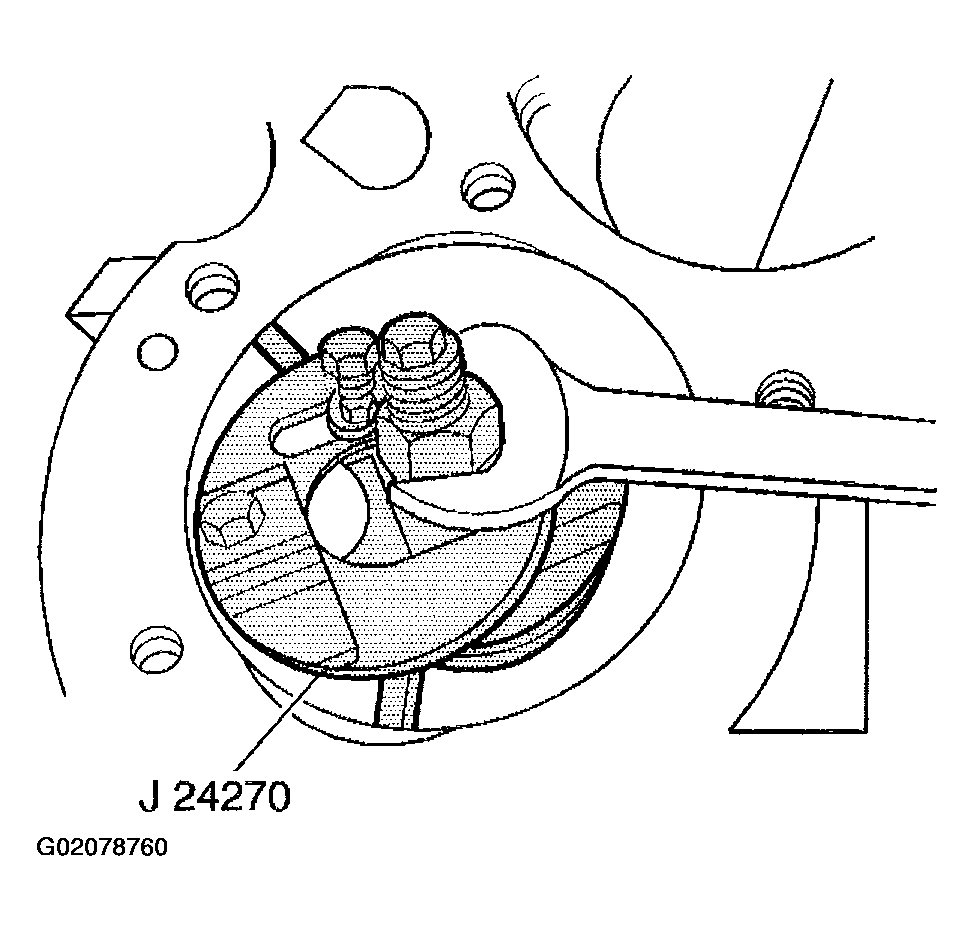

      Fig 1: Removing Cylinder Bore Ring Ridge Using J 24270
      G02078760Courtesy of GENERAL MOTORS CORP.

    Important:  Using a paint stick or etching tool, place matchmarks or numbers on the connecting rods and the connecting rod caps. The connecting rods and caps MUST be assembled to their original position and direction.

    A stamping mark on the side of the connecting rod at the crank journal may effect component geometry.

    Mark the top of the piston to the specific cylinder bore.

  2. Remove the connecting rod bolts.

    Important:  Mark, sort, or organize the connecting rod bearings so they may be installed to their original position and location.

  3. Remove the connecting rod cap. Refer to Separating Parts .
    Fig 2: Removing Connecting Rod Bolts & Cap
    G02078761Courtesy of GENERAL MOTORS CORP.
  4. Install the J 41556  to the connecting rod.

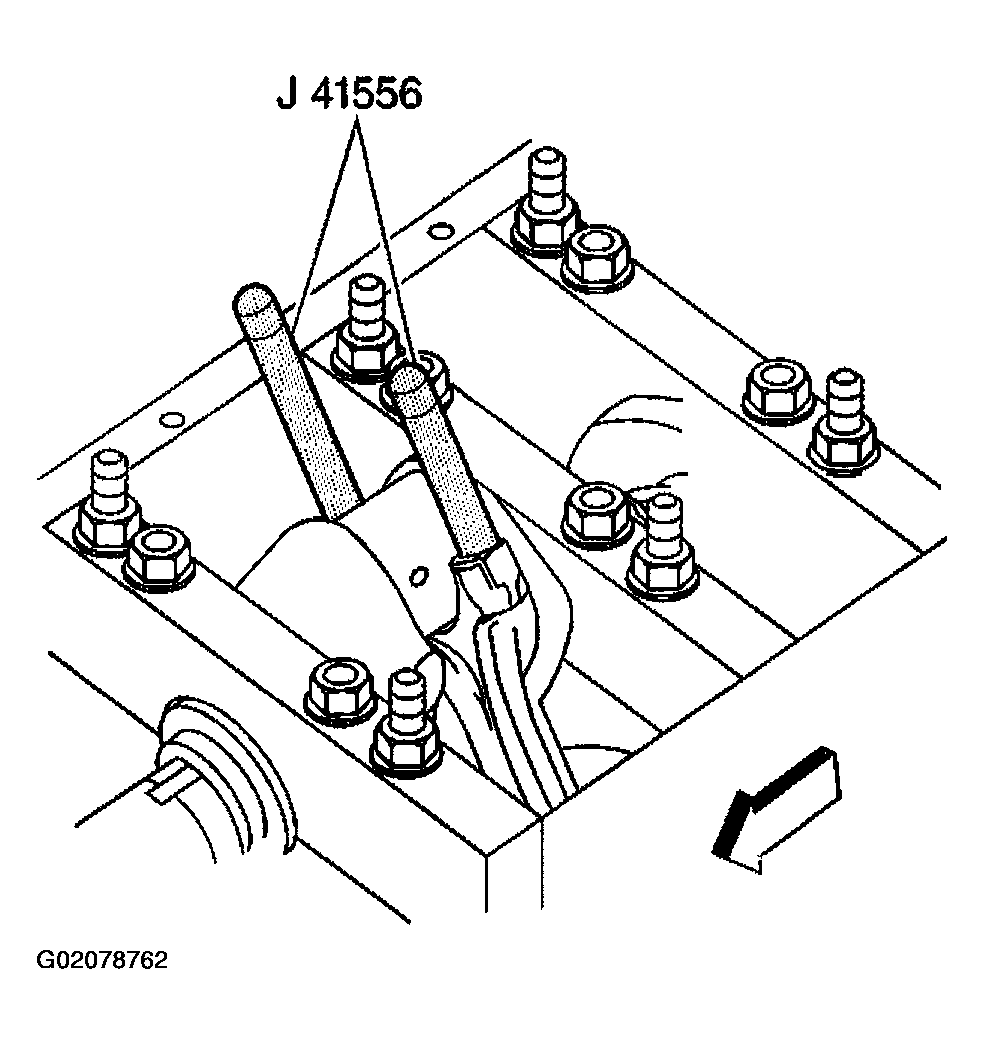

    Fig 3: Installing J 41556 To Connecting Rod
    G02078762Courtesy of GENERAL MOTORS CORP.
  5. Use a hammer and tap lightly on the end of the J 41556  in order to remove the piston and connecting rod assembly from the cylinder bore.

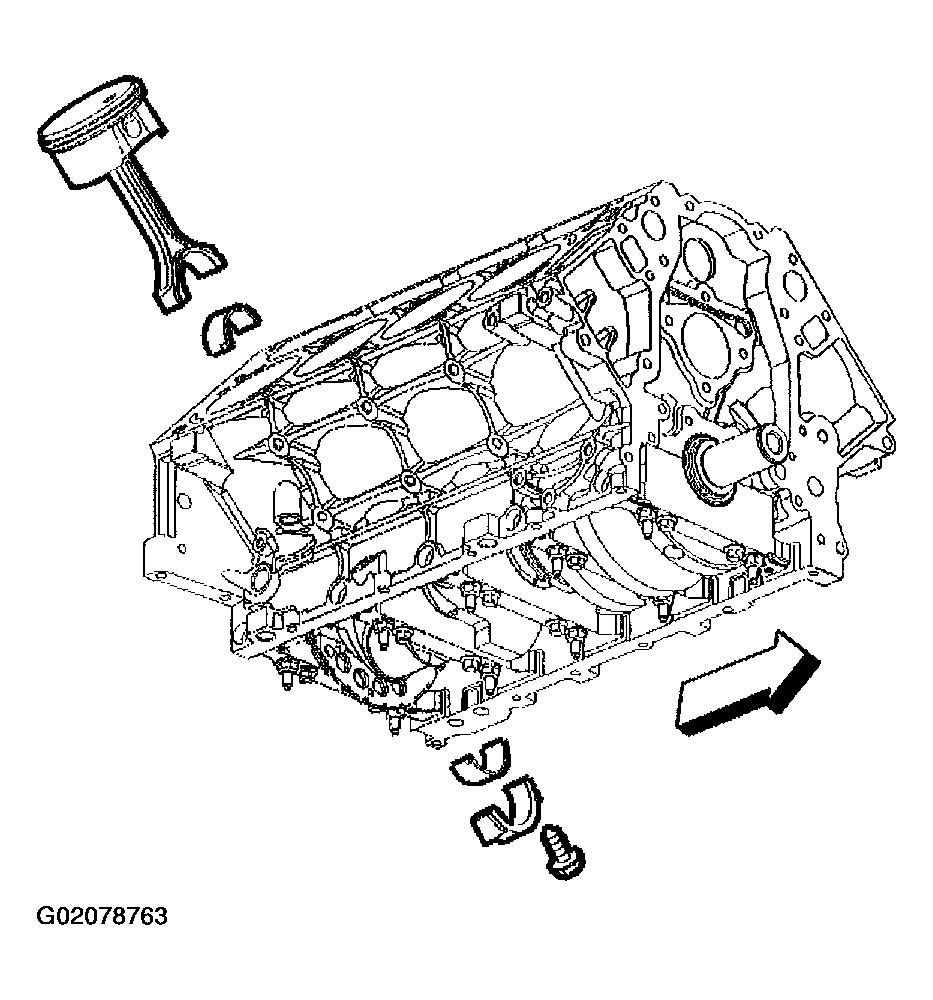

    Fig 4: Removing Piston & Connecting Rod Assembly
    G02078763Courtesy of GENERAL MOTORS CORP.
  6. Upon removal of the piston and connecting rod assembly, assemble the connecting rod cap and bolts onto the matching connecting rod.
    Fig 5: Assembling Connecting Rod Cap & Bolts Onto Connecting Rod
    G02078764Courtesy of GENERAL MOTORS CORP.
