Oil Level Indicator and Tube Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the tube.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.

    Important:  Inspect the O-ring seal for cuts or damage. The O-ring seal may be used again if not cut or damaged.

  4. Remove the O-ring seal from the tube, if required.

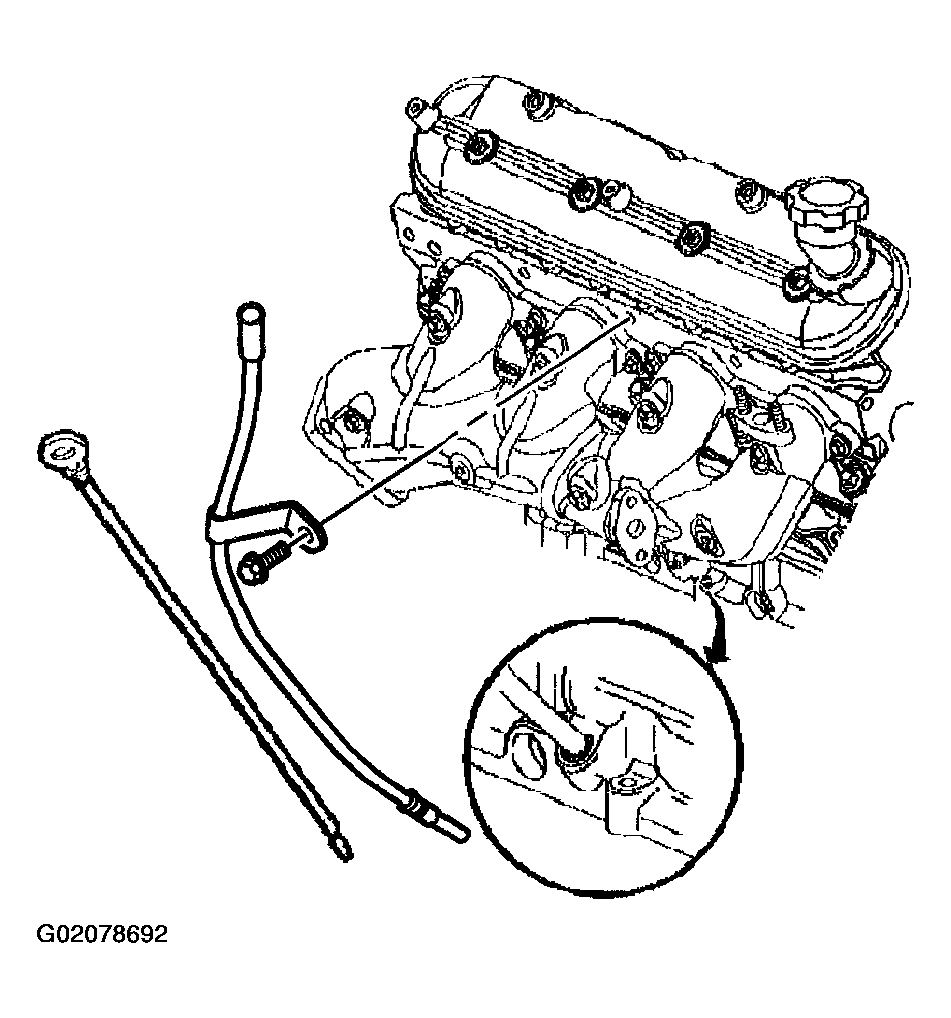

    Fig 1: Removing Oil Level Indicator & Tube
    G02078692Courtesy of GENERAL MOTORS CORP.
