Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator. Refer to GENERATOR .
  2. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.3L) or POWER STEERING PUMP REPLACEMENT (4.8L, 5.3L, AND 6.0L) .
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.

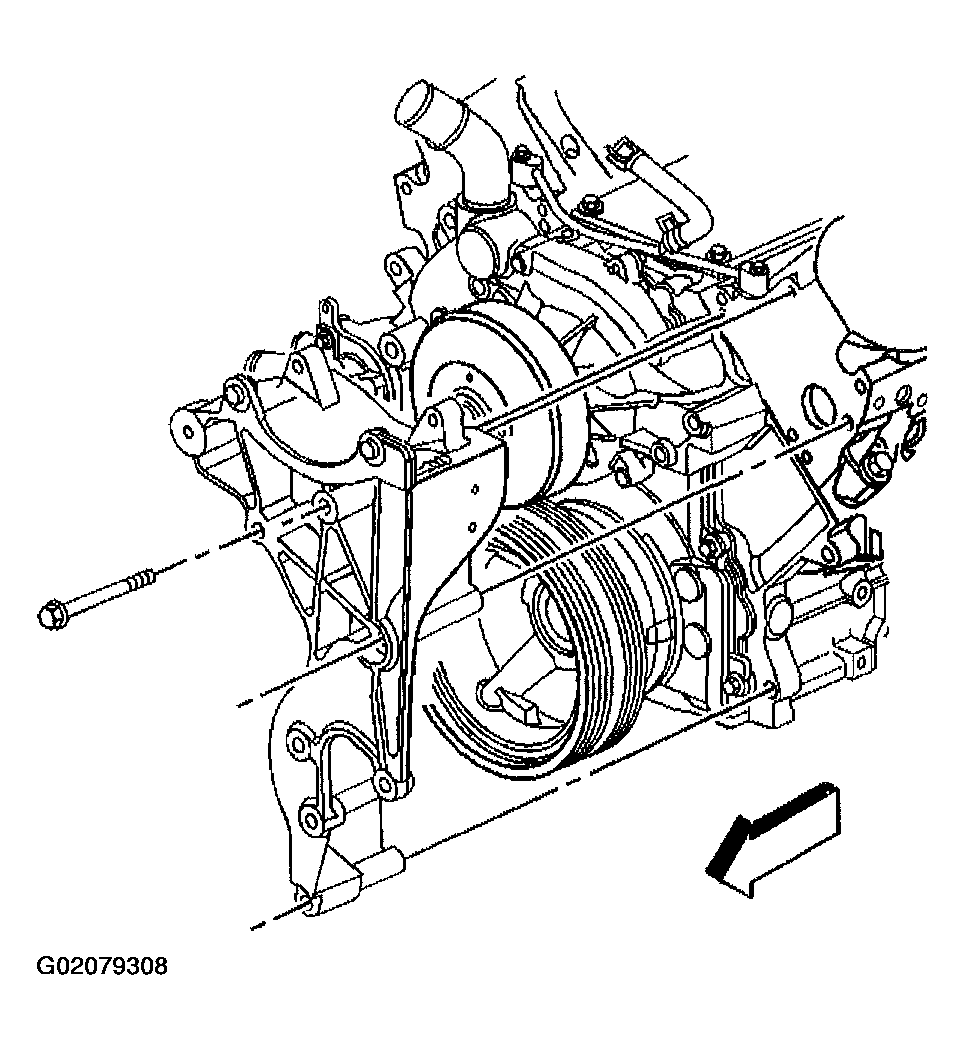

    Fig 1: Removing Generator Bracket (4.8L, 5.3L & 6.0L)
    G02079308Courtesy of GENERAL MOTORS CORP.
