Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the generator bracket.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the generator bracket bolts.

    Tighten

    Tighten the generator bracket bolts to 50 N.m (37 lb ft).

  3. Install the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT (4.3L) or POWER STEERING PUMP REPLACEMENT (4.8L, 5.3L, AND 6.0L) .
  4. Install the generator. Refer to GENERATOR .

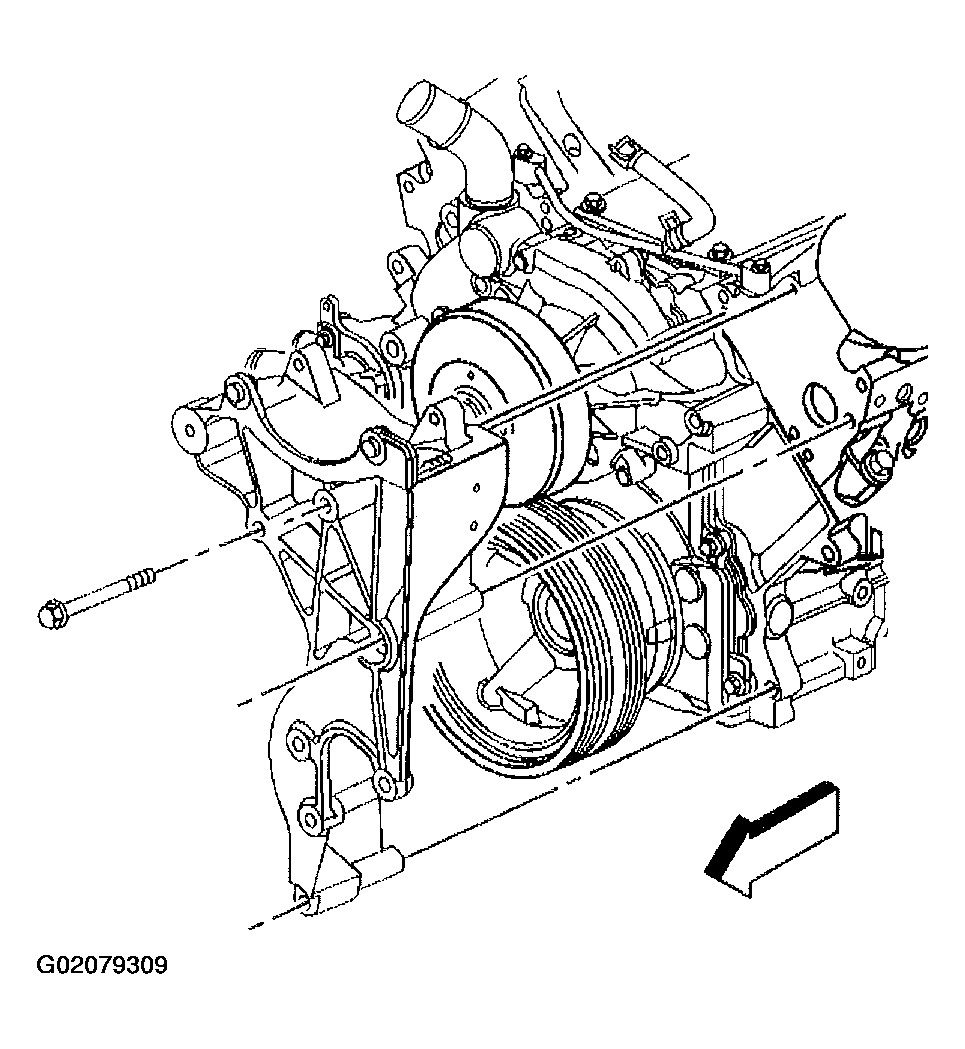

    Fig 1: Installing Generator Bracket (4.8L, 5.3L & 6.0L)
    G02079309Courtesy of GENERAL MOTORS CORP.
