Exhaust Manifold Removal - Right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not remove the exhaust gas recirculation (EGR) valve from the pipe assembly unless service is required, if applicable.

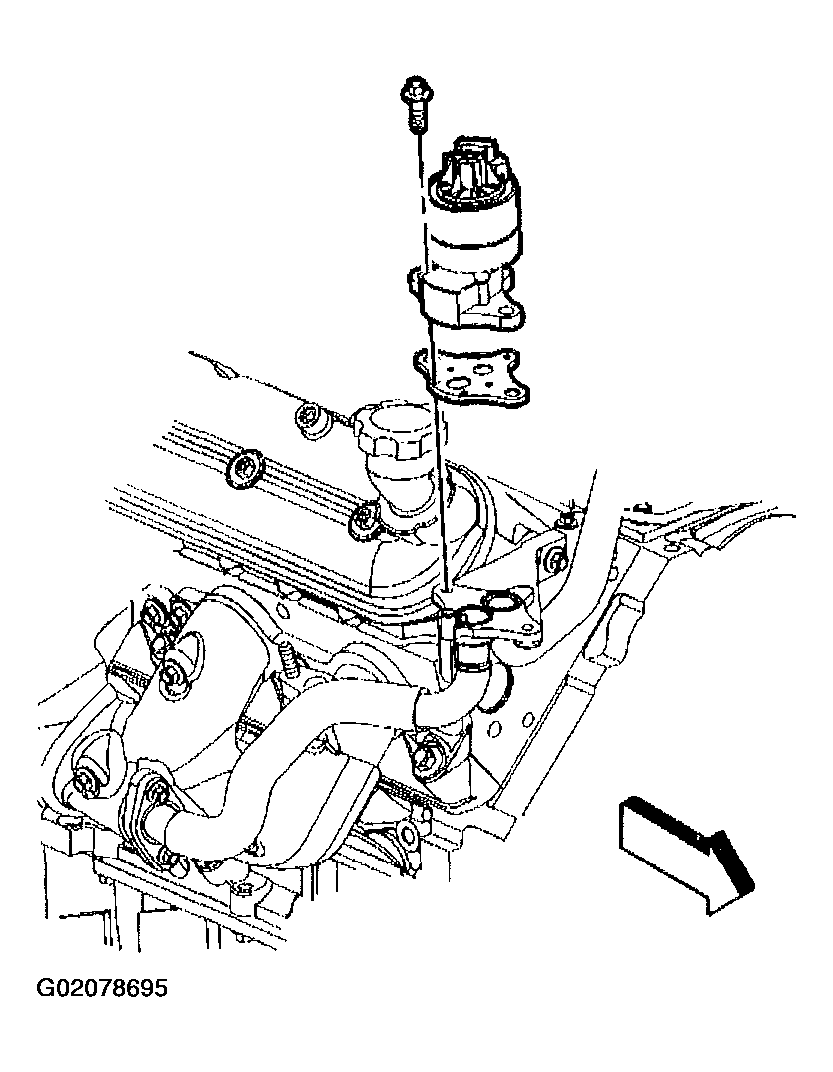

Remove the EGR valve, gasket, and bolts.

Fig 1: Removing EGR Valve, Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.

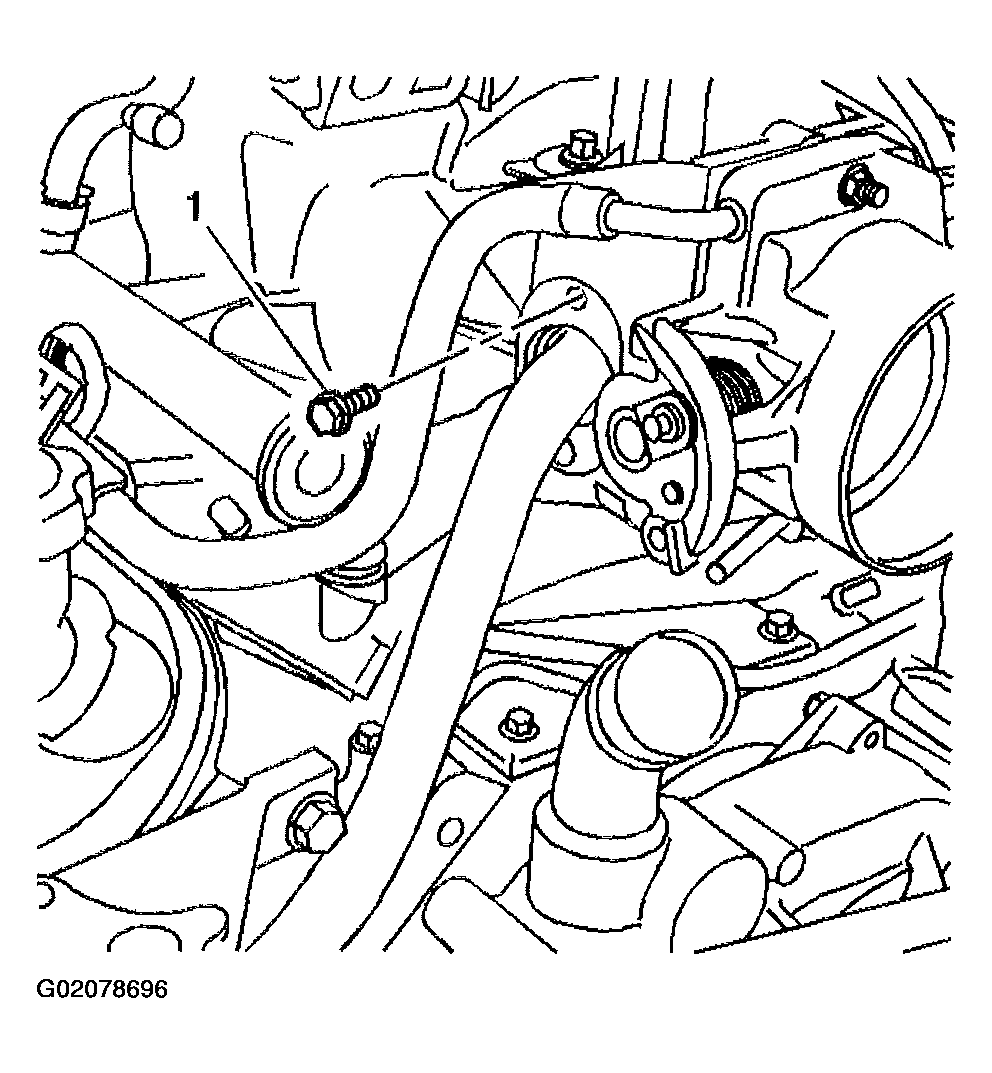

Remove the EGR pipe bolt (1) from the intake manifold.

Fig 2: Removing EGR Pipe Bolt
Courtesy of GENERAL MOTORS CORP.

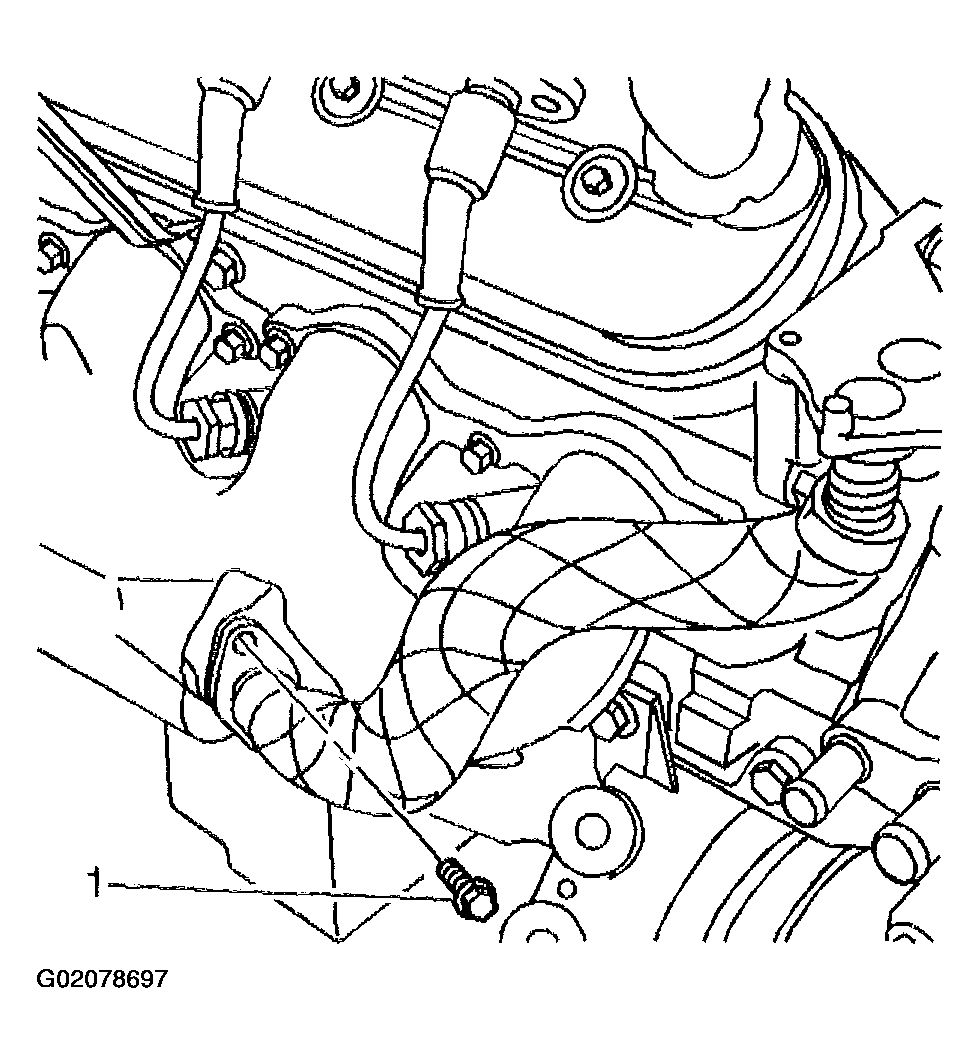

Remove the EGR pipe bolts (1) and gasket from the exhaust manifold.

Fig 3: Removing EGR Pipe Bolts & Gasket
Courtesy of GENERAL MOTORS CORP.

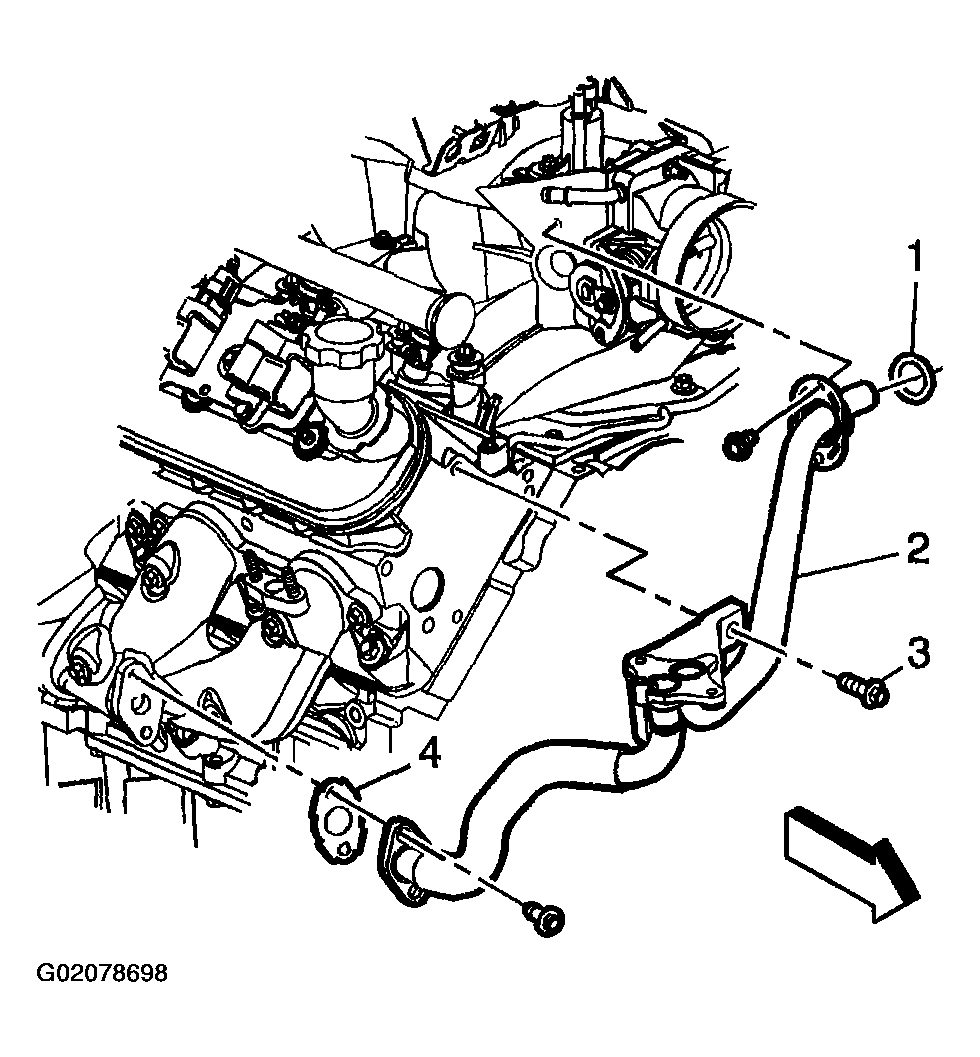

Remove the EGR pipe bolts (3) from the cylinder head.
Remove the EGR pipe assembly.
With mild force, pull the EGR pipe (2) from the intake manifold.
Remove the O-ring seal (1) from the EGR pipe assembly.
Discard the exhaust manifold gasket (4) and O-ring seal (1).

Fig 4: Removing Bolts, EGR Pipe & O-Ring Seal
Courtesy of GENERAL MOTORS CORP.
Remove the spark plug wires from the spark plugs.
Do not remove the spark plug wires from the ignition coils unless required.

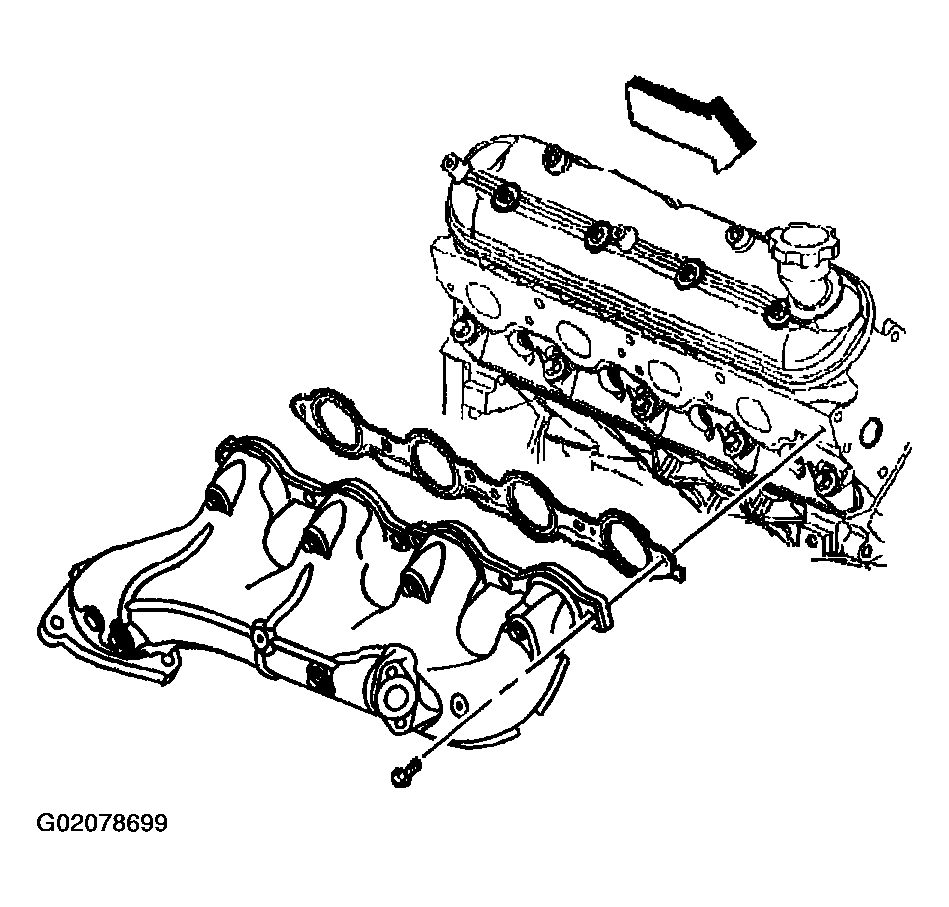

Remove the exhaust manifold, bolts, and gasket.
Discard the gasket.

Fig 5: Removing Exhaust Manifold, Bolts & Gasket
Courtesy of GENERAL MOTORS CORP.

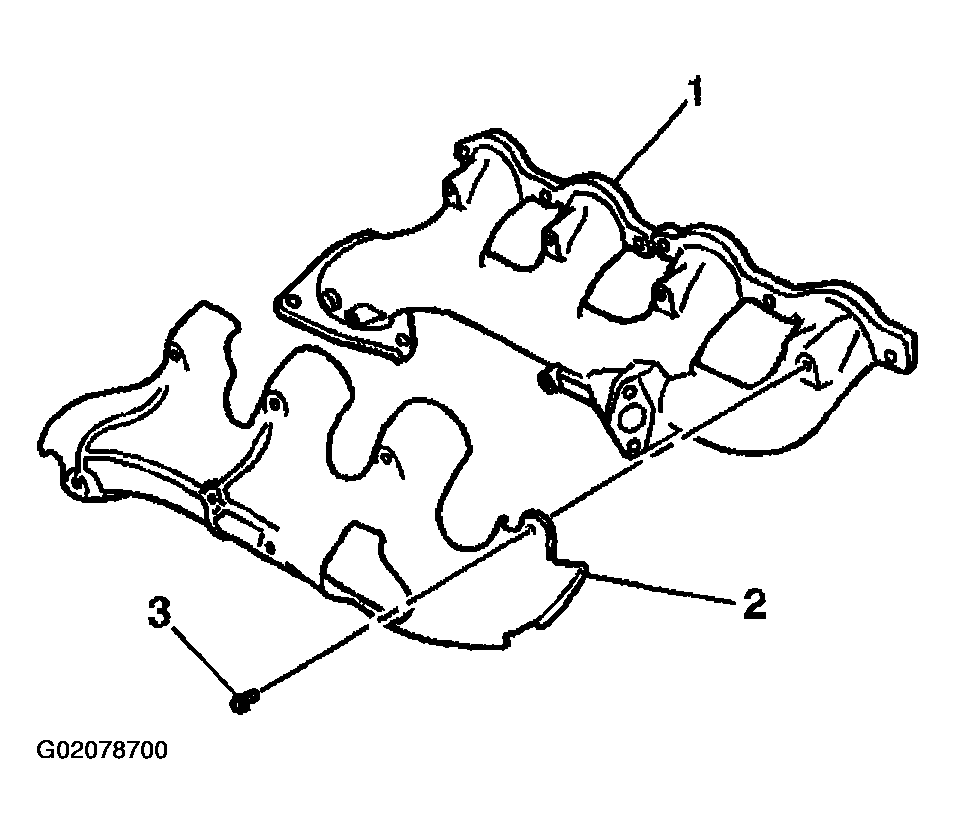

Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

Fig 6: Removing Heat Shield & Bolts
Courtesy of GENERAL MOTORS CORP.
