Exhaust Manifold Removal - Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires from the spark plugs.

    Do not remove the spark plug wires from the ignition coils unless required.

  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.

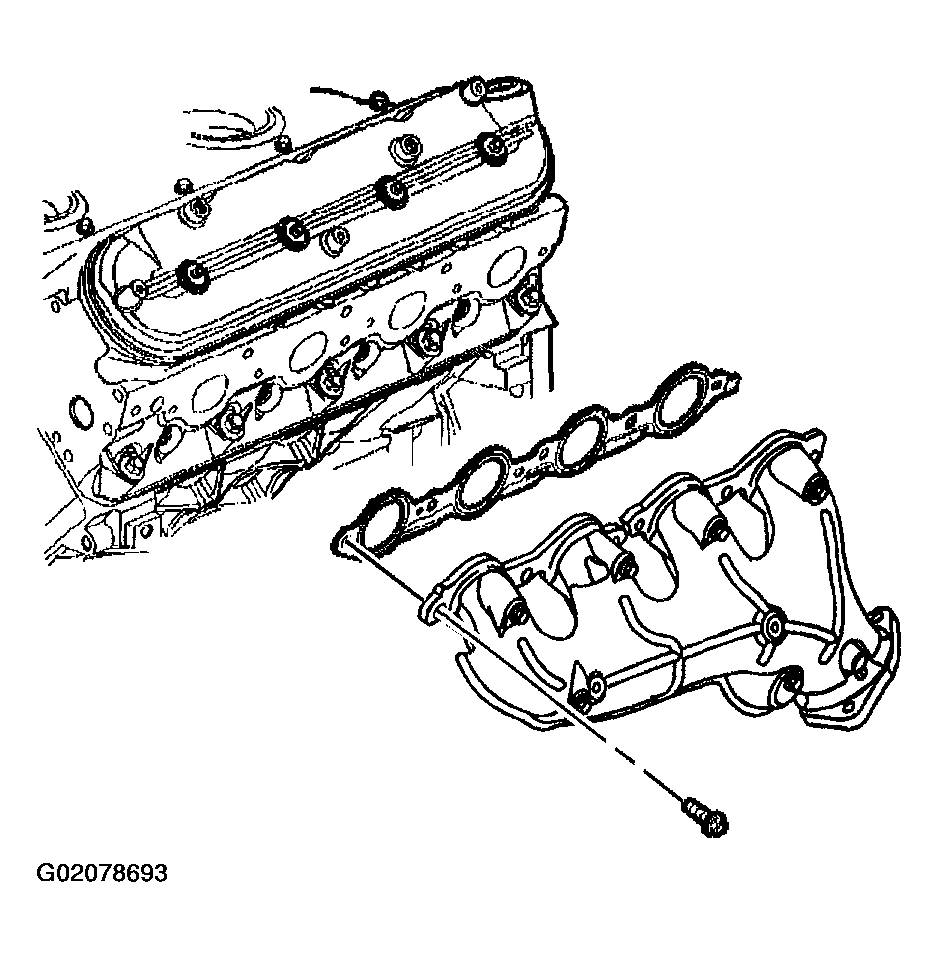

    Fig 1: Removing Exhaust Manifold, Bolts & Gasket
    G02078693Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

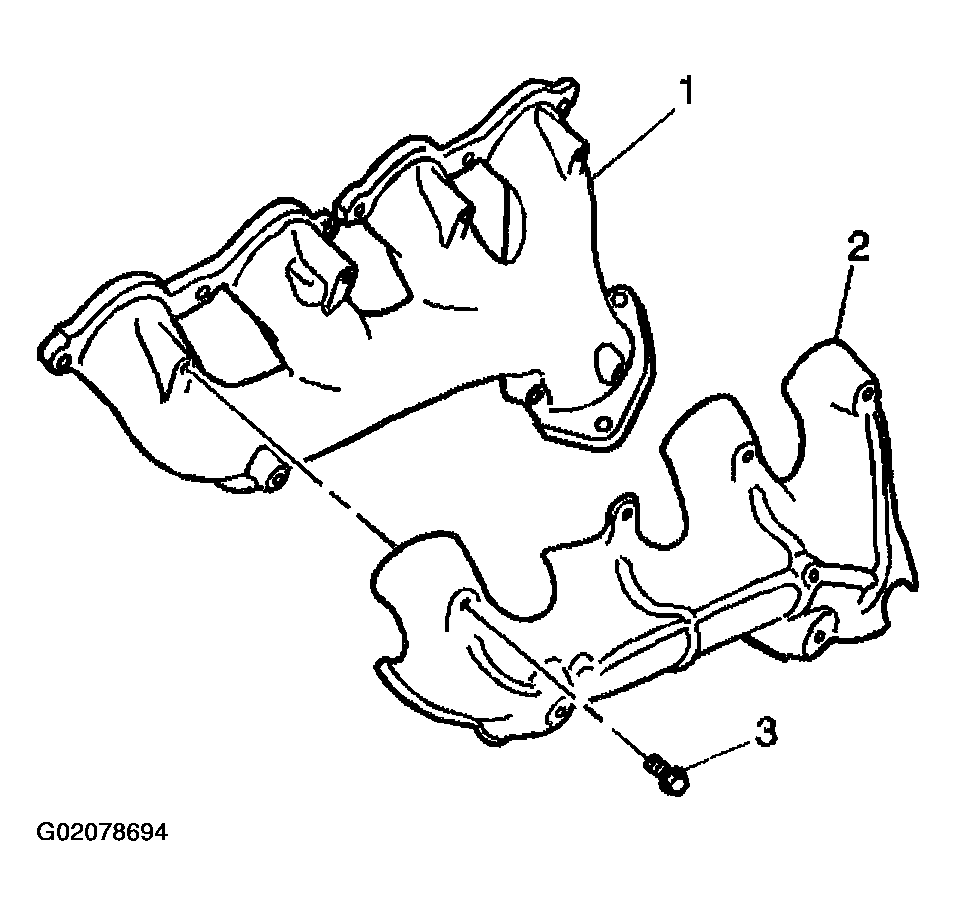

    Fig 2: Removing Heat Shield & Bolts
    G02078694Courtesy of GENERAL MOTORS CORP.
