Engine Front Cover Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover bolts.
  2. Remove the front cover and gasket.
  3. Discard the front cover gasket.

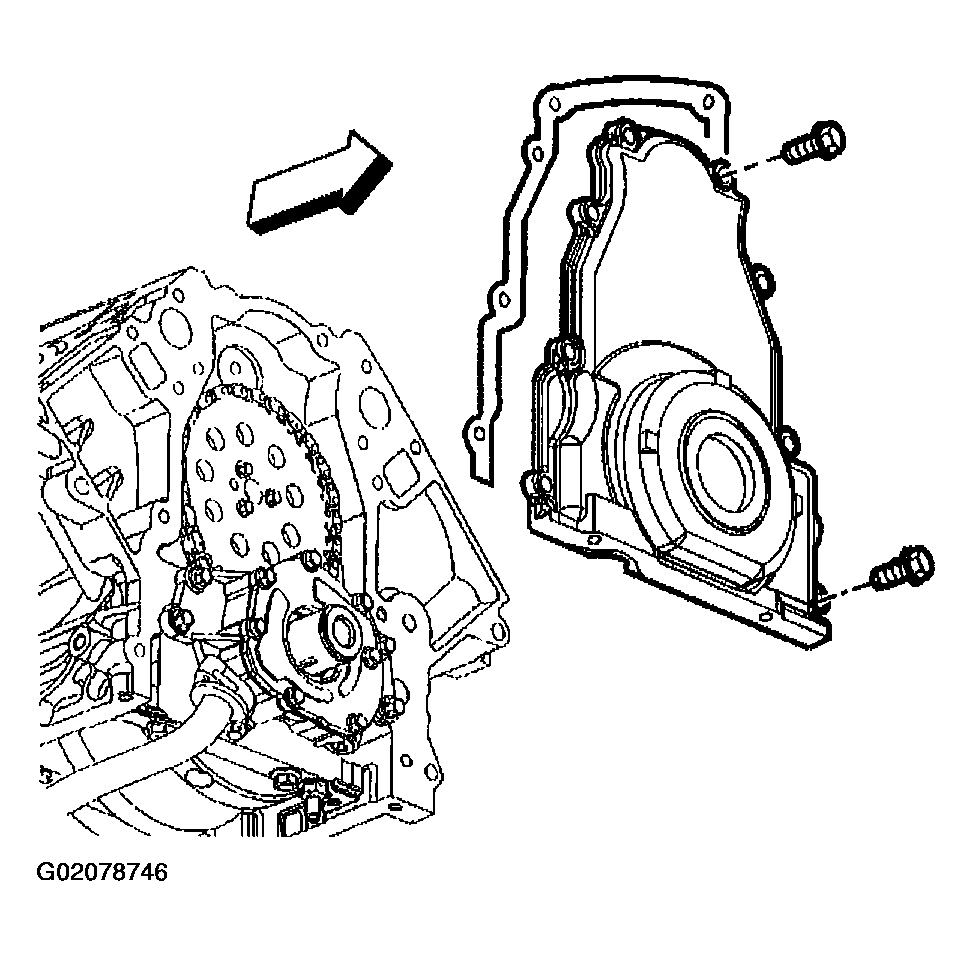

    Fig 1: Removing Front Cover Bolts, Cover & Gasket
    G02078746Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft front oil seal (1) from the cover.

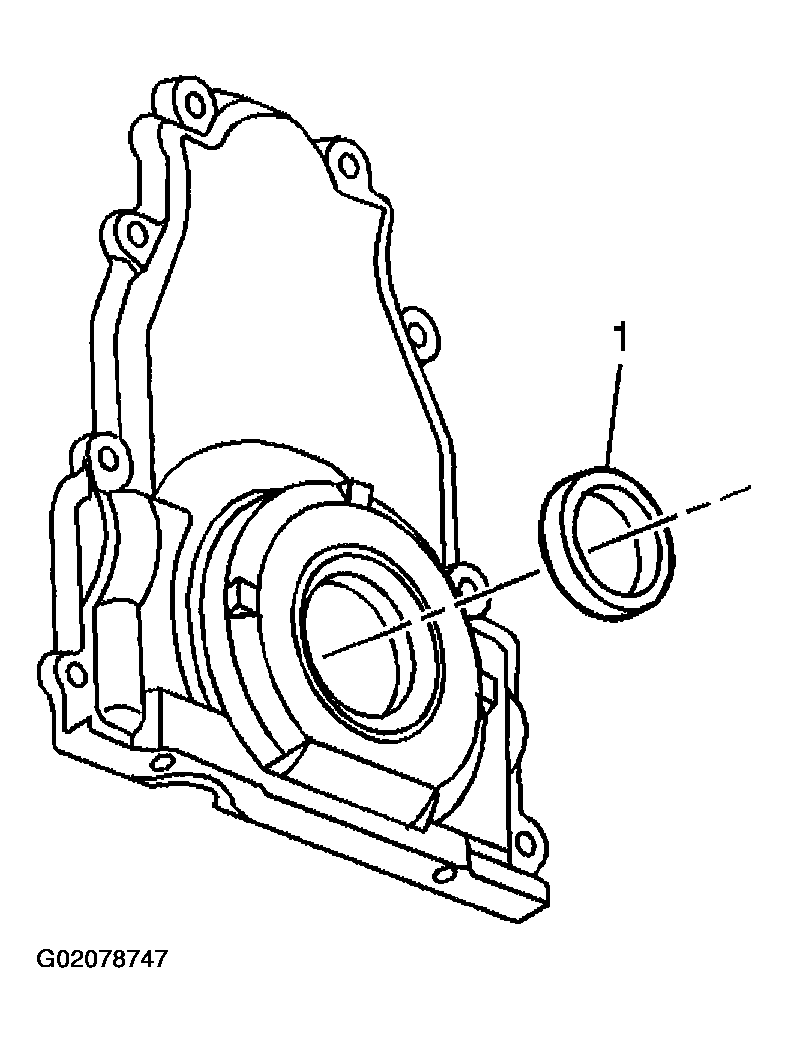

    Fig 2: Removing Crankshaft Front Oil Seal
    G02078747Courtesy of GENERAL MOTORS CORP.
