Engine Flywheel Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Important: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a 3 stage tightening process.

Remove the engine flywheel bolts.
Remove the automatic transmission engine flywheel.

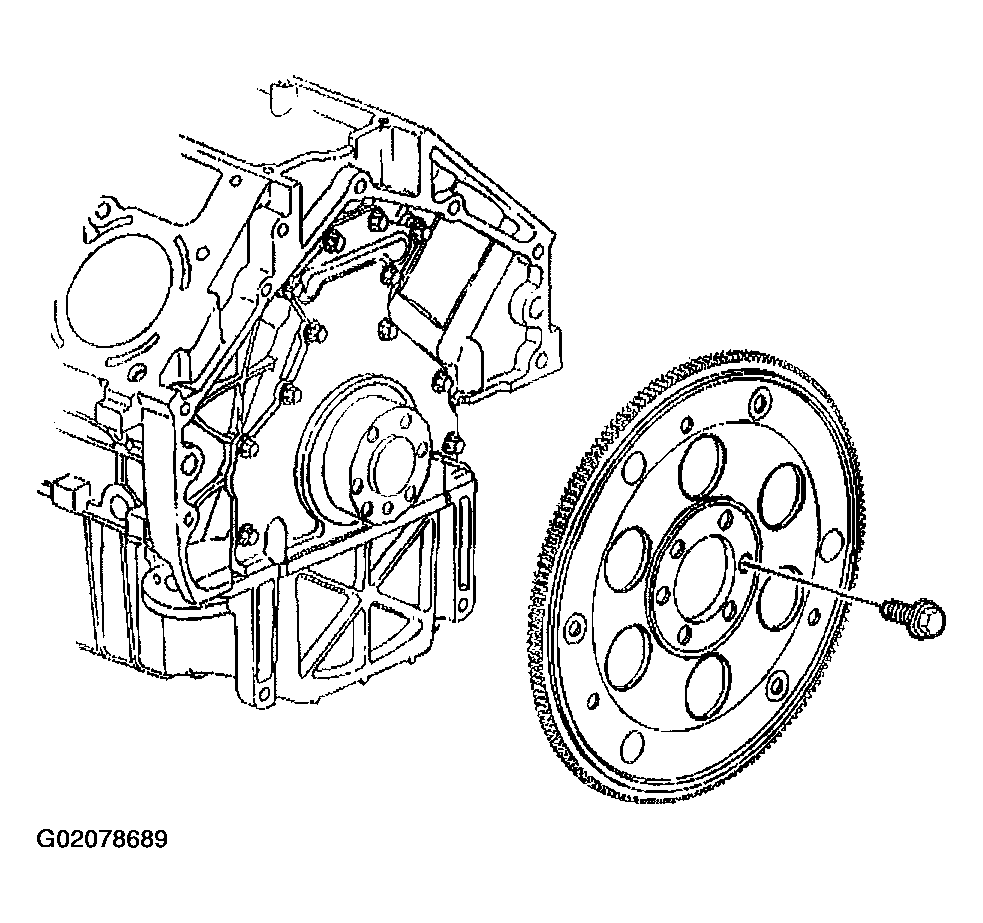

Fig 1: Removing Bolts & Engine Flywheel
Courtesy of GENERAL MOTORS CORP.
Install 2 M11x1.5 mm bolts (1) into the threaded holes of the spacer, if applicable.
Rotate the bolts clockwise to remove the spacer.

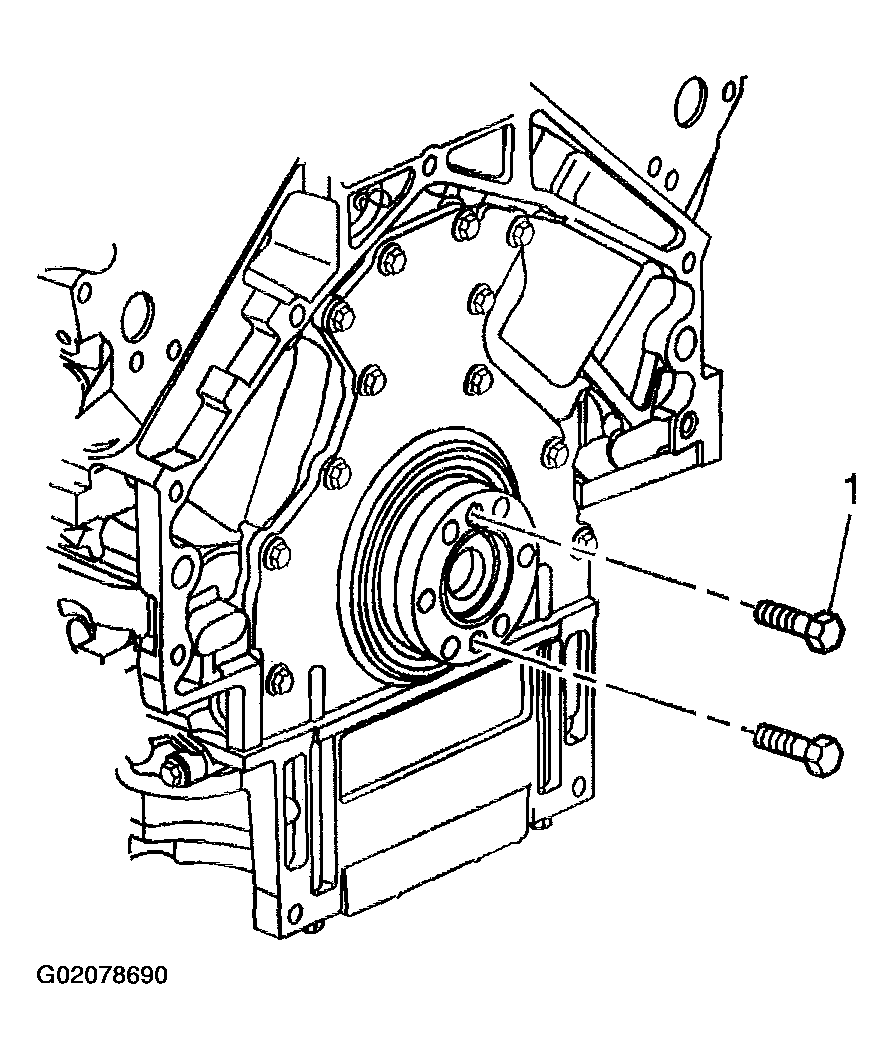

Fig 2: Installing Bolts Into Spacer Threaded Holes
Courtesy of GENERAL MOTORS CORP.
Remove the spacer from the rear of the crankshaft, if applicable.

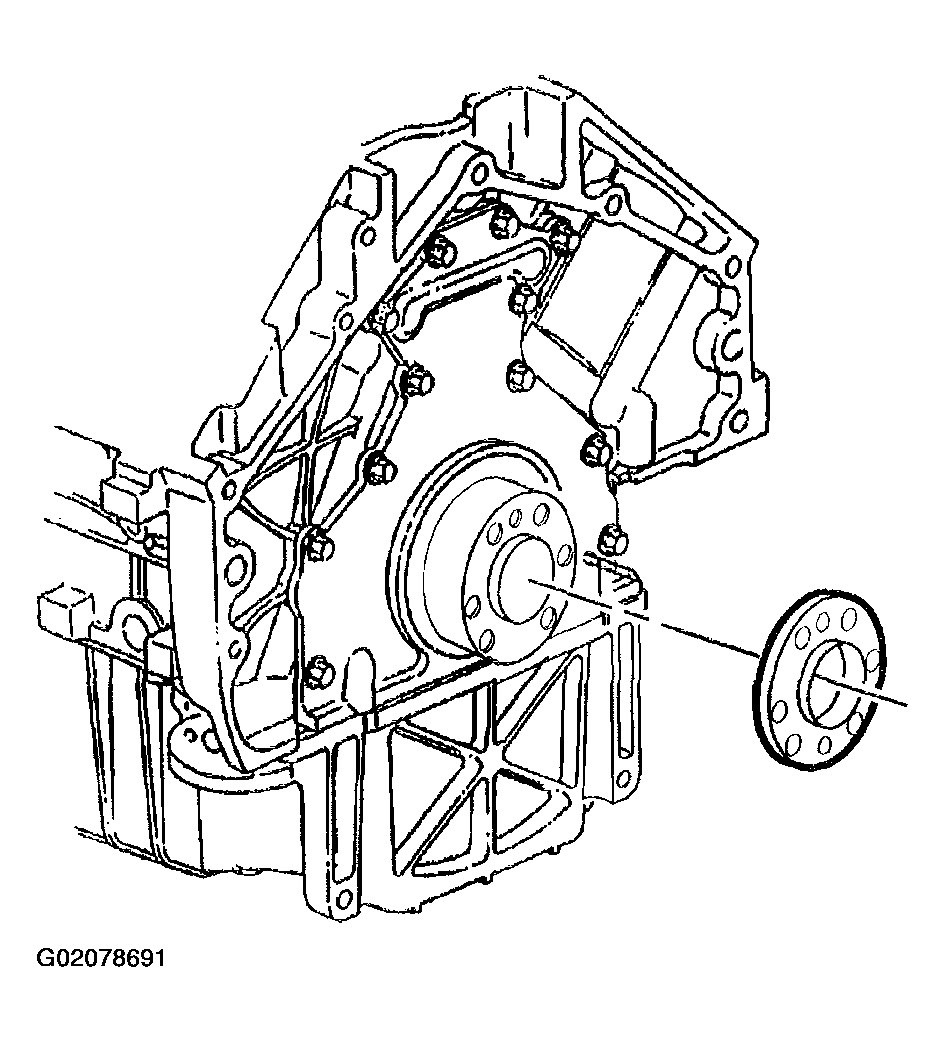

Fig 3: Removing Spacer From Rear Of Crankshaft
Courtesy of GENERAL MOTORS CORP.
