Cylinder Head Removal - Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plugs from the cylinder head.

    Important:  The cylinder head bolts can NOT be used again. Install NEW cylinder head bolts during assembly.

  2. Remove the cylinder head bolts.
    CAUTION: After removal, place the cylinder head on two wood blocks to prevent damage.
  3. Remove the cylinder head.

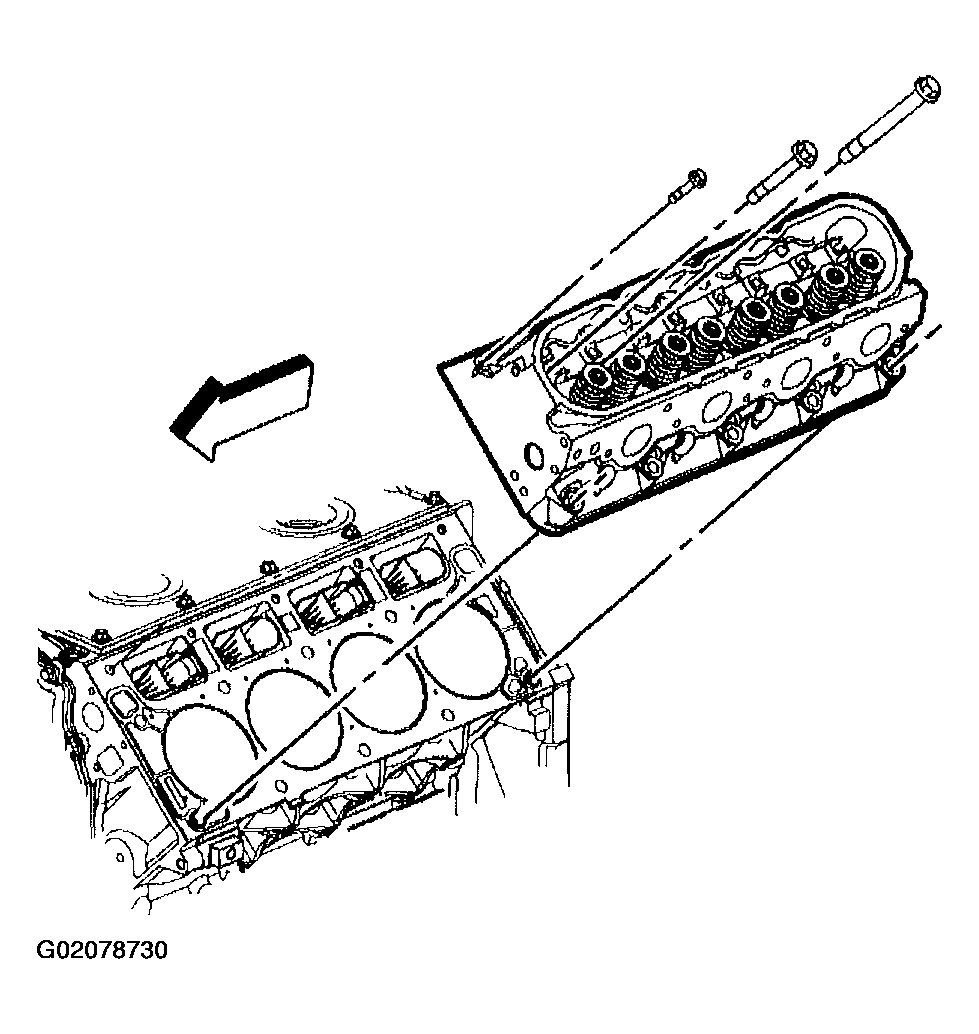

    Fig 1: Removing Bolts & Left Cylinder Head
    G02078730Courtesy of GENERAL MOTORS CORP.
  4. Remove the gasket.
  5. Discard the gasket.
  6. Discard the cylinder head bolts.

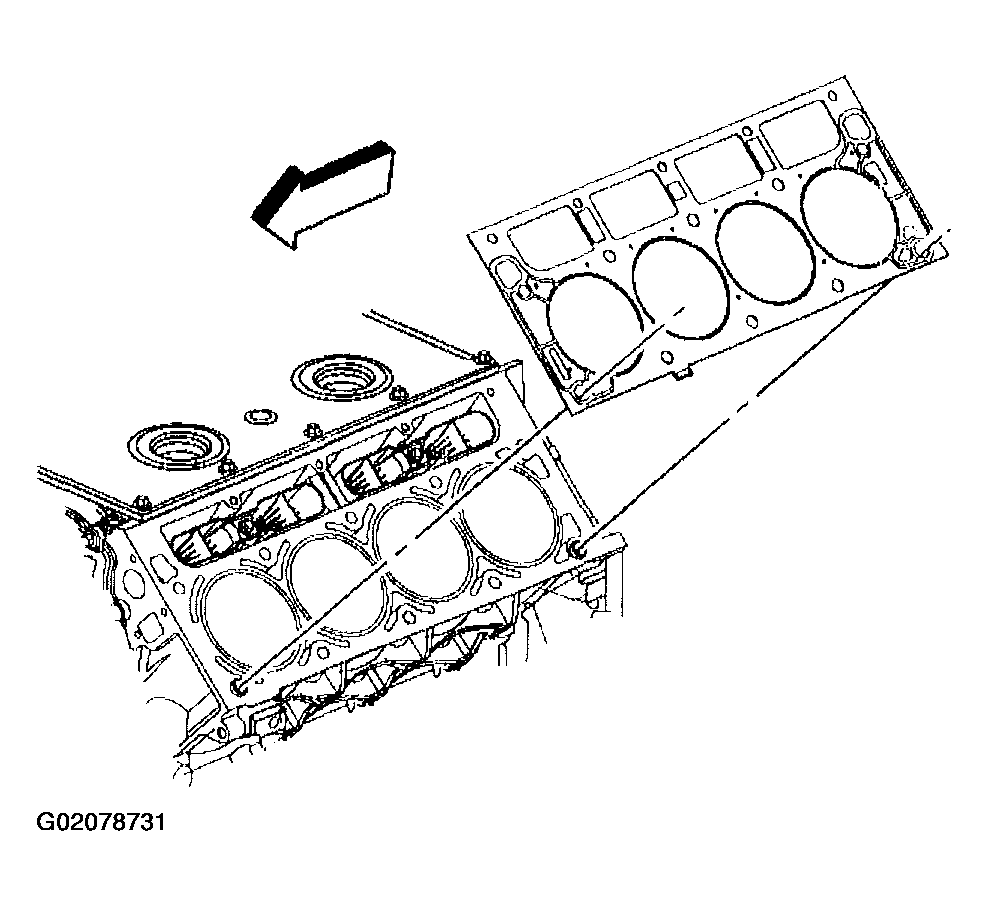

    Fig 2: Removing Gasket
    G02078731Courtesy of GENERAL MOTORS CORP.
