Cylinder Head Installation - Left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

WARNING: Wear safety glasses in order to avoid eye damage.
CAUTION: Clean all dirt, debris, and coolant from the engine block cylinder head bolt holes. Failure to remove all foreign material may result in damaged threads, improperly tightened fasteners or damage to components.

Important:

  1. Clean the engine block cylinder head bolt holes, if required.

    Thread repair tool J 42385-107 may be used to clean the threads of old threadlocking material.

  2. Spray cleaner GM P/N 12346139 (Canadian P/N 10953463), GM P/N 12377981 (Canadian P/N 10953463) or equivalent into the hole.
  3. Clean the cylinder head bolt holes with compressed air.
  4. Check the cylinder head locating pins for proper installation.

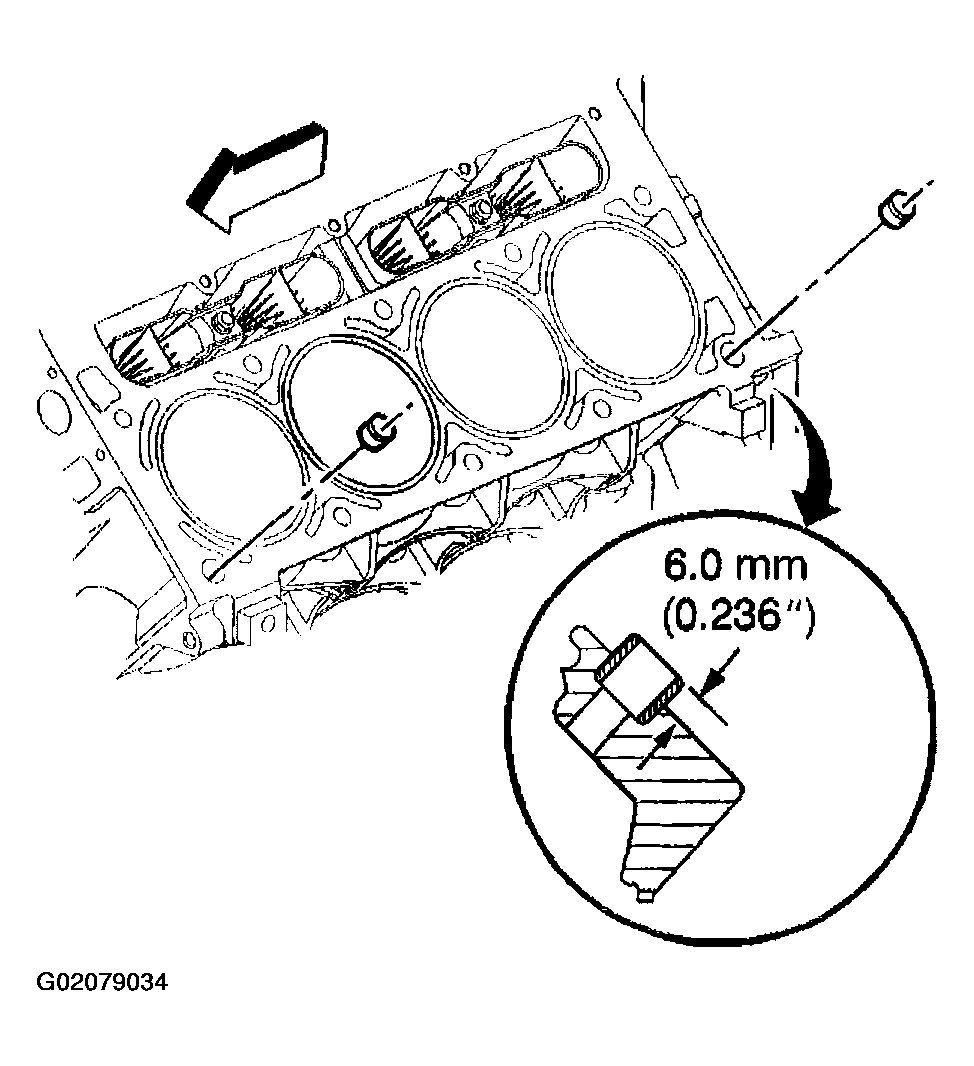

    Fig 1: Checking Cylinder Head Locating Pins For Proper Installation
    G02079034Courtesy of GENERAL MOTORS CORP.

    Important:  When properly installed, the tab on the left cylinder head gasket will be located left of center or closer to the front of the engine.

  5. Install the NEW left cylinder head gasket onto the locating pins.

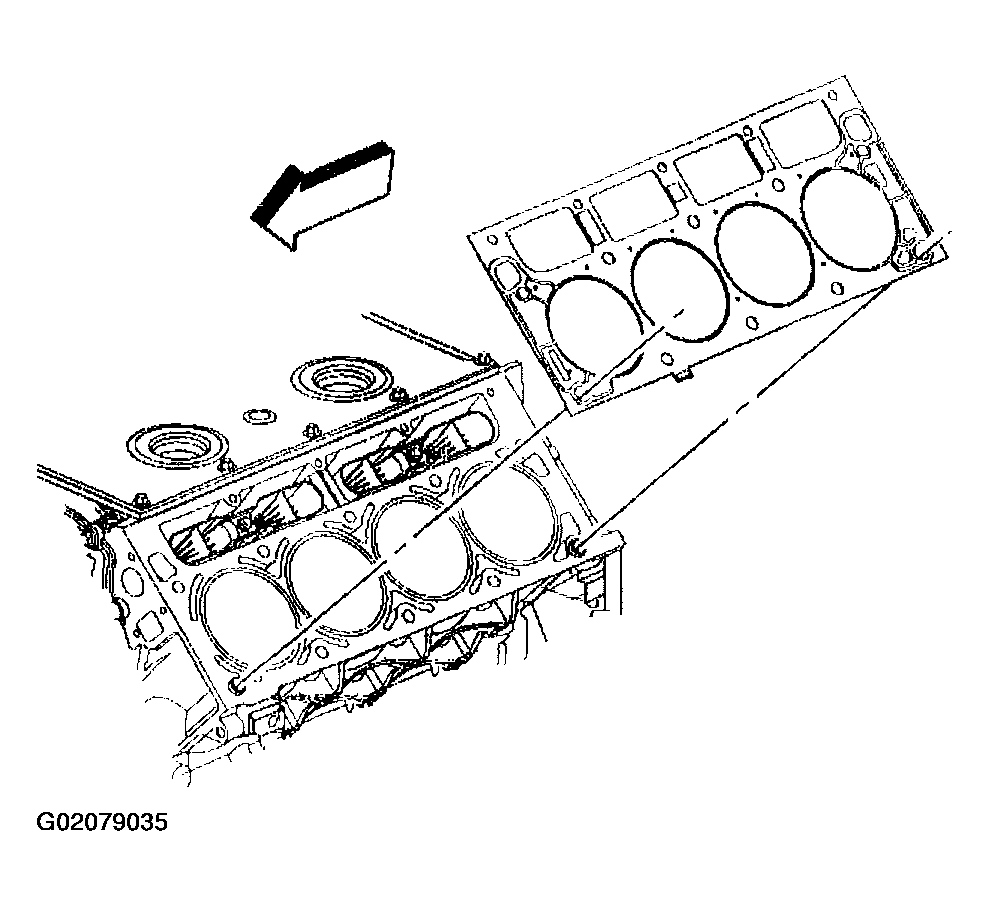

    Fig 2: Installing Left Cylinder Head Gasket
    G02079035Courtesy of GENERAL MOTORS CORP.
  6. Install the cylinder head onto the locating pins and the gasket.
  7. Install the NEW cylinder head bolts.

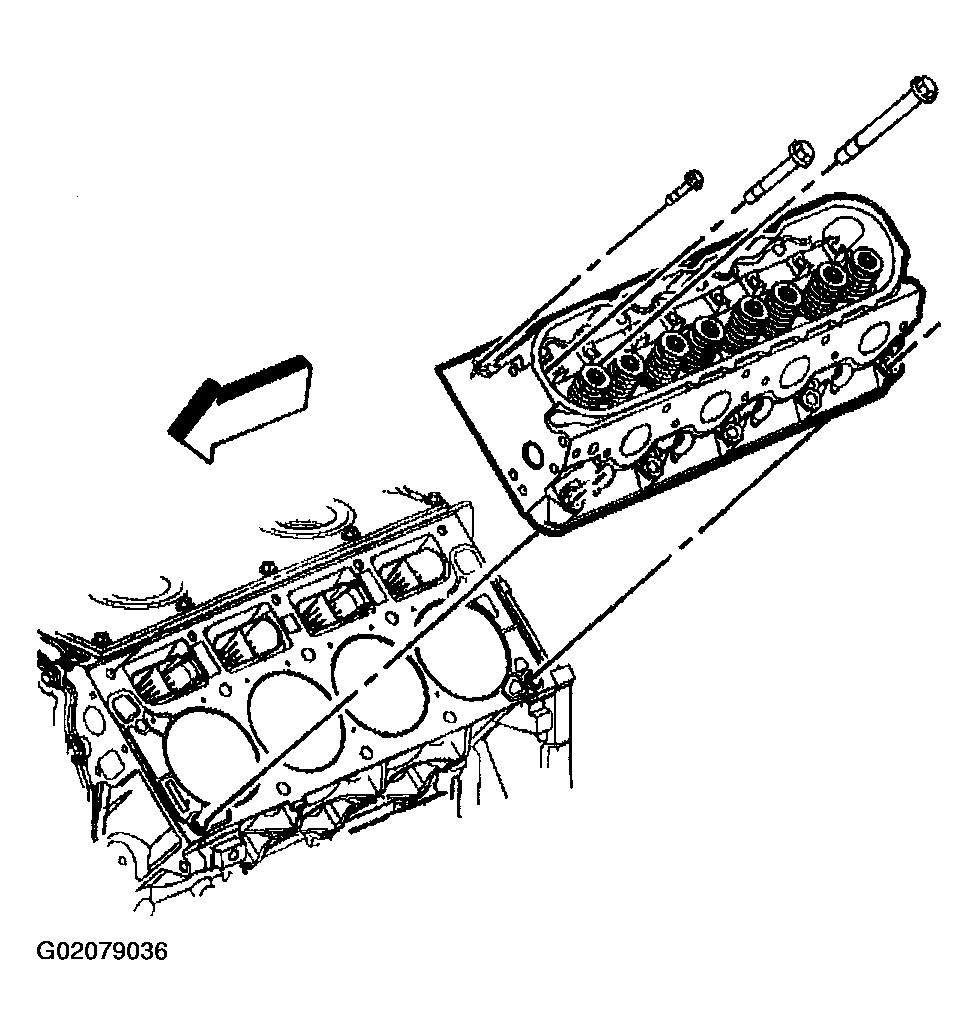

    Fig 3: Installing Cylinder Head & Bolts
    G02079036Courtesy of GENERAL MOTORS CORP.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  8. Tighten the cylinder head bolts.

    Tighten

    1. Tighten the M11 cylinder head bolts a first pass in sequence to 30 N.m (22 lb ft).
    2. Tighten the M11 cylinder head bolts a second pass in sequence to 90 degrees using the J 36660-A  .
    3. Tighten the M11 cylinder head bolts (1,2,3,4,5,6,7,8) to 90 degrees and the M11 cylinder head bolts (9 and 10) to 50 degrees a final pass in sequence to using the J 36660-A  .
    4. Tighten the M8 cylinder head bolts (11,12,13,14,15) to 30 N.m (22 lb ft). Begin with the center bolt (11) and alternating side-to-side, work outward tightening all of the bolts.
      Fig 4: Tightening Cylinder Head Bolts In Sequence
      G02079037Courtesy of GENERAL MOTORS CORP.
  9. The cylinder head gasket displacement can be verified by markings visible on the top side of the left gasket locating tab.

    Some 4.8/5.3L head gaskets may have 48 or 53 stamped onto the locating tab.

    Some 6.0L head gaskets may have 60 stamped onto the locating tab.

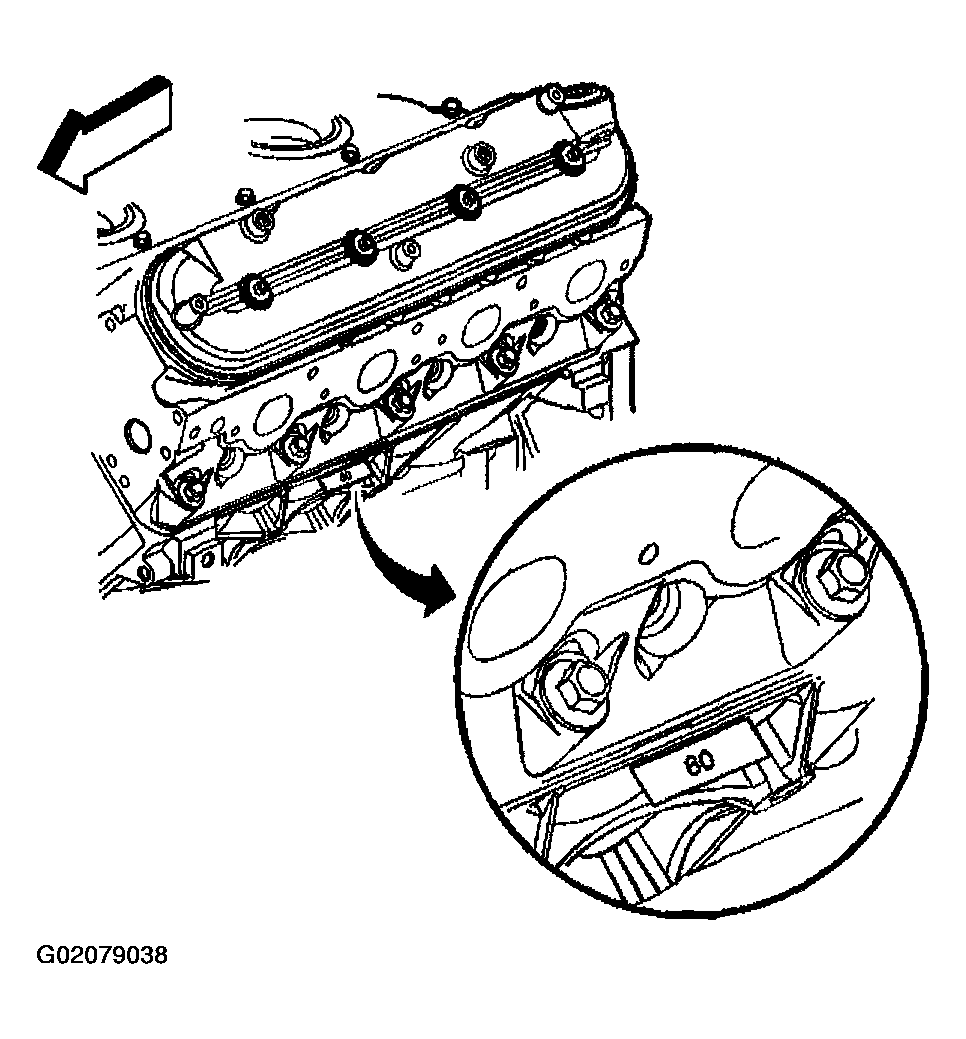

    Fig 5: Identifying Markings On Top Side Of Left Gasket Locating Tab
    G02079038Courtesy of GENERAL MOTORS CORP.
