Cleaning Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use care when handling the crankshaft. Avoid damage to the bearing surfaces or the lobes of the crankshaft position reluctor ring. Damage to the teeth of the crankshaft position reluctor ring may effect On-Board Diagnostics (OBD) II system performance.
  1. Clean the crankshaft with solvent.
  2. Thoroughly clean all oil passages and inspect for restrictions or burrs.
    WARNING: Wear safety glasses in order to avoid eye damage.
  3. Dry the crankshaft with compressed air.

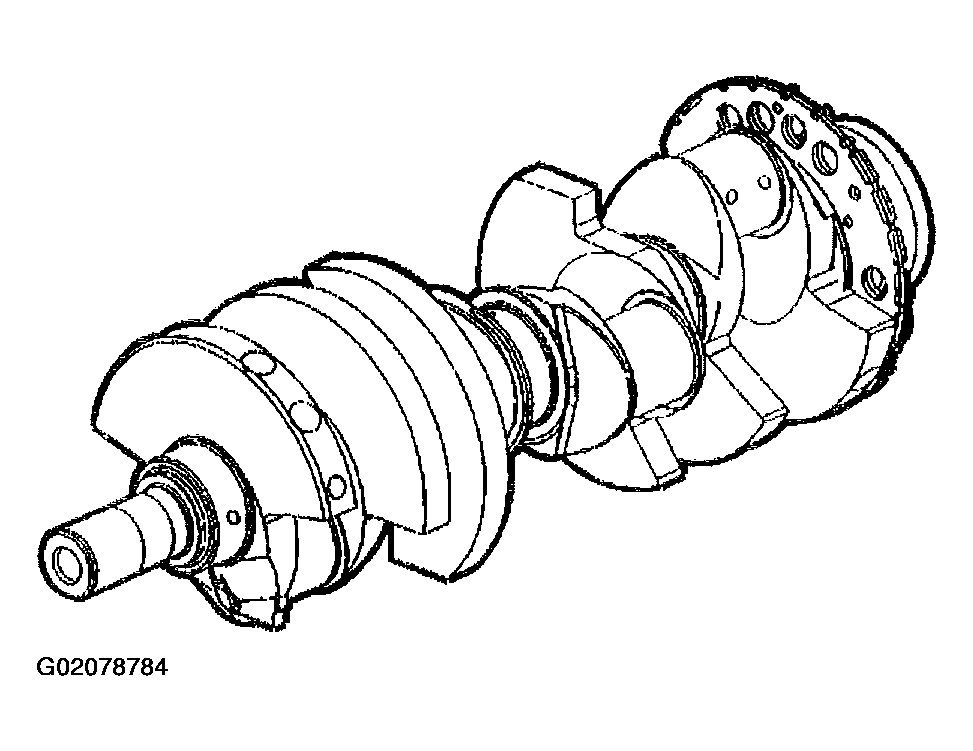

    Fig 1: Cleaning Crankshaft
    G02078784Courtesy of GENERAL MOTORS CORP.
