Lower Engine Noise, Regardless of Engine Speed

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

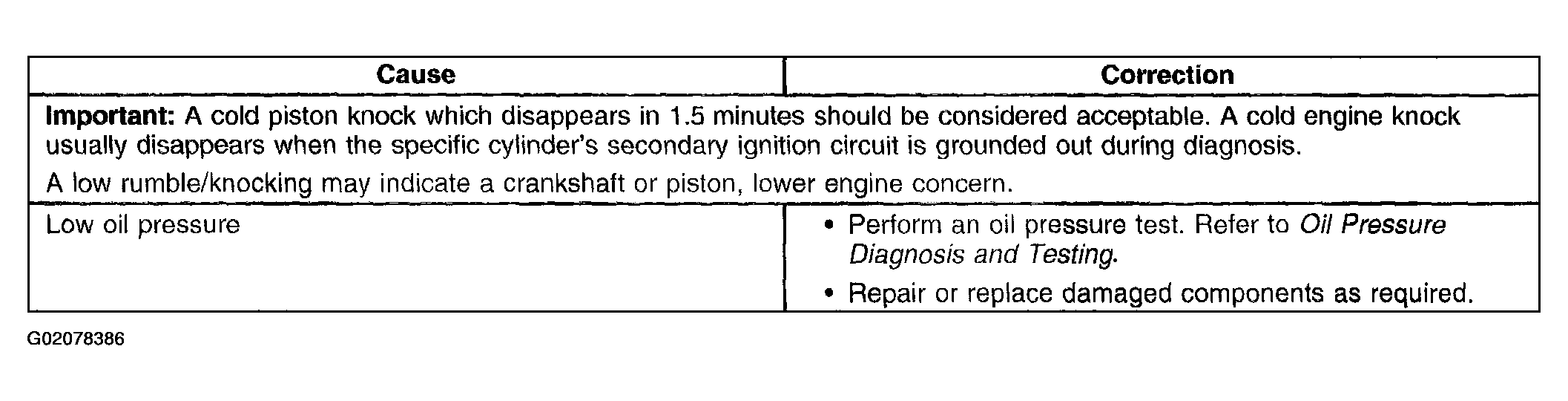

Fig 1: Lower Engine Noise, Regardless Of Engine Speed (1 Of 2)
G02078386Courtesy of GENERAL MOTORS CORP.

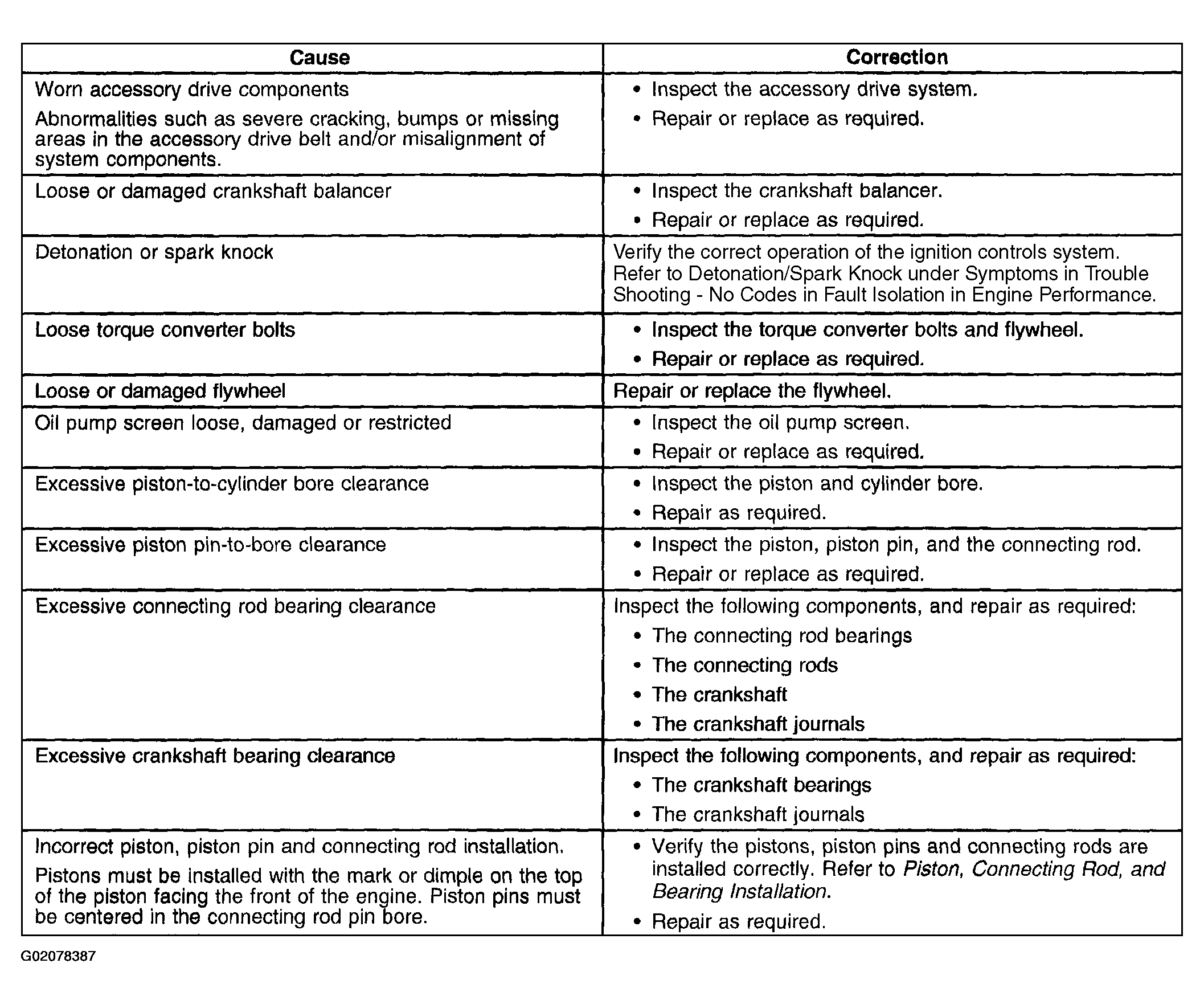

Fig 2: Lower Engine Noise, Regardless Of Engine Speed (2 Of 2)
G02078387Courtesy of GENERAL MOTORS CORP.
