Disassembled Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

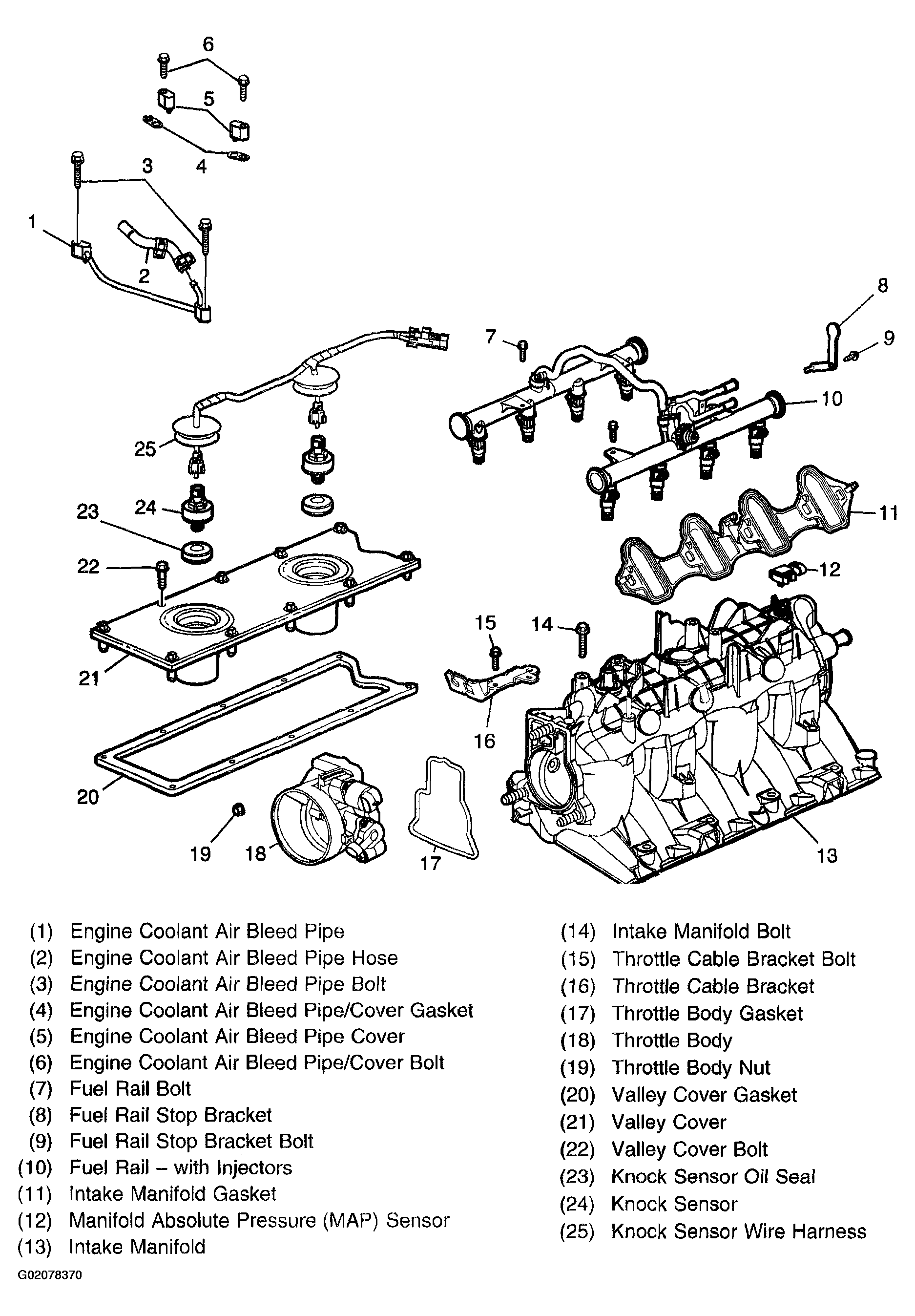

Fig 1: Intake Manifold/Upper Engine

Courtesy of GENERAL MOTORS CORP.

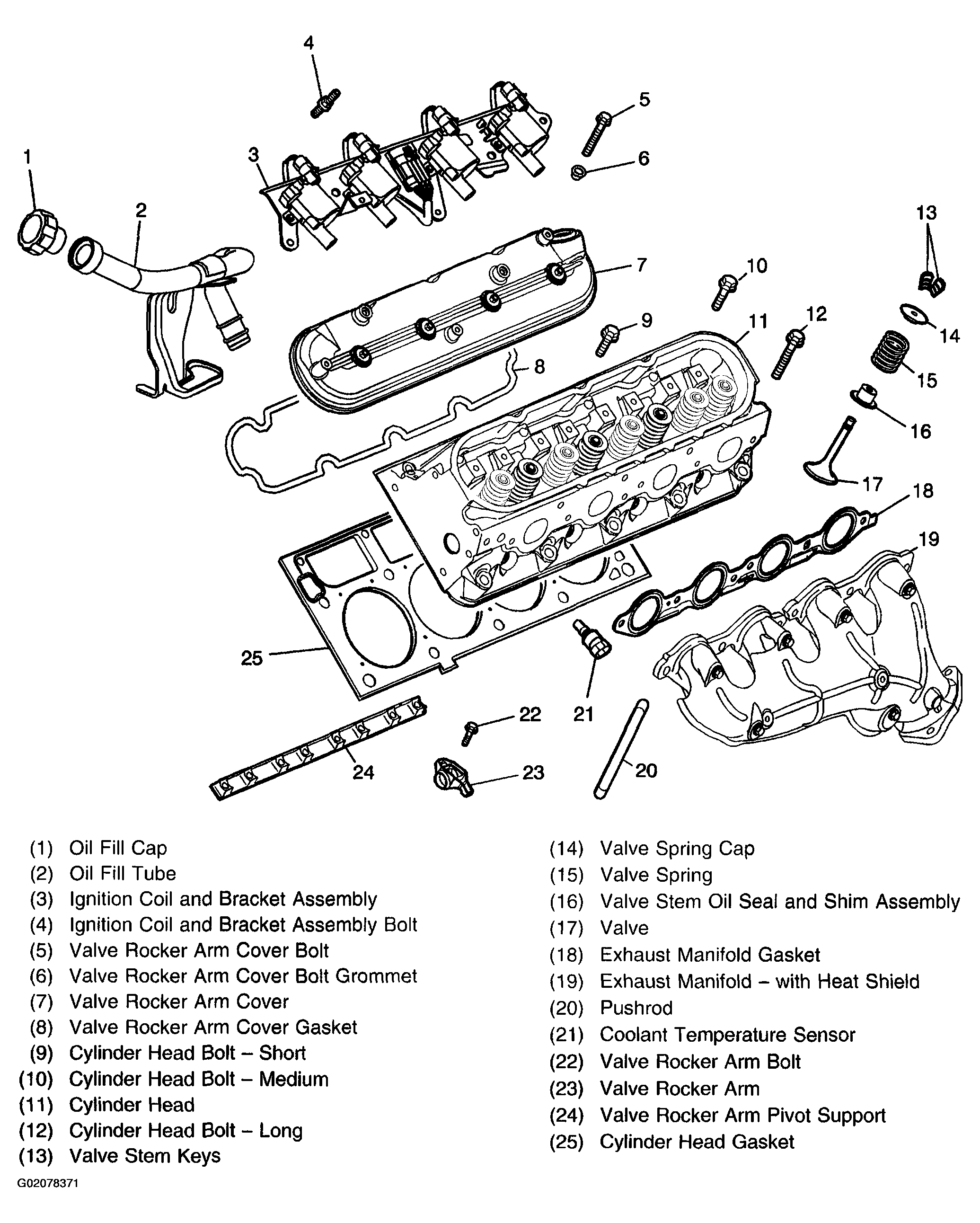

Fig 2: Cylinder Head/Upper Engine

Courtesy of GENERAL MOTORS CORP.

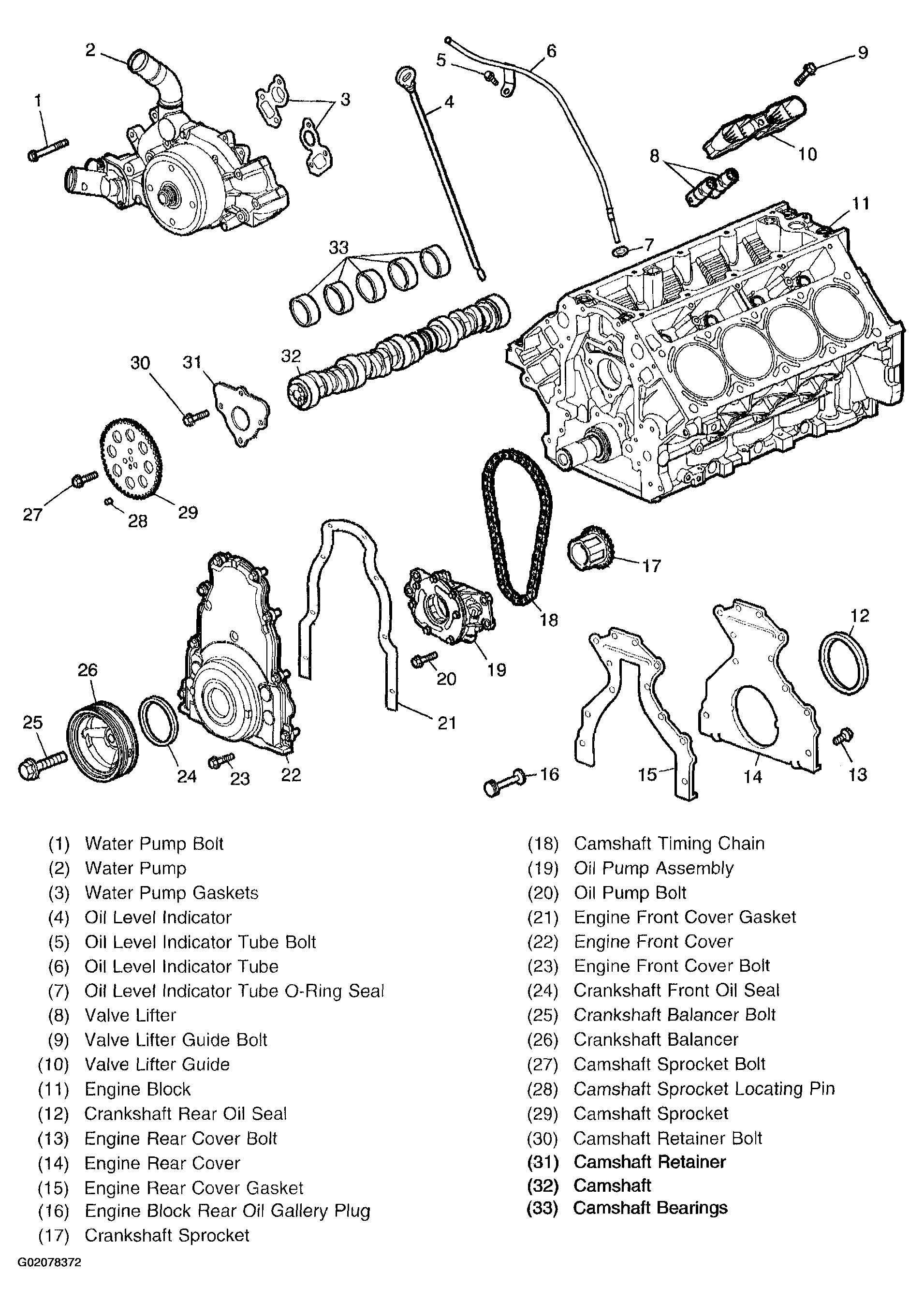

Fig 3: Lower Front Of Engine

Courtesy of GENERAL MOTORS CORP.

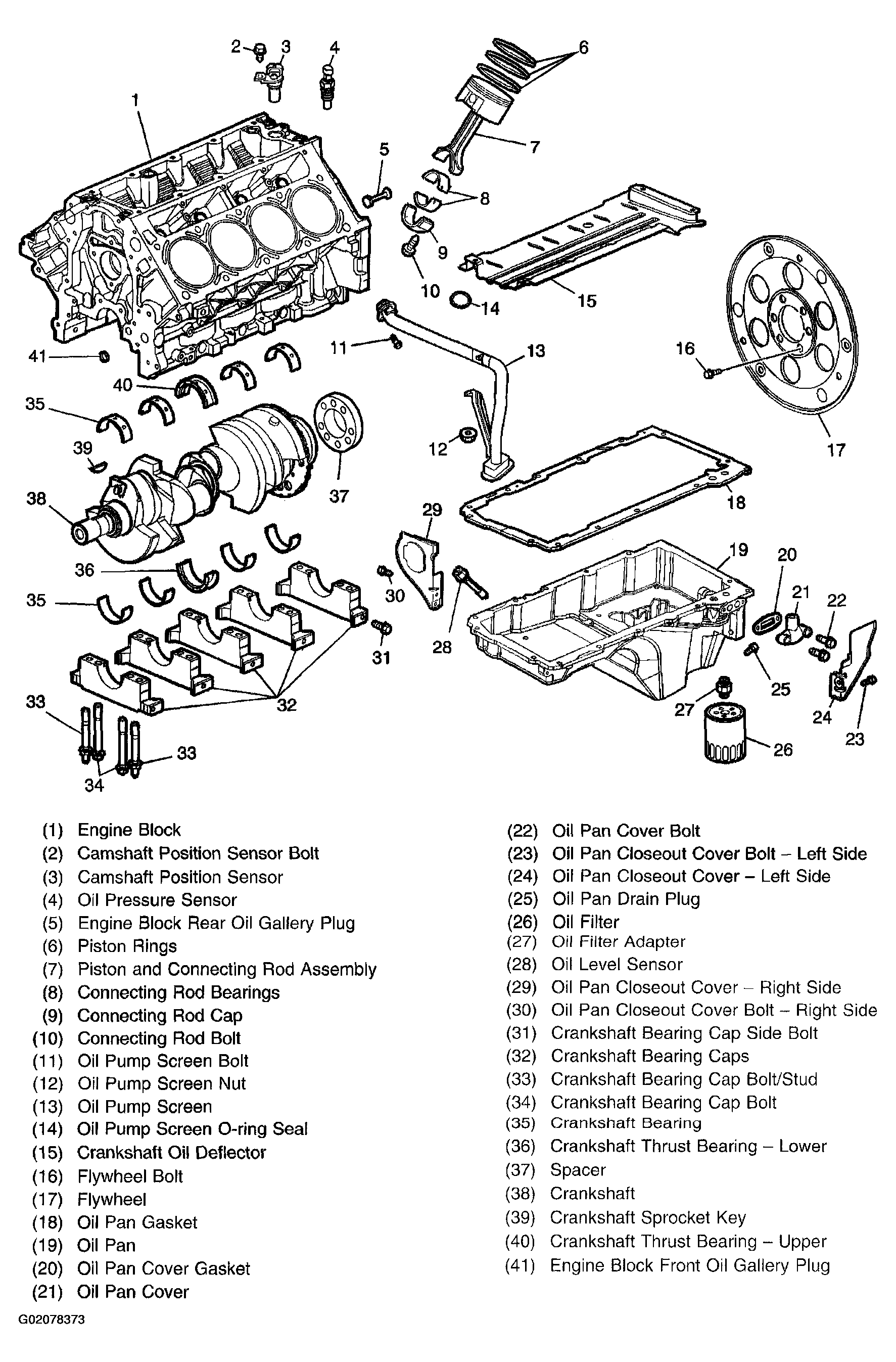

Fig 4: Lower Engine Assembly

Courtesy of GENERAL MOTORS CORP.

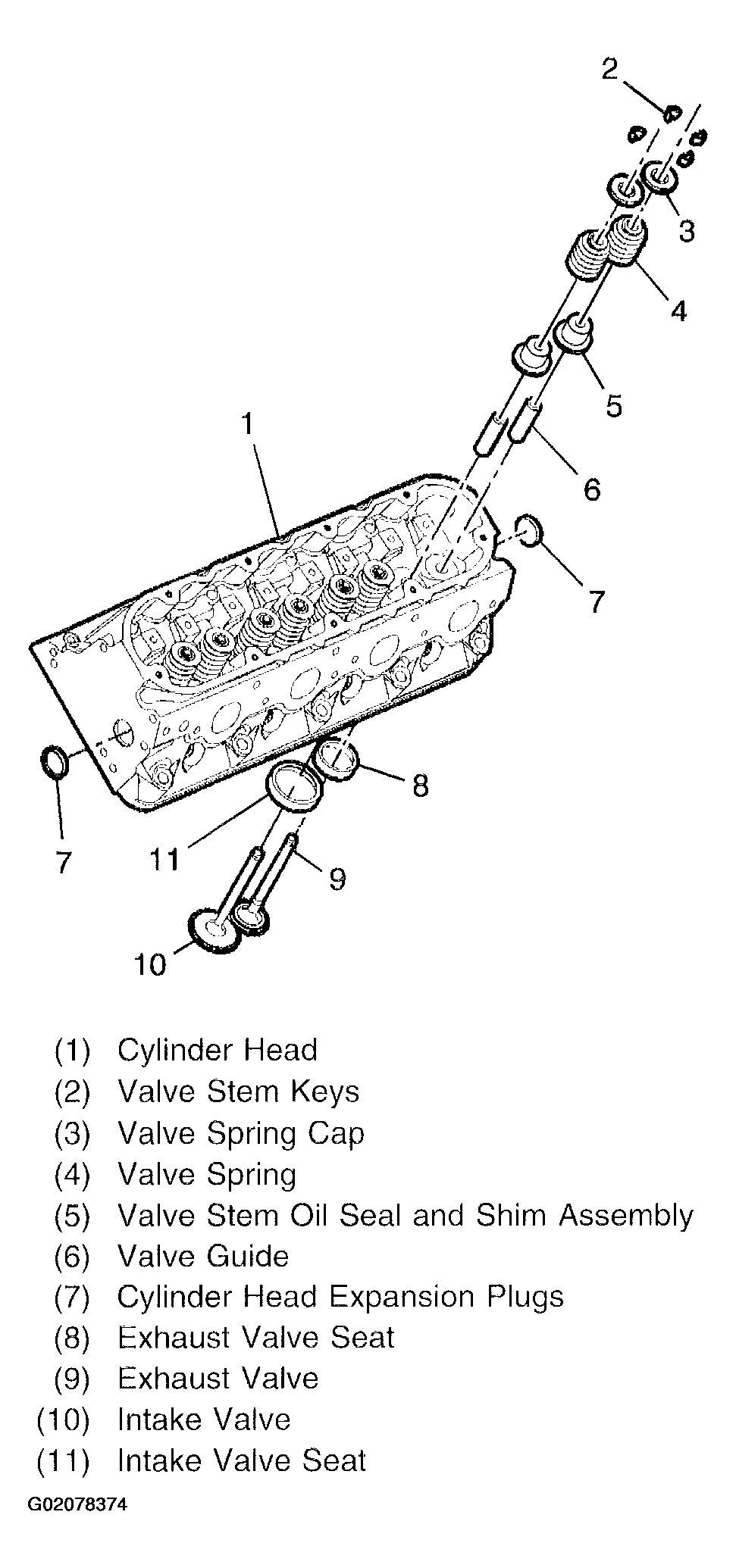

Fig 5: Cylinder Head Assembly - Aluminum

Courtesy of GENERAL MOTORS CORP.

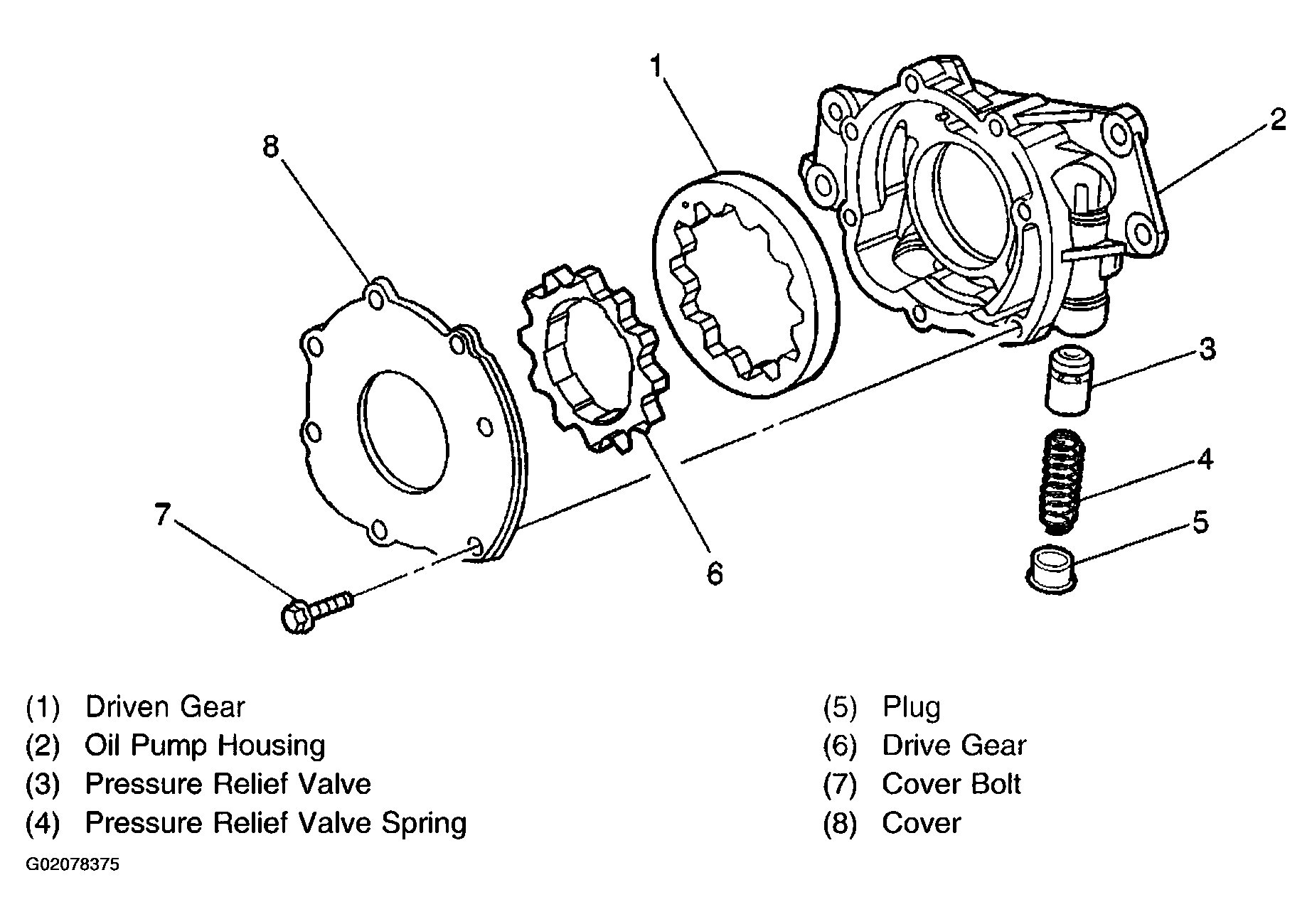

Fig 6: Oil Pump Assembly

Courtesy of GENERAL MOTORS CORP.
