Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the engine mount. Refer to Engine Mount Replacement - Left  or Engine Mount Replacement - Right  .
  3. Remove the engine mount adapter mounting bolts.
  4. Remove the engine mount adapter.

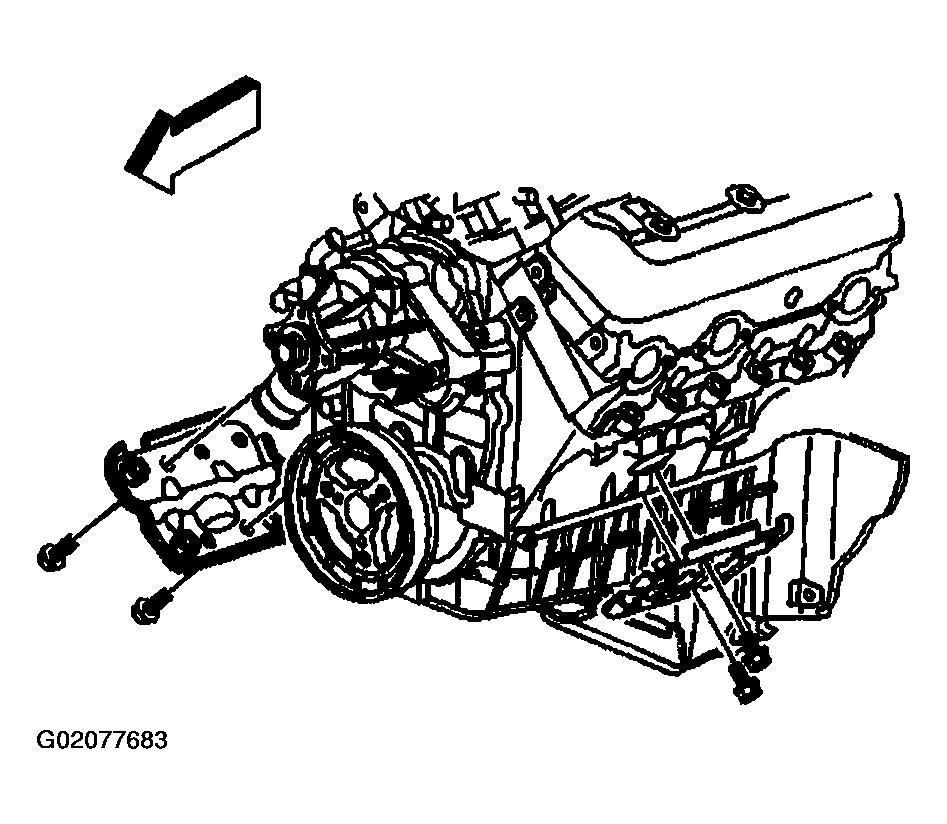

    Fig 1: Removing Engine Mount Adapter
    G02077683Courtesy of GENERAL MOTORS CORP.
