Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine oil pan. Refer to Oil Pan Replacement .
  2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement .
  3. Remove the water pump. Refer to WATER PUMP REPLACEMENT (4.3L ENGINE) or WATER PUMP REPLACEMENT (4.8L, 5.3L, AND 6.0L ENGINES) .
  4. Remove the crankshaft position (CKP) sensor. Refer to CRANKSHAFT POSITION SENSOR .
  5. Remove the crankshaft position sensor seal (O-ring).
  6. Discard the crankshaft position sensor seal (O-ring).

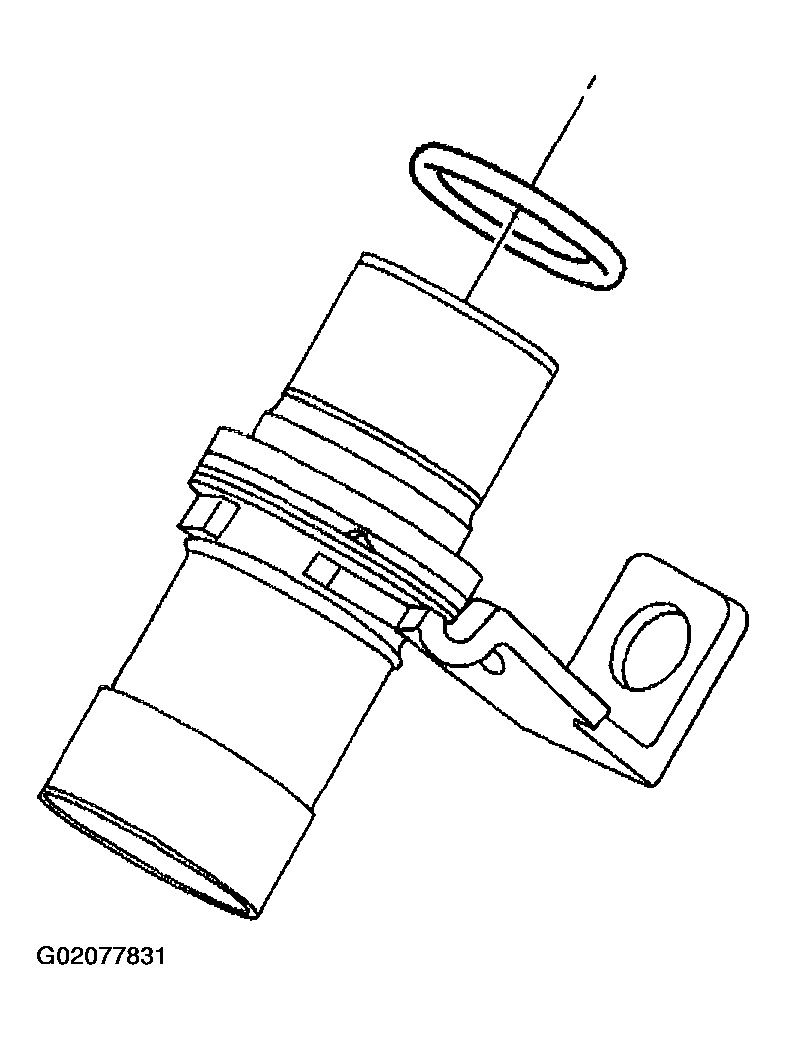

    Fig 1: Removing Crankshaft Position Sensor Seal
    G02077831Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine front cover bolts.

    Important:  After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.

  8. Remove the engine front cover.
  9. Discard the engine front cover.
  10. Clean all sealing surfaces.

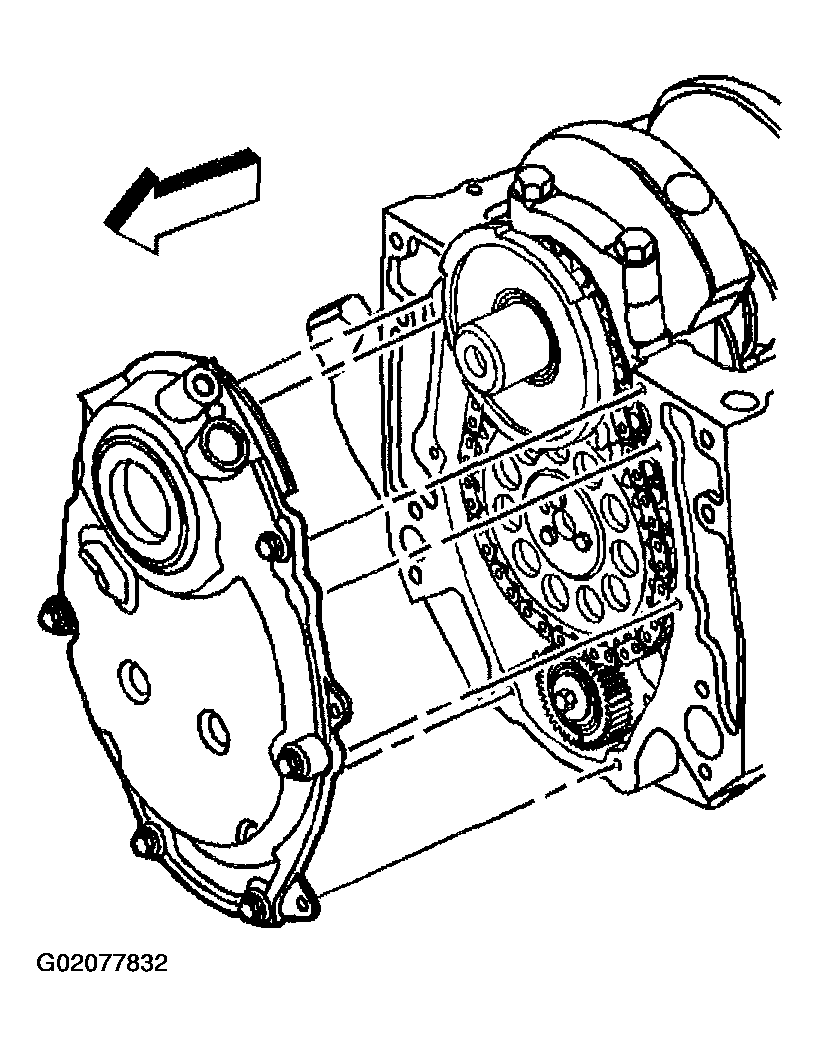

    Fig 2: Removing Engine Front Cover
    G02077832Courtesy of GENERAL MOTORS CORP.
