Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Remove the belt idler pulley bolt.
  4. Remove the belt idler pulley from the power steering pump mounting bracket.

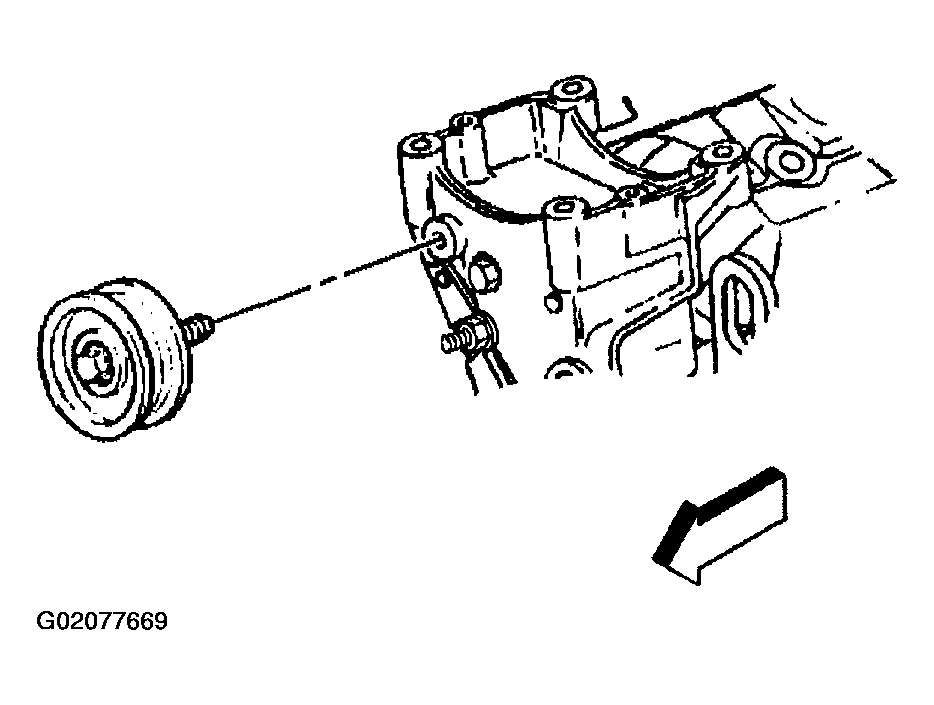

    Fig 1: Removing Drive Belt Idler Pulley (Without Air Conditioning)
    G02077669Courtesy of GENERAL MOTORS CORP.
