Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: Mark, sort, and organize all the components for assembly.

Remove the valve rocker arms.

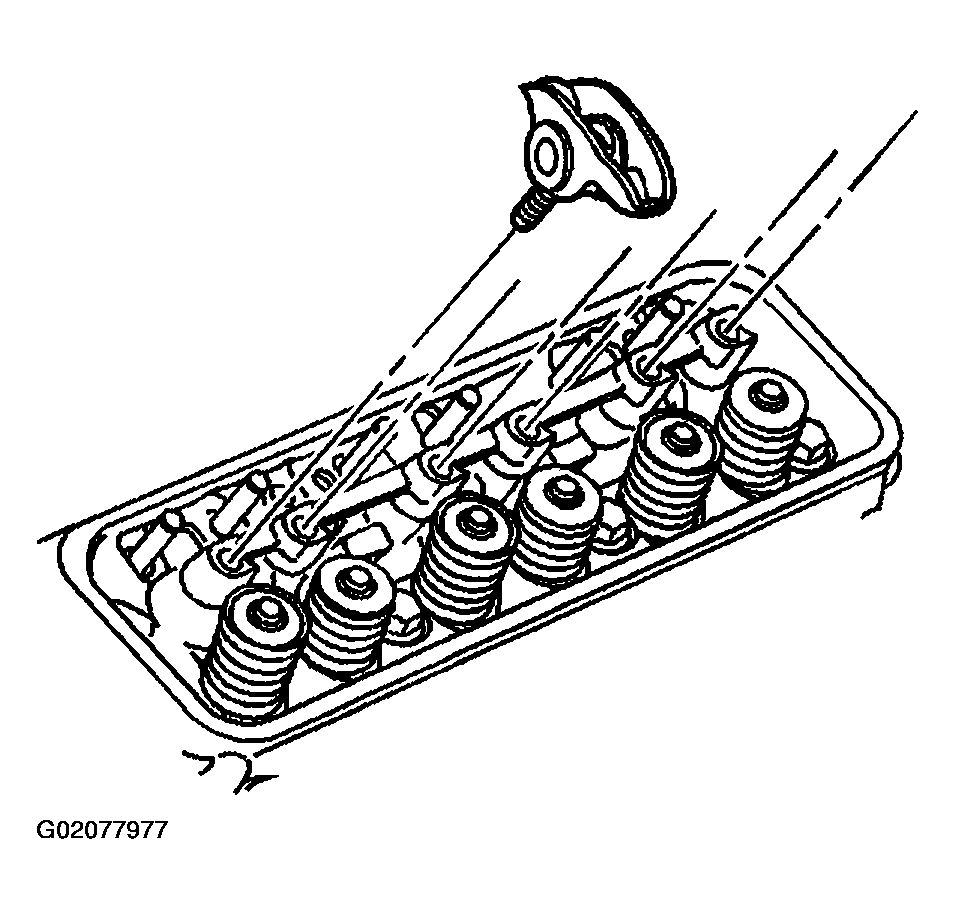

Fig 1: Removing Valve Rocker Arms
Courtesy of GENERAL MOTORS CORP.
Remove the valve rocker arm supports.

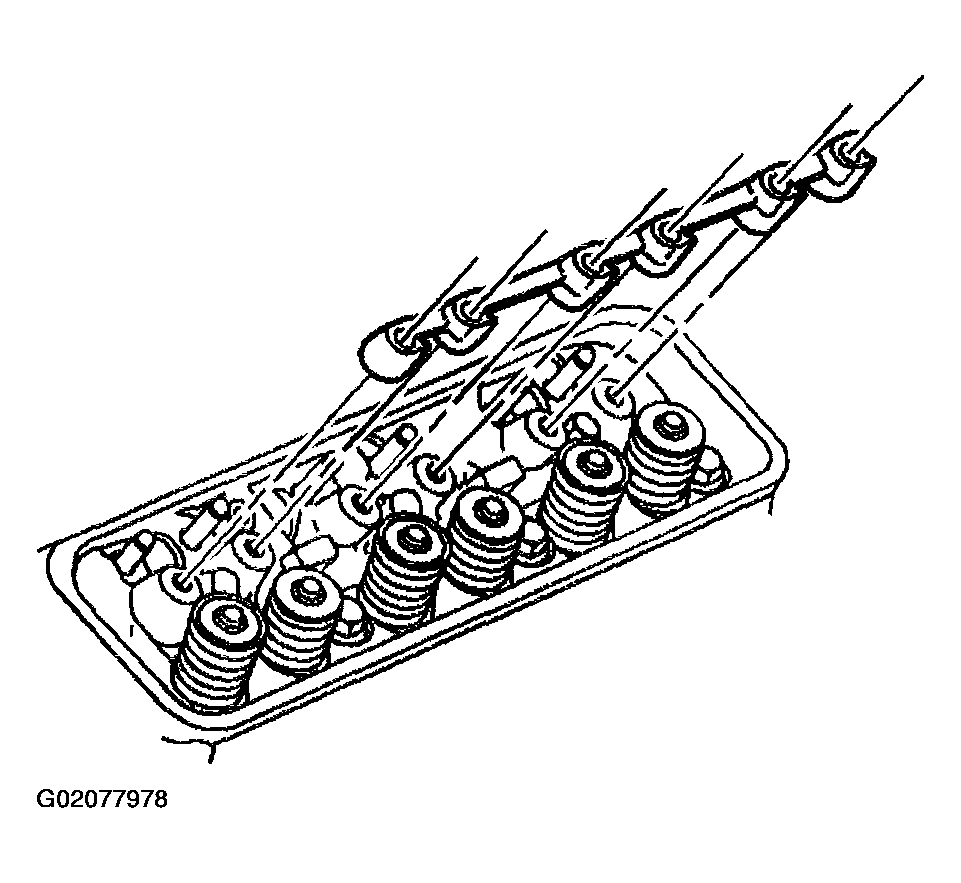

Fig 2: Removing Valve Rocker Arm Supports
Courtesy of GENERAL MOTORS CORP.
Remove the valve pushrods.

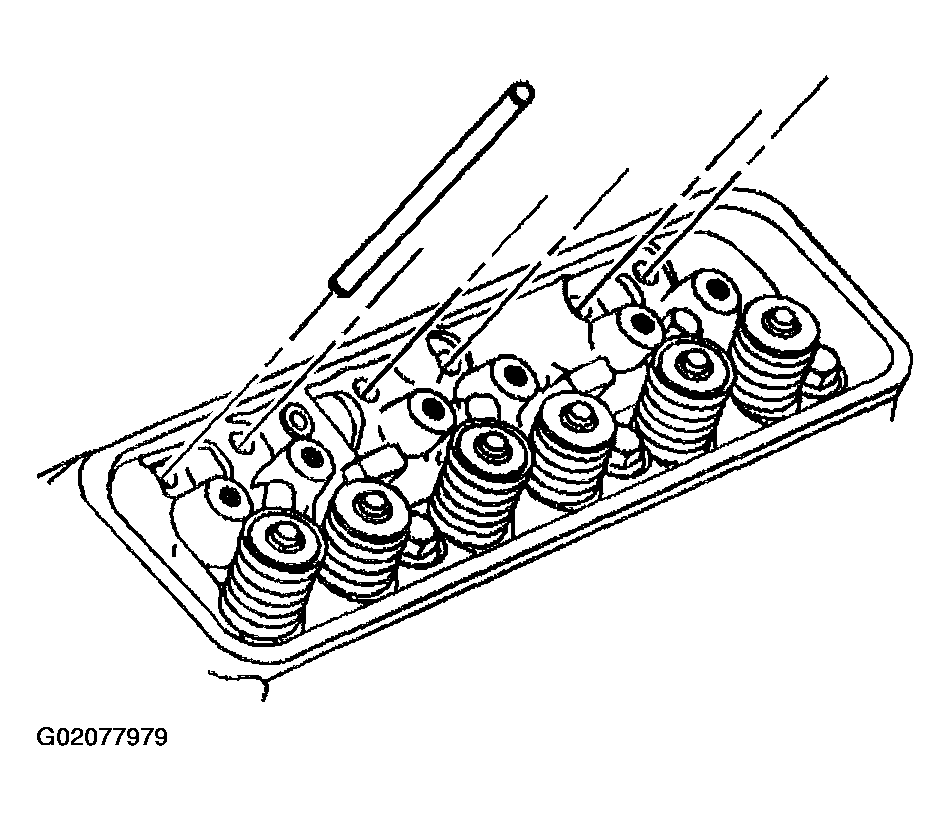

Fig 3: Removing Valve Pushrods
Courtesy of GENERAL MOTORS CORP.
