Piston and Connecting Rod Disassemble

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 24086-C Piston Pin Remover/Installer

WARNING: Wear safety glasses in order to avoid eye damage.

Remove the piston rings from the pistons.

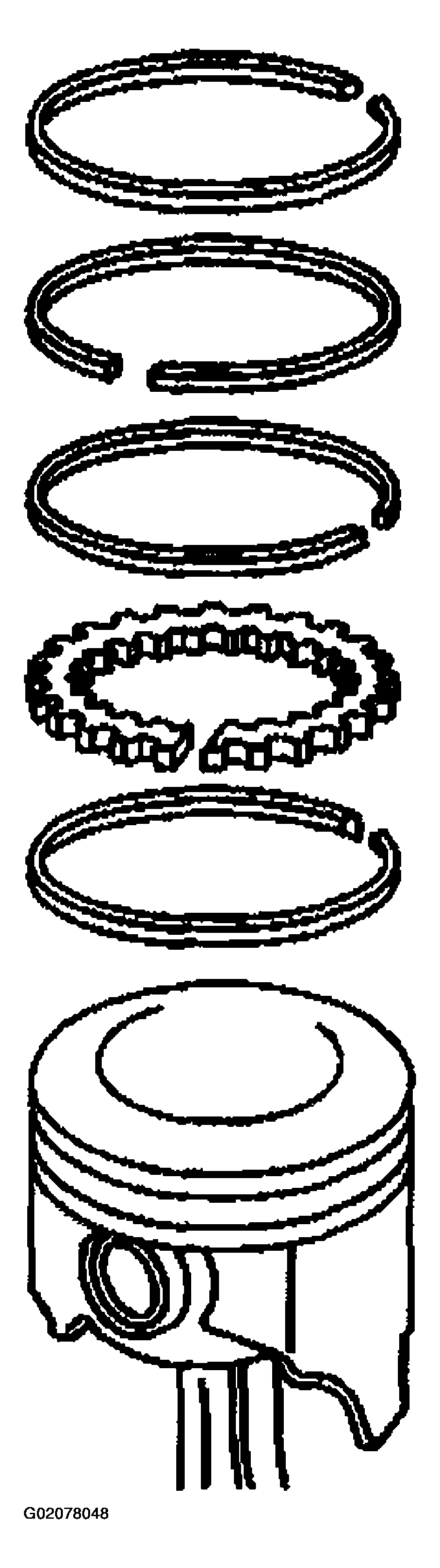

Fig 1: Removing Piston Rings
Courtesy of GENERAL MOTORS CORP.
Press the piston pin from the connecting rod using the J 24086-C .
The piston pin has an interference fit into the connecting rod, and is full floating in the piston.

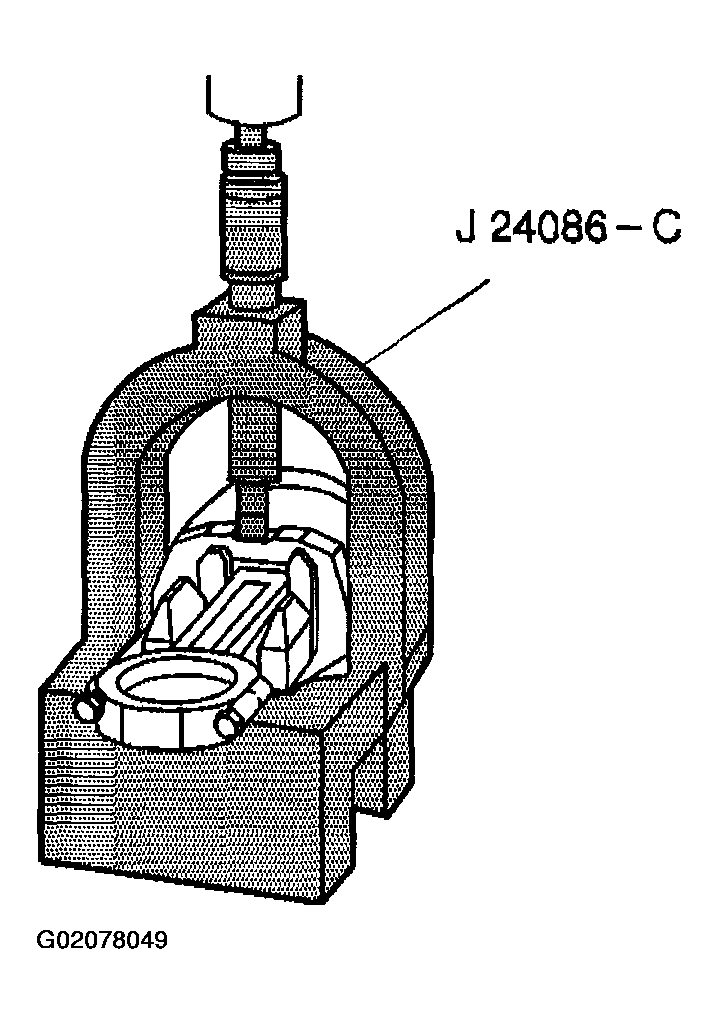

Fig 2: Pressing Piston Ring From Connecting Rod Using J 24086-C
Courtesy of GENERAL MOTORS CORP.
Mark, separate, and organize the parts for assembly.

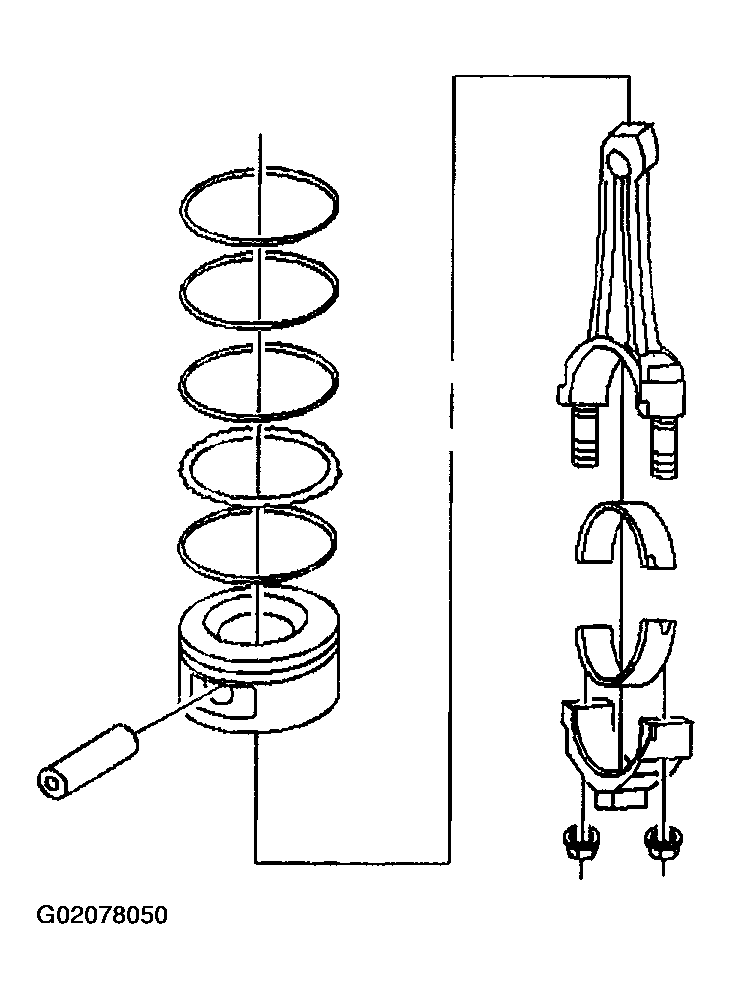

Fig 3: Marking, Separating & Organizing Parts For Assembly
Courtesy of GENERAL MOTORS CORP.
