Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the oil level indicator tube, if required.

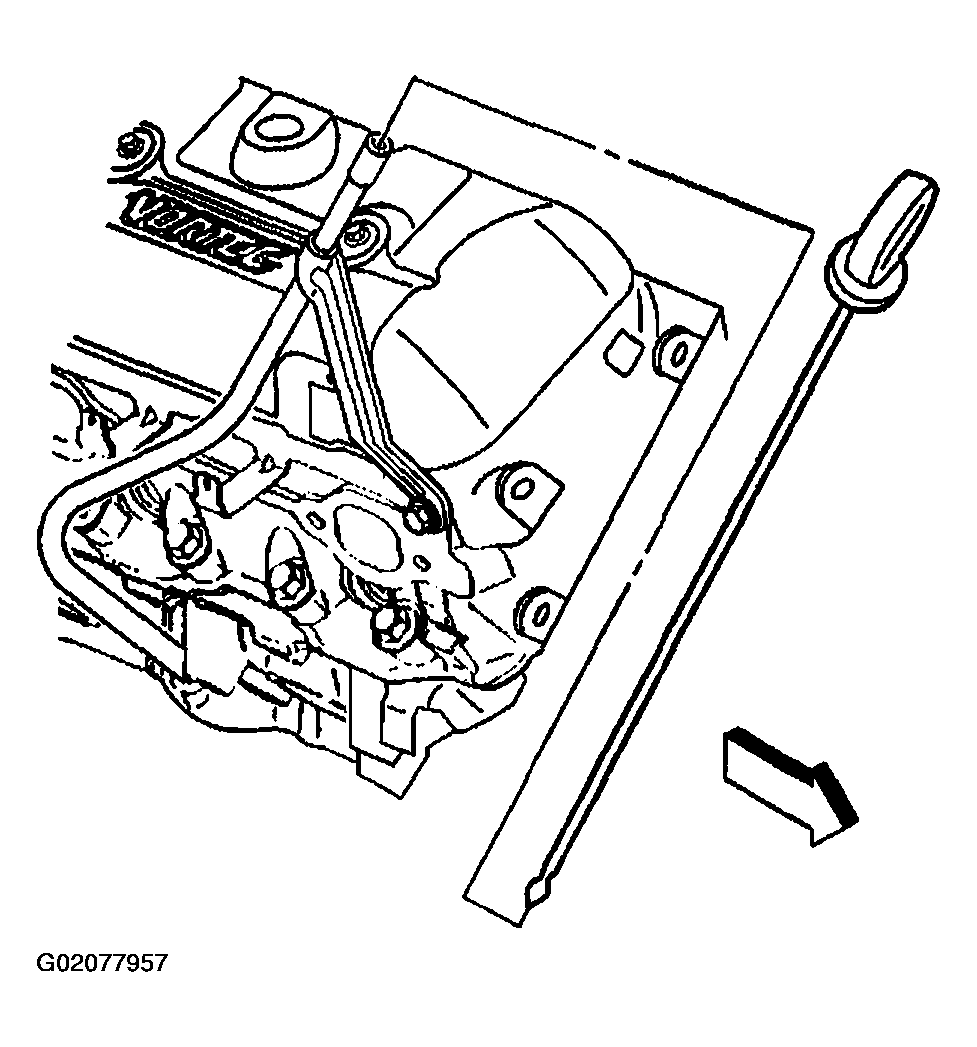

    Fig 1: Removing Oil Level Indicator
    G02077957Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.

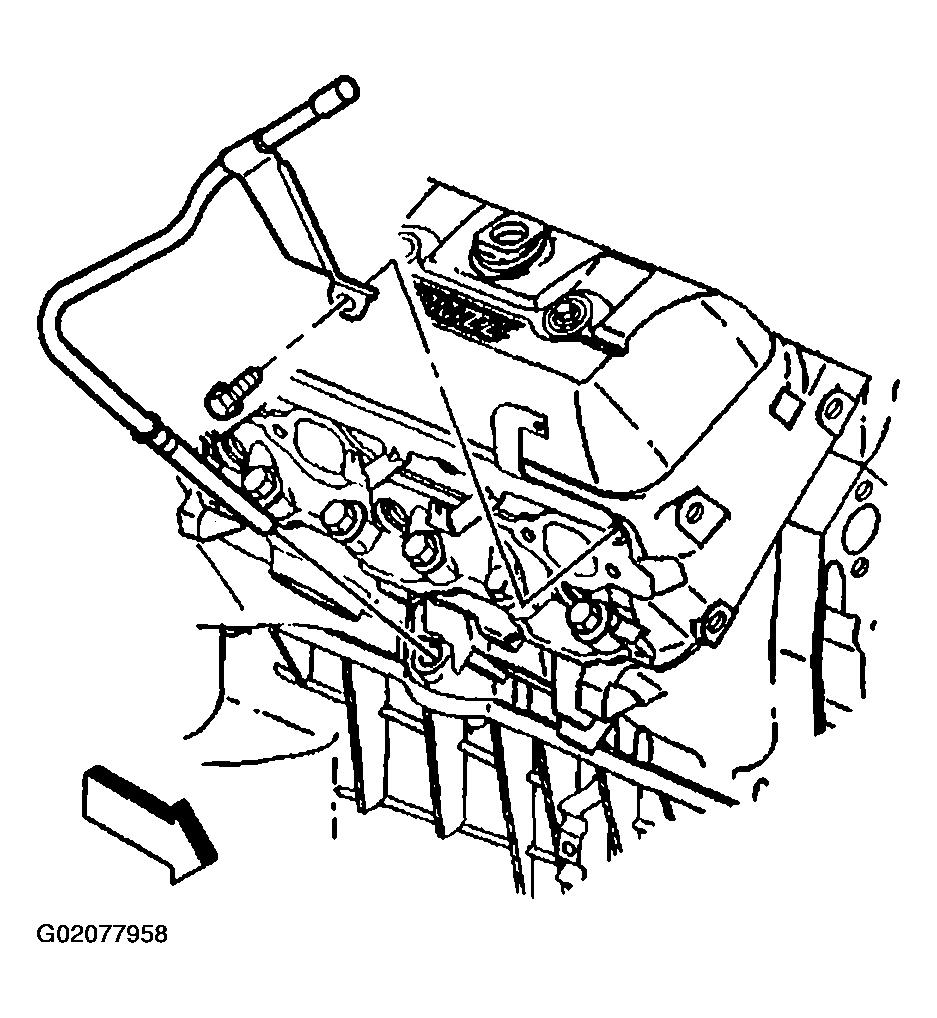

    Fig 2: Removing Oil Level Indicator Tube
    G02077958Courtesy of GENERAL MOTORS CORP.
