Crankshaft Balancer Removal

Tools Required

J 23523-F  Balancer Remover and Installer

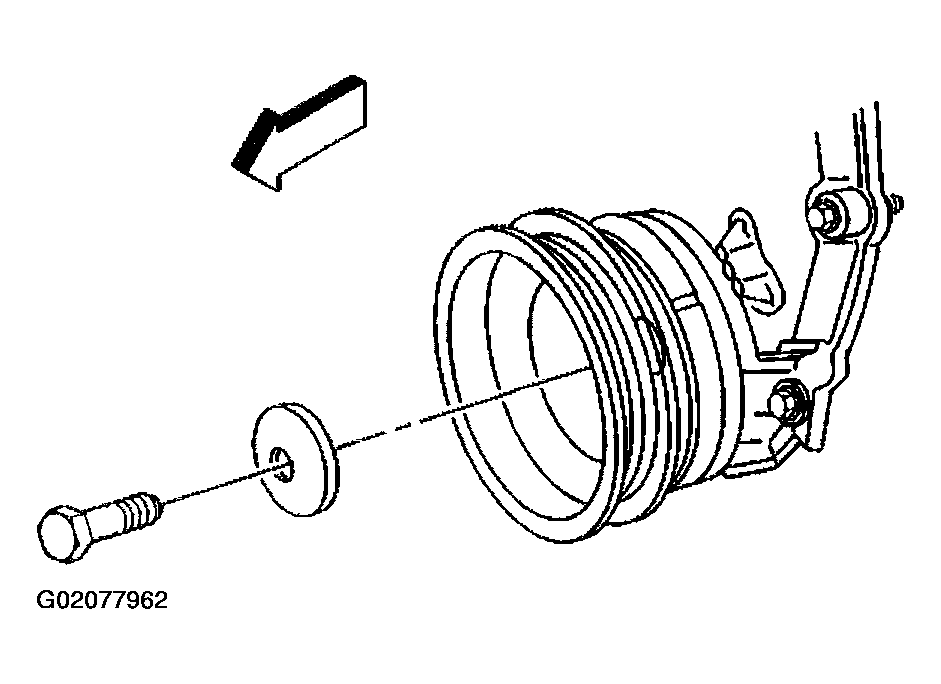

1. Remove the crankshaft balancer bolt and washer.
   Fig 1: Removing Crankshaft Balance Bolt & Washer

   Courtesy of GENERAL MOTORS CORP.

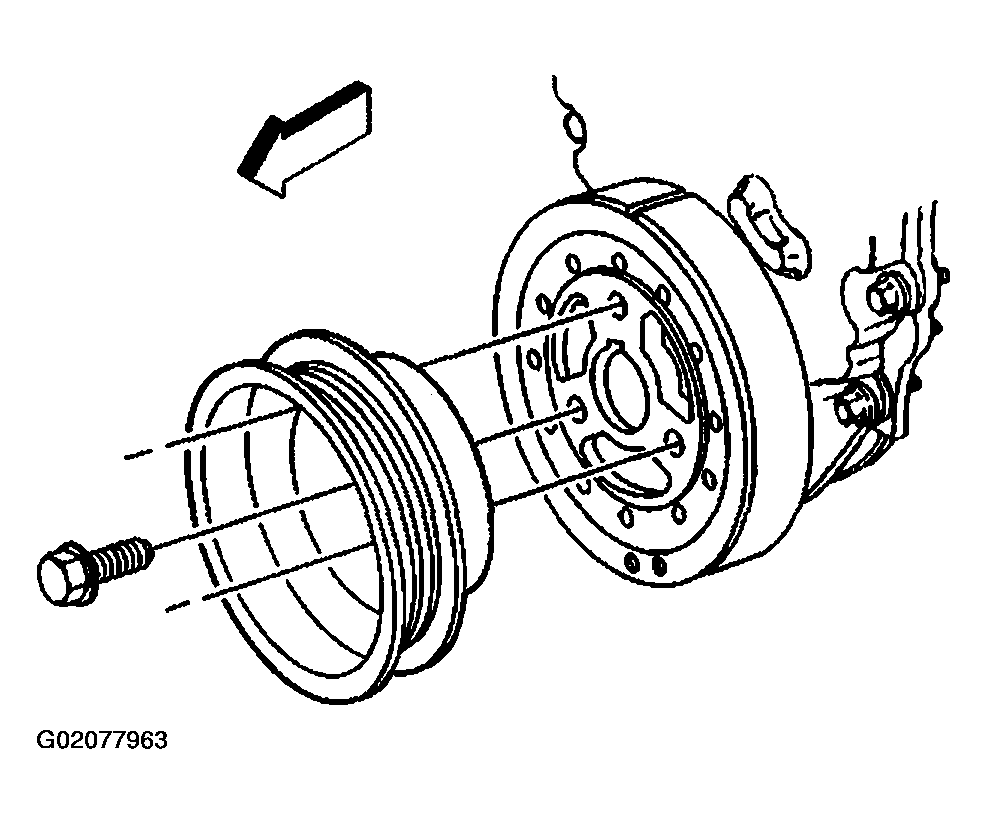

2. Remove the bolts and the crankshaft pulley.
   Fig 2: Removing Bolts & Crankshaft Pulley

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

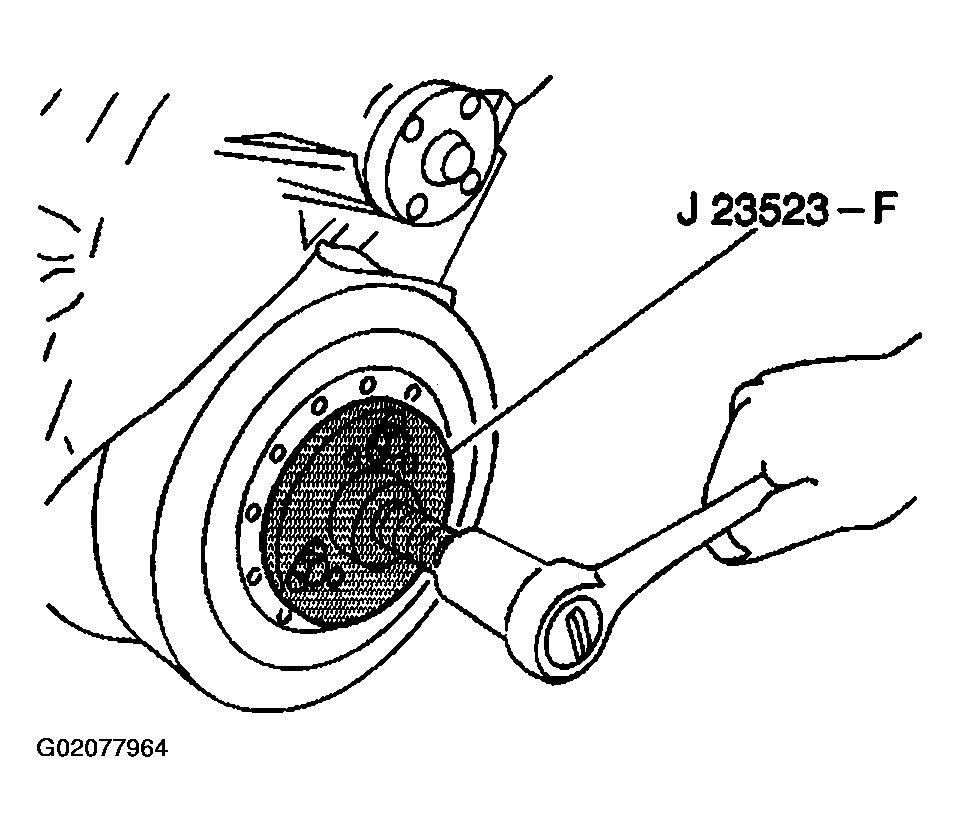

3. Use the J 23523-F  in order to remove the crankshaft balancer.
   1. Install the J 23523-F  plate and bolts onto the crankshaft balancer.

      Tighten

      Tighten the bolts to 25 N.m (18 lb ft).

   2. Install the J 23523-F  forcing screw into the plate.
   3. Rotate the J 23523-F  forcing screw clockwise in order to remove the crankshaft balancer.
4. Remove the J 23523-F  from the crankshaft balancer.
   Fig 3: Removing Crankshaft Balance Using J 23523-F

   Courtesy of GENERAL MOTORS CORP.

   Important:  If replacing the crankshaft balancer, NEW weights must be installed into the NEW crankshaft balancer, in the same location as the old weights in the old balancer.

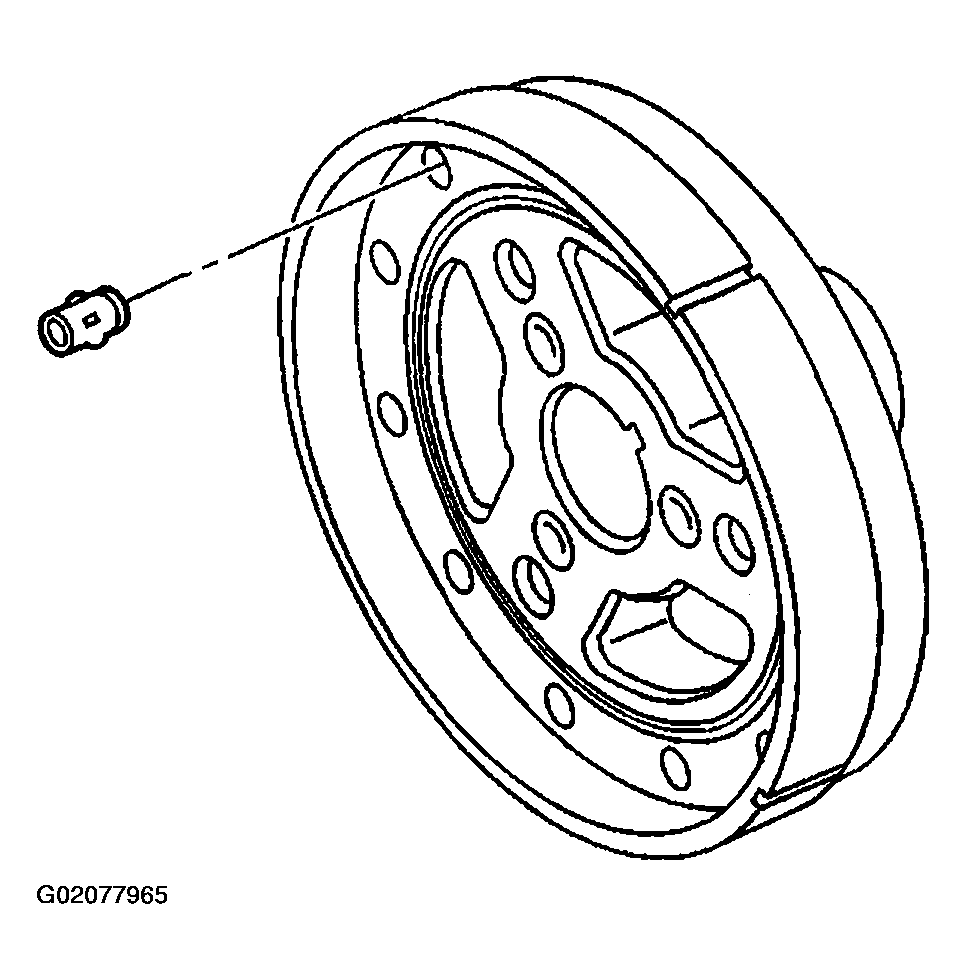

5. Note the position and length of any crankshaft balancer front groove pins, if applicable.
   Fig 4: Noting Position & Length Of Crankshaft Balancer Front Groove Pins

   Courtesy of GENERAL MOTORS CORP.
