Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: View Of Roof Marker Lamps (U01)
GM1858049Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Marker Lamp - Right
2 Roof Marker Lamp - Middle
3 Roof Marker Lamp - Left
4 Windshield
Fig 2: View Of Components Above Driver Door
GM1739414Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield
2 Cellular, Navigation, and Digital Radio Antenna
Fig 3: Identifying Top Of Roof Components (CF5)
GM1860649Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Control Module
2 Left Outer Frame Panel
Fig 4: Identifying Overhead Console Components
GM1890108Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 X304 (except MEX)
2 Inflatable Restraint Passenger Air Bag On/Off Indicator (AL0/C99 except MEX)
3 Cellular Telephone Microphone (UE1/U3U/UVB)
4 Roof Beacon Switch (5X7/5Y0/TRW)
5 Sliding Rear Window Switch (A48)
6 Dome/Reading Lamps - Front
7 J322 (TRW/UG1/A48)
8 J323
9 X313 (CF5/TRW/5X7/5Y0)
10 Blunt Cut - Roof Mounted Beacon Provision (TRW)
11 Roof Beacon Relay (TRW)
Fig 5: Identifying Overhead Console & Headliner Components (U42/5Y0)
GM1934348Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Beacon Switch (5Y0)
2 Video Display (U42)
3 Infrared Transmitter (U42)
4 Blunt Cut - Emergency Vehicle Provision (5Y0)
5 Emergency Vehicle Roof Lamp Relay (5Y0)
Fig 6: Identifying Front Headliner Components - 1 Of 2
GM1860657Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof
2 Sunshade - Right
3 Windshield Outside Moisture Sensor (CE1)
4 Inside Rearview Mirror (ISRVM) Window Anchor
Fig 7: Identifying Front Headliner Components - 2 Of 2
GM1855919Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Temperature Sensor - Inside (CJ2)
2 Cellular Telephone Microphone (UE1/U3U/UVB)
3 Dome/Reading Lamps - Rear (Extended Cab/Crew Cab)
4 Sunroof Switch (CF5)
5 Sunshade - Right (DH6)
6 Garage Door Opener (UG1)
7 OnStar Button Assembly (UE1)
8 Inside Rearview Mirror (ISRVM)
9 Dome/Reading Lamps - Front
10 Windshield
11 Sunshade - Left (DH6)
Fig 8: Locating Speaker - LF Tweeter (RF Similar)
GM851254Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Left A-Pillar Trim Panel
2 Speaker - Left Front Tweeter (except MEX)
3 Speaker - Left Front Tweeter Connector (except MEX)
Fig 9: Identifying Right A-Pillar Components (UQ3/UQA)
GM1970093Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Speaker - Right Front Tweeter (except MEX)
2 Right A-Pillar Trim
3 Speaker - Left Front Tweeter Connector (except MEX)

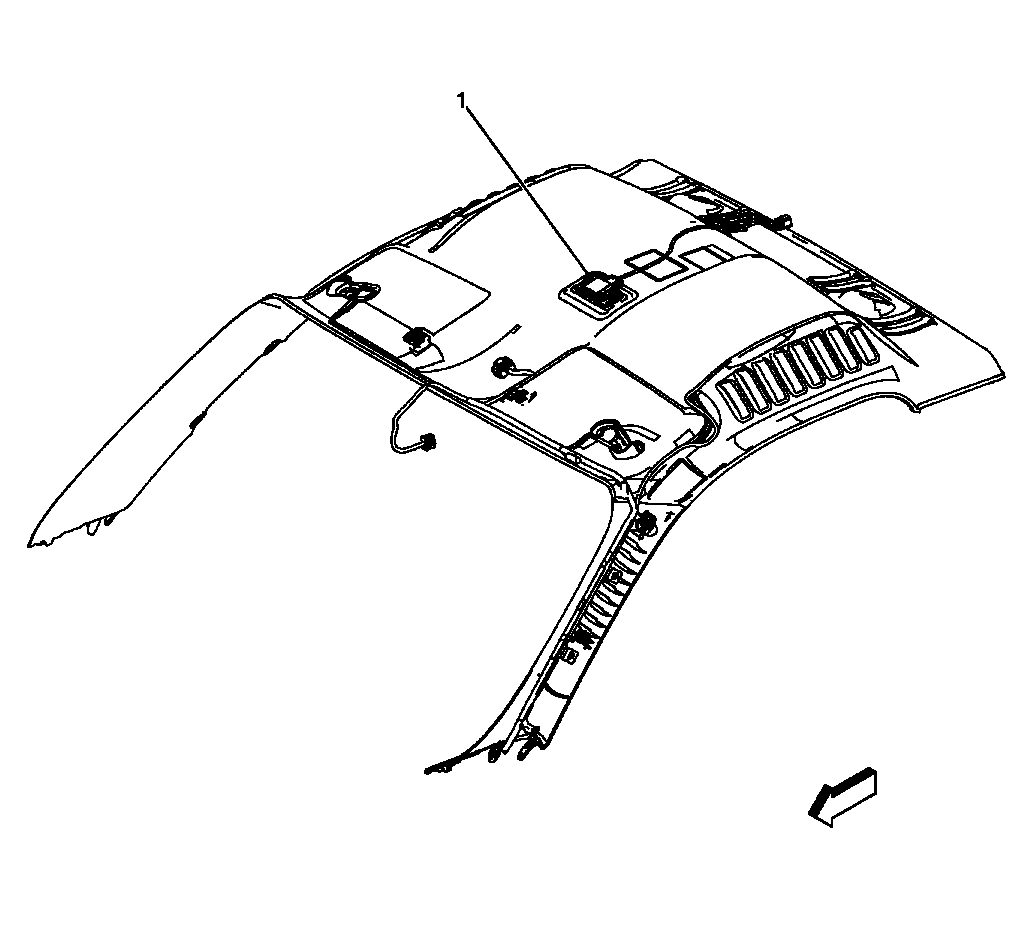

Fig 10: Identifying Top Of Headliner Components (Regular Cab)
GM2178124Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Compass Module (YE9)

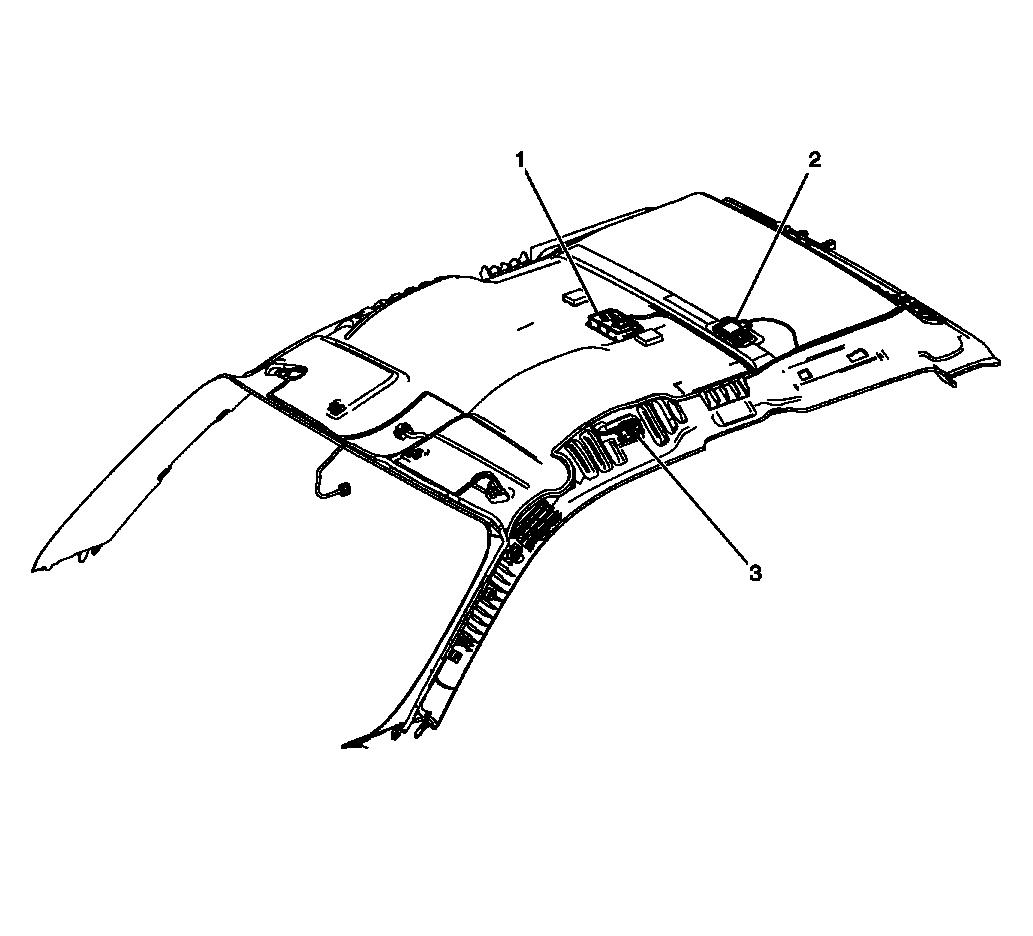

Fig 11: Identifying Top Of Headliner Components (Extended Cab)
GM2178136Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome/Reading Lamps - Rear
2 Electronic Compass Module (YE9)
3 Inside Air Temperature Sensor (CJ2)

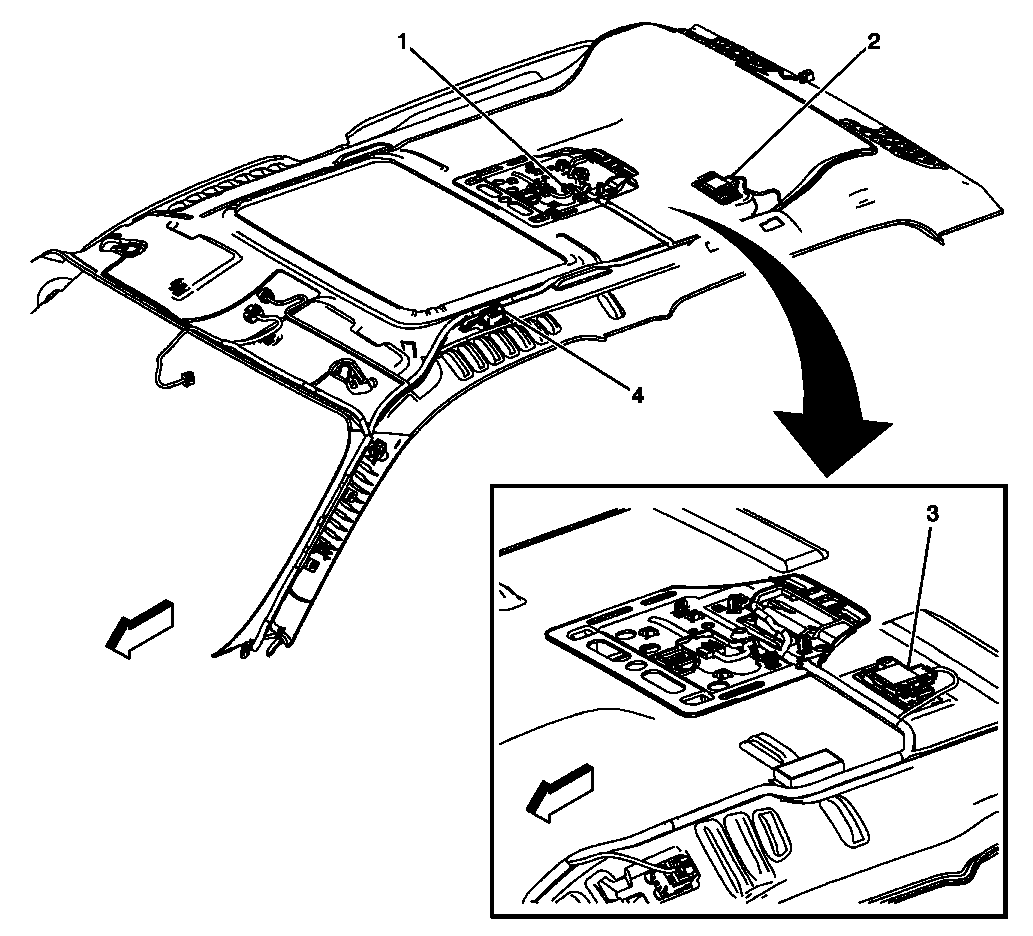

Fig 12: View Of Top Of Headliner Components (Crew Cab)
GM2178182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome/Reading Lamp - Rear
2 Electronic Compass Module (YE9 with CF5)
3 Electronic Compass Module (YE9 except CF5)
4 Inside Air Temperature Sensor (CJ2)
Fig 13: View Of Components Below Left Side Of I/P
GM1860661Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Release
2 Park Brake Switch
3 Dash Panel
4 Park Brake Lever
Fig 14: View Of Pedal Assemblies
GM1739407Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Electronic Adjustable Pedal (EAP) Assembly (JF4)
2 Stop Lamp Switch
3 Accelerator Pedal Position (APP) Sensor
Fig 15: View Of Passenger Compartment Components - 1 Of 2 (Regular Cab)
GM1855921Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Speaker - Left Rear
3 Driver Door Trim
4 Speaker - Left Front
5 Speaker - Center I/P (UQA with Y91)
6 Speaker - Subwoofer (UQA)
7 Speaker - Right Front
8 Speaker - Right Rear
Fig 16: View Of Passenger Compartment Components - 2 of 2 (Regular Cab)
GM1855932Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Driver (ASF)
2 Inflatable Restraint Roof Rail Module - Passenger (ASF)
3 Floor Panel

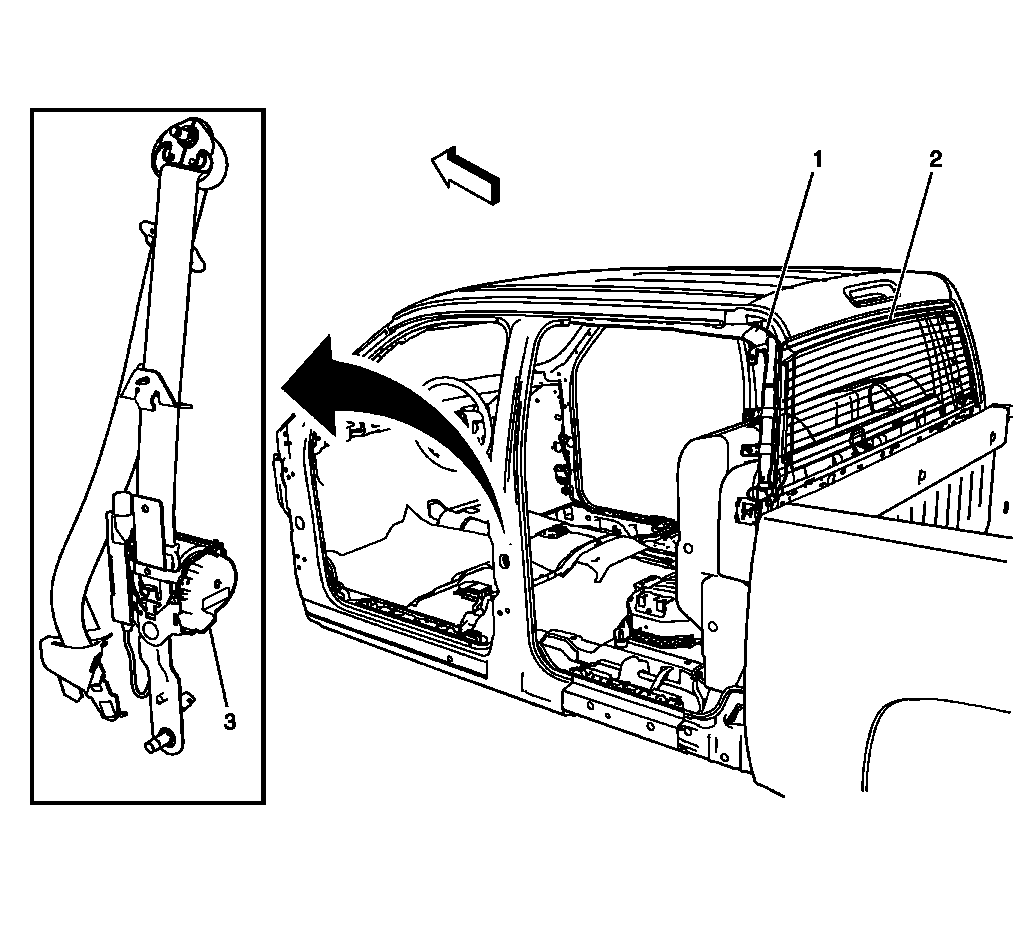

Fig 17: View Of Left Side Of Passenger Compartment Components (Extended/Crew Cab)
GM2164235Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Driver (ASF
2 Rear Window Defogger Grid (C49)
3 Seat Belt Pretensioner - Driver

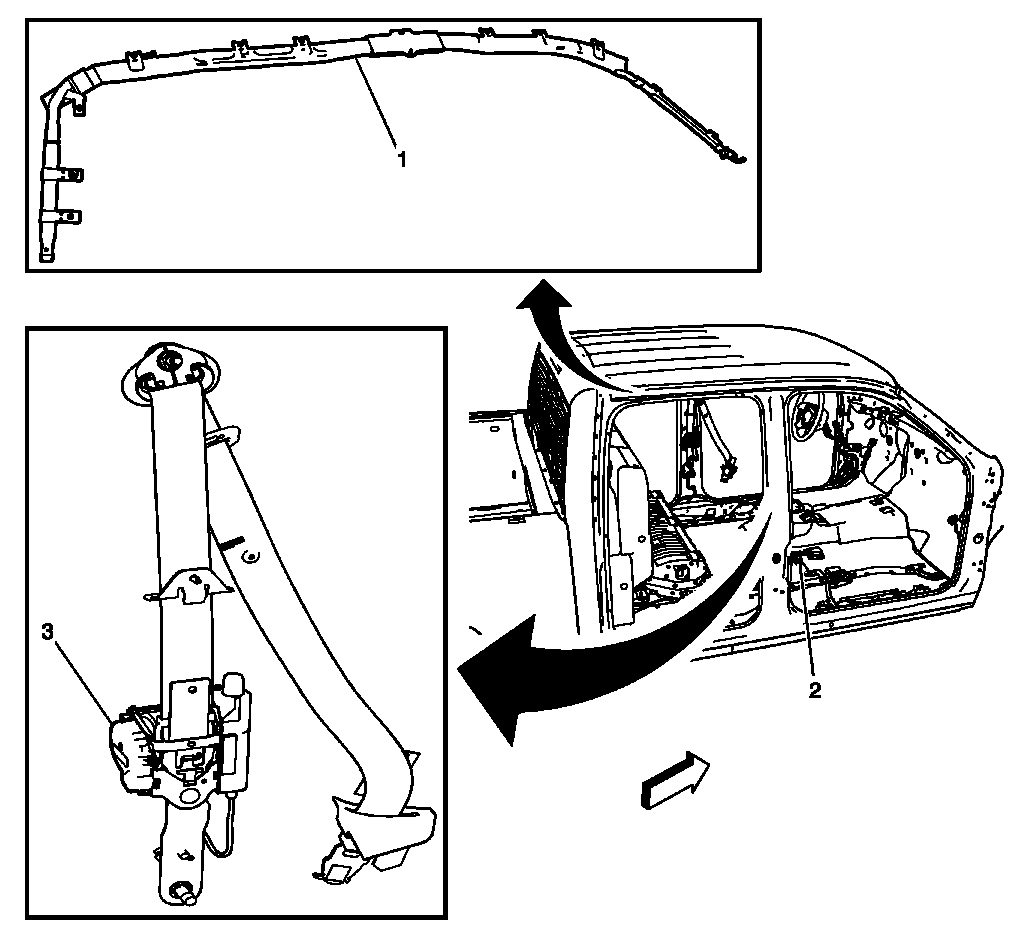

Fig 18: View Of Right Side Of Passenger Compartment Components (Extended/Crew Cab)
GM2166027Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint Roof Rail Module - Passenger (ASF)
2 Data Link Resistor 2 (HP2)
3 Seat Belt Pretensioner - Passenger
Fig 19: Identifying Driver Seat Components
GM1913810Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Recline Motor - Driver (AN3)
2 Seat Lumbar Vertical Motor Position Sensor - Driver (AN3)
3 Seat Lumbar Vertical Motor - Driver (AN3)
4 X324 (AN3)
5 Seat Lumbar Horizontal Motor - Driver (AN3)
6 Seat Lumbar Horizontal Motor Position Sensor - Driver (AN3)
7 Seat Recline Position Sensor - Driver (AN3)
8 Seat Lumbar Switch - Driver (AN3)
9 Seat Adjuster Switch - Driver (AG1)
10 Memory Seat Module (MSM) (AN3)
11 Inflatable Restraint Seat Position Sensor - Driver (10 Series except MEX)
12 Seat Adjuster Motor Assembly - Driver (AG1)
13 Seat Belt Buckle - Driver
Fig 20: Identifying Seat Heating Elements - Driver (AN3)
GM1859595Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Driver Back (AN3)
2 Heated Seat Element - Driver Cushion (AN3)
Fig 21: Identifying Center Seat Components (AZ3)
GM1934344Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Outlet - Center Seat
Fig 22: View Of Passenger Seat Components
GM1913813Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Frame
2 X325 (AN3)
3 Seat Lumbar Vertical Motor - Passenger (AN3)
4 Seat Adjuster Switch - Passenger (AG2)
5 Seat Lumbar Switch - Passenger (AN3)
6 Seat Belt Buckle - Passenger (10 Series)
7 Inflatable Restraint Passenger Presence System (PPS) Module (AL0)
8 Seat Adjuster Motor Assembly - Passenger (AG2)
9 Inflatable Restraint Passenger Presence System (PPS) Sensor (AL0)
10 Seat Recline Motor - Passenger (AN3)
11 Seat Lumbar Horizontal Motor - Passenger (AN3)
Fig 23: Identifying Seat Heating Elements - Passenger
GM1859596Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Passenger Back (AN3)
2 Heated Seat Element - Passenger Cushion (AN3)
Fig 24: View Of Under Front Seats Components
GM1860645Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Yaw and Lateral Accelerometer Sensor (JL4/HP2)
2 Inflatable Restraint Sensing and Diagnostic Module (SDM)
3 Inflatable Restraint Vehicle Rollover Sensor (ASF)
4 Shifter Housing
5 Rear HVAC Outlet Duct
6 Rear Object Sensor Control Module (UD7)

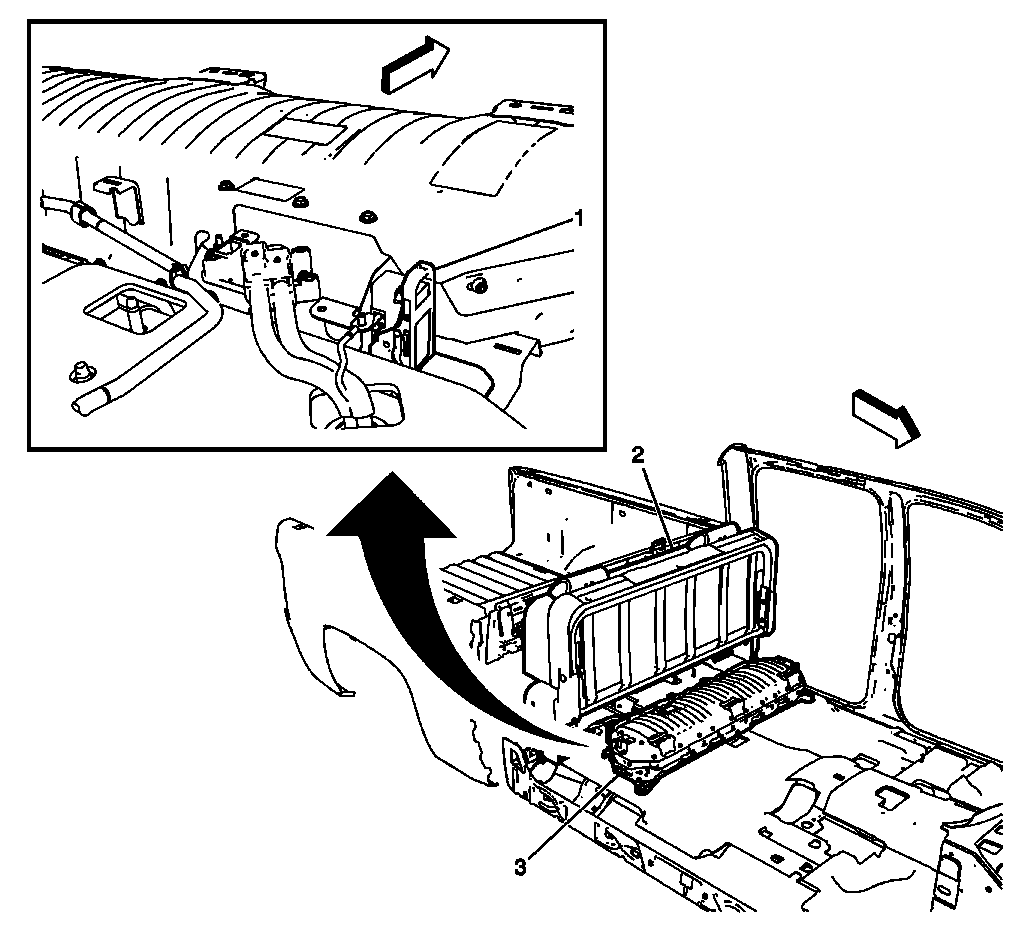

Fig 25: View Of Under Rear Seat Components (HP2)
GM2160942Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Drive Motor Battery High Voltage Manual Disconnect Lever
2 Rear Seat - Folded
3 Drive Motor Generator Battery (HP2)
Fig 26: Identifying Drive Motor Battery Components
GM1869639Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Case Upper Cover Assembly
2 Battery Upper Cover Nut
3 Bar Code Label
4 Battery Danger Label
5 Drive Motor Battery Case Upper Cover Bolt
6 Battery Side Cover Nut
7 Drive Motor Battery Right Side Cover
8 Drive Motor Battery Side Cover Bolt
9 Battery Caution Label
10 Drive Motor Battery Cable Assembly Nut
11 Drive Motor Battery Positive Relay Cable Assembly
12 Drive Motor Battery Current Sensor Assembly
13 Drive Motor Generator Battery Current Sensor Bracket
14 Drive Motor Battery Current Sensor Bolt
15 Drive Motor Generator Battery Control Module Assembly
16 Drive Motor Battery Control Module Bracket
17 Drive Motor Battery Control Module Bracket Bolt
18 Battery Cable Clip
19 Drive Motor Battery Control Module Bracket Bolt
20 Drive Motor Battery Control Module Bracket
21 Drive Motor Battery Positive and Negative Cable Bolt
22 Drive Motor Battery Positive and Negative Cable Assembly
23 Battery Front Cover Retainer
24 Drive Motor Battery Front Cover Assembly
25 Drive Motor Battery Front Cover Bolt
26 Battery Terminal Cover
27 Battery Terminal Cover
28 Battery Terminal Cover
29 Drive Motor Battery Cooling Air Outlet Duct Seal
30 Drive Motor Battery with Case
31 Drive Motor Battery Cooling Air Outlet Duct Seal
32 Drive Motor Battery Current Limit Resistor Nut
33 Drive Motor Battery Inverter Current Limit Resistor
34 Drive Motor Battery Cable Terminal Nut
35 Drive Motor Battery Positive High Voltage Contactor Relay Assembly
36 Drive Motor Battery Wire Harness Connector Retainer
37 Drive Motor Battery Power Inverter Current Limit Relay Assembly
38 Drive Motor Battery Positive High Voltage Contactor Relay Nut
39 Drive Motor Battery Positive Relay Nut
40 Drive Motor Generator Battery Positive Relay Insulator Nut
41 Drive Motor Generator Battery Positive Relay Insulator Assembly
42 Drive Motor Battery Sensor Bracket Bolt
43 Drive Motor Battery Cable Terminal Extension Cover
44 Drive Motor Battery Terminal Block Cover Nut
45 Drive Motor Battery Terminal Extension Cable Bolt
46 Drive Motor Battery Terminal Block Nut
47 Drive Motor Battery Cable Terminal Extension
48 Drive Motor Battery High Voltage Manual Disconnect Knob Housing
49 Drive Motor Battery Cover Terminal Bolt
50 Battery Cable Terminal Retainer
51 Drive Motor Battery High Voltage Manual Disconnect Lever Assembly
52 Drive Motor Battery Disconnect Switch Nut
53 Battery Disconnect Switch Cable Assembly
54 Drive Motor Battery Cable Nut
55 Battery Positive and Negative Cable Cover
56 Drive Motor Battery Cooling Air Outlet Duct Seal
57 Drive Motor Generator Battery Ground Bolt
58 Drive Motor Generator Battery Mounting Nut
59 Battery Terminal Cover
60 Battery Terminal Cover
61 Drive Motor Battery Rear Cover Bolt
62 Drive Motor Battery Rear Cover Assembly
63 Drive Motor Generator Battery Ground Nut
64 Drive Motor Battery Cooling Air Outlet Duct Seal
65 Drive Motor Generator Battery Retainer Nut
66 Drive Motor Generator Battery Negative Relay Bracket Nut
67 Drive Motor Generator Battery Negative Relay Bracket
68 Drive Motor Battery Negative Relay Bracket Bolt
69 Drive Motor Battery Negative High Voltage Contactor Relay Assembly
70 Drive Motor Battery Negative Relay Cable Assembly
71 Drive Motor Battery Cable Assembly Nut
72 Drive Motor Battery Cable Terminal Nut
73 Drive Motor Battery Housing Relay Nut

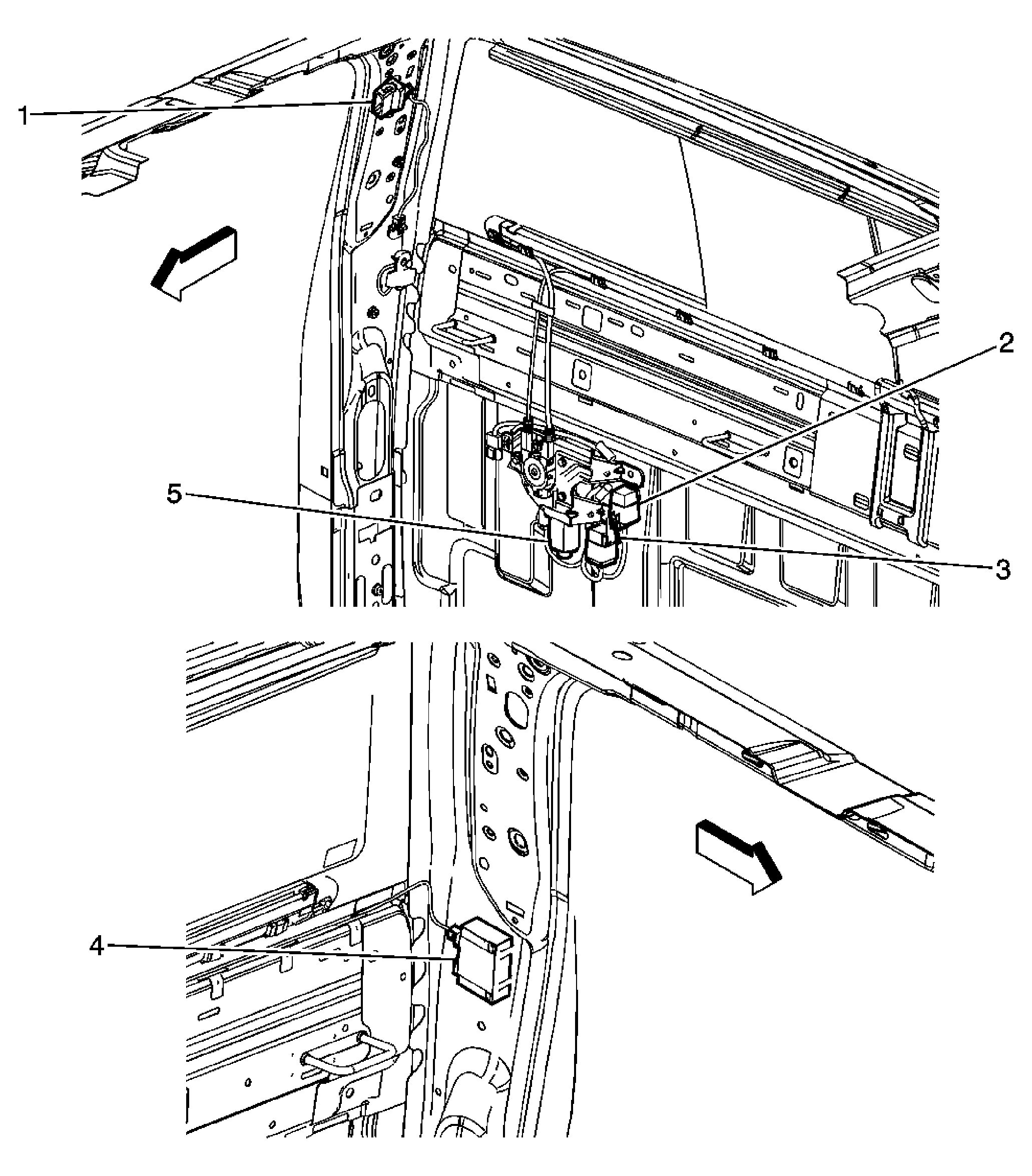

Fig 27: View Of Rear Of Passenger Compartment Components
GM2060324Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Information Center Telltale Assembly (UD7)
2 Sliding Rear Window Open Relay (A48)
3 Sliding Rear Window Close Relay (A48)
4 Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
5 Sliding Rear Window Motor (A48)
Fig 28: View Of Above Rear Window Components
GM1855920Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Center High Mounted Stop Lamp (CHMSL)
scientia non olet · About LEMON Manuals
