Front of Vehicle/Engine Compartment Component Views

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

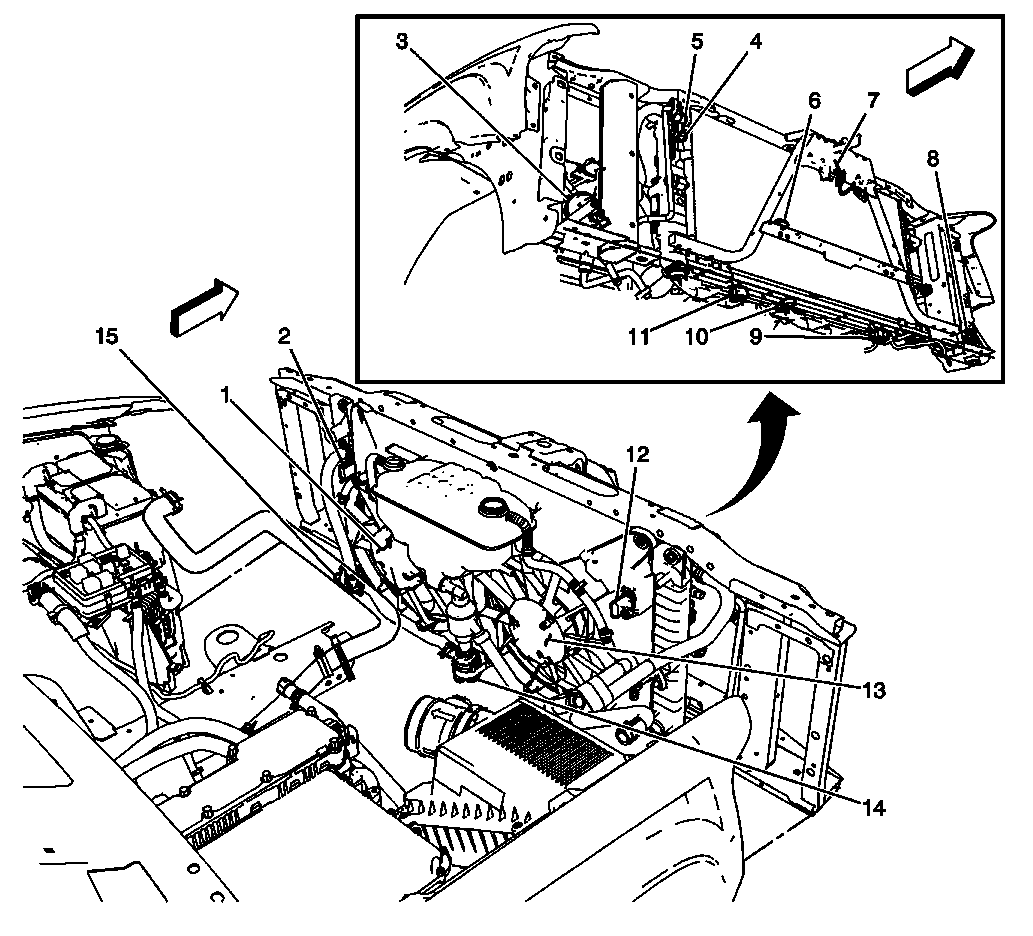

Fig 1: Identifying Components At Front Of Vehicle (10 Series)
GM2160986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cooling Fan - Left
2 Engine Cooling Fan - Resistor Left (HP2)
3 Horn - Right (7Z1/YE9/HP2)
4 Generator Control Module Temperature Sensor (HP2)
5 A/C Low Pressure Sensor (HP2)
6 Ambient Air Temperature Sensor (CJ2/C67))
7 Hood Ajar Switch (AP3/AP8)
8 Horn - Left
9 Inflatable Restraint Front End Sensor - Left
10 High Voltage Circuit Impact Detection Sensor (HP2)
11 Inflatable Restraint Front End Sensor - Right
12 Engine Cooling Fan Resistor - Right (HP2)
13 Engine Cooling Fan - Right
14 Generator Control Module Coolant Pump - Right (HP2)
15 Generator Control Module Coolant Pump - Left (HP2)
Fig 2: Locating Components At Front Of Vehicle (10 Series)
GM1922981Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Lower Radiator Support
2 Inflatable Restraint Front End Sensor
Fig 3: Identifying Components At Front Of Vehicle (X88)
GM1854075Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp - Upper Right
2 Headlamp - Right Low Beam
3 Headlamp - Left Low Beam
4 Park/Turn Signal Lamp - Upper Left
5 Park/Turn Signal Lamp - Lower Left
6 Headlamp - Left High Beam
7 Fog Lamp - Left Front (T96)
8 Fog Lamp - Right Front (T96)
9 Headlamp - Right High Beam
10 Park/Turn Signal Lamp - Lower Right
Fig 4: Identifying Components At Front Of Vehicle (Z88)
GM1854076Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Headlamp - Right Low Beam
2 Park/Turn Signal Lamp - Upper Right
3 Park/Turn Signal Lamp - Upper Left
4 Headlamp - Left Low Beam
5 Marker Lamp - Left Front
6 Headlamp - Left High Beam
7 Park/Turn Signal Lamp - Lower Left
8 Fog Lamp - Left Front (T96)
9 Fog Lamp - Right Front (T96)
10 Park/Turn Signal Lamp - Lower Right
11 Headlamp - Right High Beam
12 Marker Lamp - Right Front
Fig 5: View Of Grille Frame Components
GM1858048Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Upper Tie Bar
2 Hood Ajar Switch (AP3/AP8)
3 Ambient Air Temperature Sensor (CJ2/C67)
Fig 6: Identifying Horns
GM1750395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn - Right (7Z1/YE9)
2 Radiator Core Support
3 Horn - Left
Fig 7: Engine Cooling Fans (10 Series) Component Views
GM1539137Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Cooling Fan - Left
2 Engine Cooling Fan - Right
3 Forward Lamp Harness
Fig 8: Identifying Components At Front Of Engine Compartment (Diesel)
GM1870635Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Front Fascia
3 A/C Low Pressure Switch (C67/CJ2)
4 Surge Tank
5 Engine Coolant Level Switch
Fig 9: View Of Left Side Of Engine Compartment
GM1714226Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor
2 Power Brake Booster (JL4)
3 Windshield Washer Solvent Heater (XA7)
4 Fuse Block - Underhood
5 Engine Control Module (ECM)
6 Transmission Control Module (TCM) (M30/M70/MW7)
7 Brake Booster Vacuum Sensor (JL4)/Brake Master Cylinder Pressure Sensor (JL1)
8 Brake Fluid Level Switch

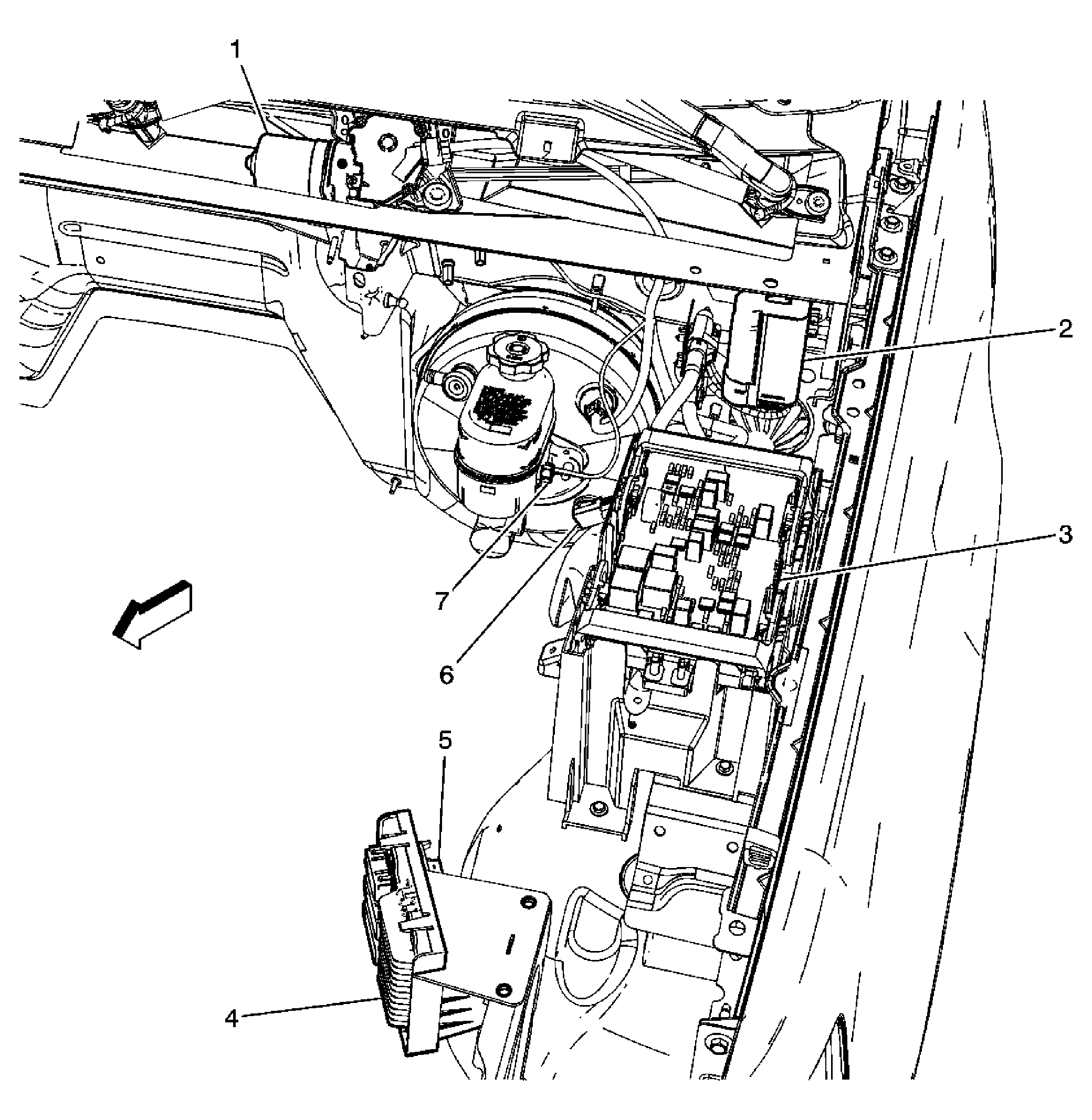

Fig 10: Identifying Components At Left Rear Of Engine Compartment (Except HP2)
GM2152875Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Windshield Wiper Motor
2 Windshield Washer Solvent Heater (XA7)
3 Fuse Block - Underhood
4 Engine Control Module (ECM)
5 Transmission Control Module (TCM) (M30/MW7)
6 Brake Booster Vacuum Sensor (JL4 with 10 Series)/Brake Master Cylinder Pressure Sensor (JL1)
7 Brake Fluid Level Switch

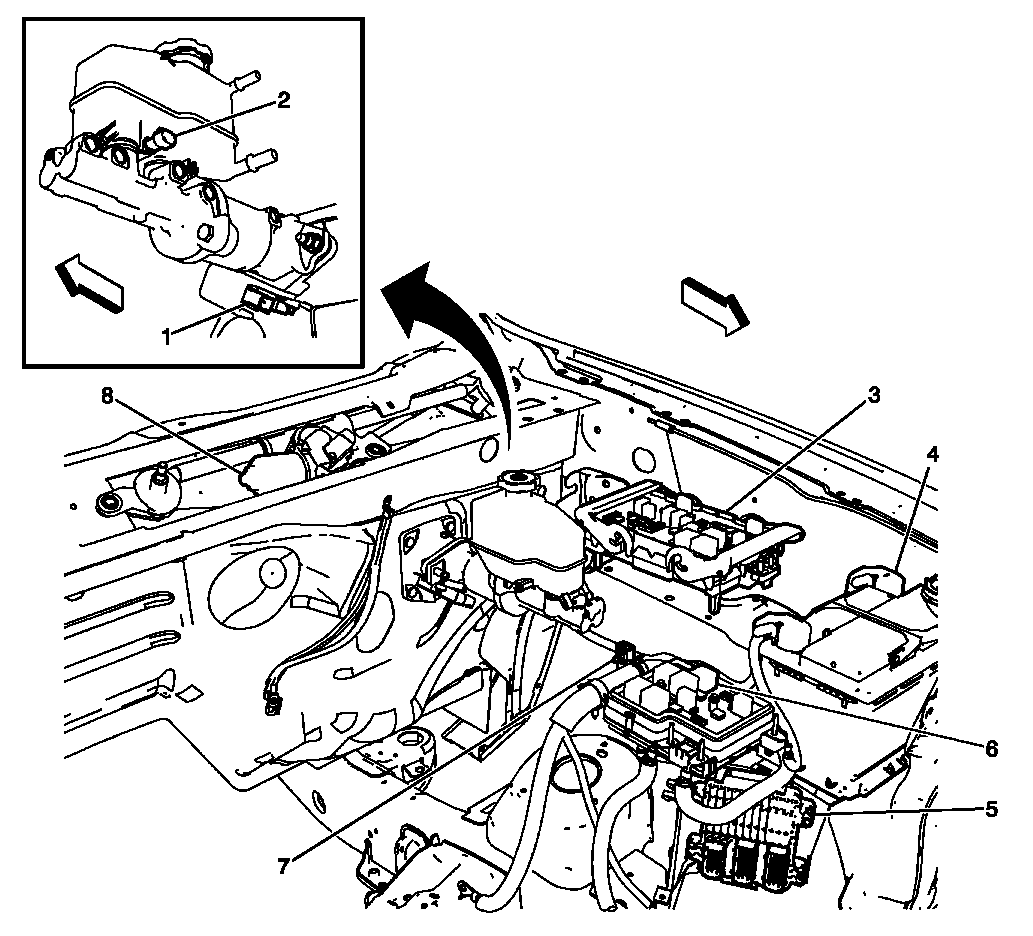

Fig 11: Identifying Components At Left Rear Of Engine Compartment (HP2)
GM2161008Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Master Cylinder Piston Position Sensor
2 Brake Fluid Level Switch
3 Fuse Block - Underhood
4 Battery
5 Engine Control Module (ECM)
6 Fuse Block - Auxiliary
7 Battery Current Sensor
8 Windshield Wiper Motor
Fig 12: Identifying Components At Right Rear Of Engine Compartment (Gas - 4.3L)
GM1714221Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery - Right
2 A/C Low Pressure Switch (C67/CJ2)
3 A/C Compressor Clutch (C67/CJ2)
4 A/C Refrigerant Pressure Sensor (C67/CJ2)
5 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

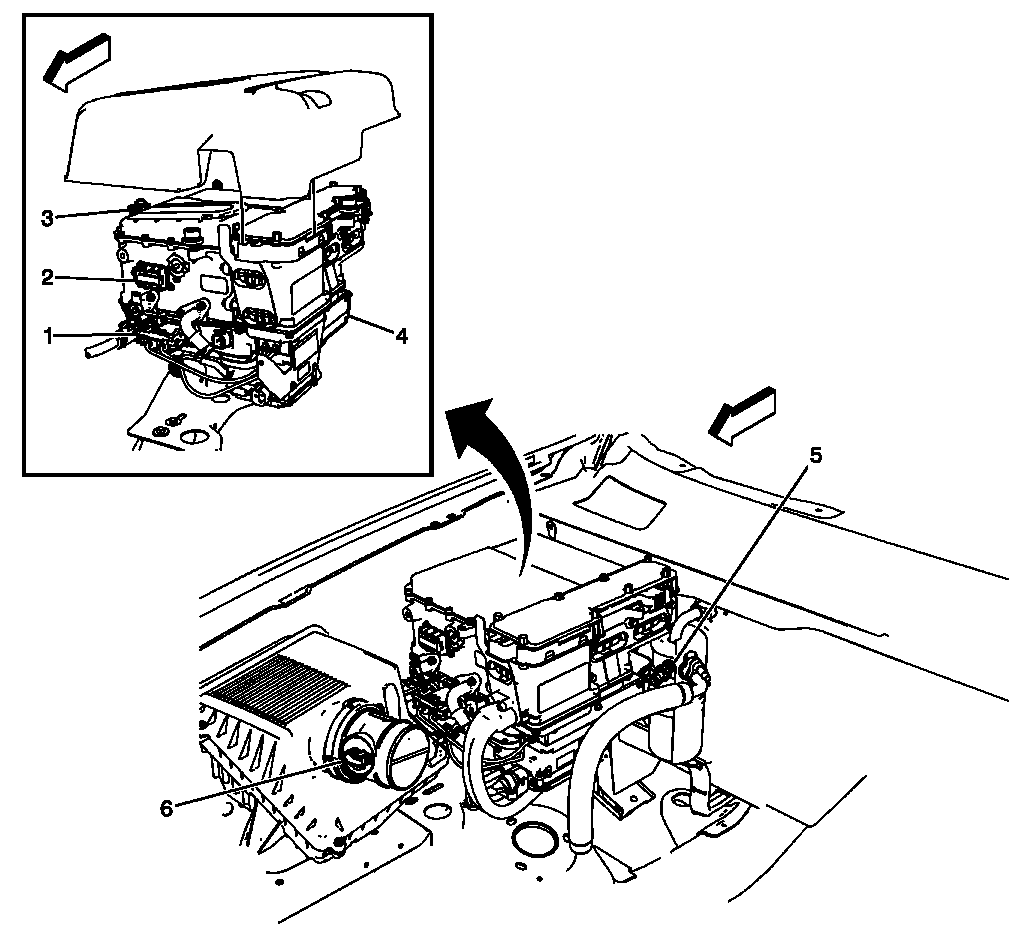

Fig 13: Identifying Components At Right Rear Of Engine Compartment (HP2)
GM2160976Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory DC Power Control Module
2 Drive Motor Generator Power Inverter Module
3 Drive Motor Generator Power Inverter Module Cover
4 Electronic Power Steering Motor Control Module
5 A/C Refrigerant Pressure Sensor
6 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Fig 14: Hybrid Control Electronic Component Views (HP2)
GM2214237Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory DC Power Control Module
2 Drive Motor Generator Battery
3 Drive Motor Generator Battery Control Module
4 Drive Motor Battery Cable Terminal Extension Cover
5 Drive Motor Battery 300 Volt Positive and Negative Cable Assembly
6 Drive Motor Generator Power Inverter Module 3 Phase Cable Assembly
7 Drive Motor with Generator Assembly - 2nd Position
8 Transmission Power Inverter Module (3 Phase) Cable Cover
9 Automatic Transmission Auxiliary Fluid Pump Control Module
10 Automatic Transmission Auxiliary Fluid Pump
11 Drive Motor with Generator Assembly - 1st Position
12 A/C Compressor
13 Drive Motor Generator Power Inverter Module
Fig 15: View Of Components At Rear Of Engine Compartment
GM1858046Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery - Right
2 Windshield Wiper Motor
3 Windshield Washer Solvent Heater (XA7)
4 Fuse Block - Underhood
5 Battery - Left (Diesel/6A6/T92)
6 Windshield Washer Fluid Level Switch
7 Windshield Washer Fluid Pump
8 Air Cleaner Box
Fig 16: View Of Front Of Engine Compartment (4.3L)
GM1888657Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery Current Sensor (except MEX)
2 Mega Fuse
3 A/C Low Pressure Switch (C67/CJ2)
4 Fuse Block - Underhood
5 Engine Control Module (ECM)
6 A/C Refrigerant Pressure Sensor (C67/CJ2)
7 Mass Airflow (MAF)/Intake Air Temperature (IAT) Sensor
8 Battery - Right
Fig 17: View Of Engine Harness Jumper To Engine POA Harness (Diesel)
GM1870628Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Battery - Right
2 Fuse Holder
3 X127
4 X108
5 X107
6 X123 (PTO)
7 Fuse Block - Underhood
8 X109
9 Battery - Left
10 Engine Control Module (ECM)
11 Transmission Control Module (TCM) (MX7)
Fig 18: Identifying Rear Of Engine Compartment Components (TP2)
GM1934393Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Holder
2 Auxiliary Battery Run Relay
3 Auxiliary Battery Harness
4 Auxiliary Battery Relay
5 X122
