Removal Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the propeller shaft assembly. Refer to Two-Piece Propeller Shaft Replacement .

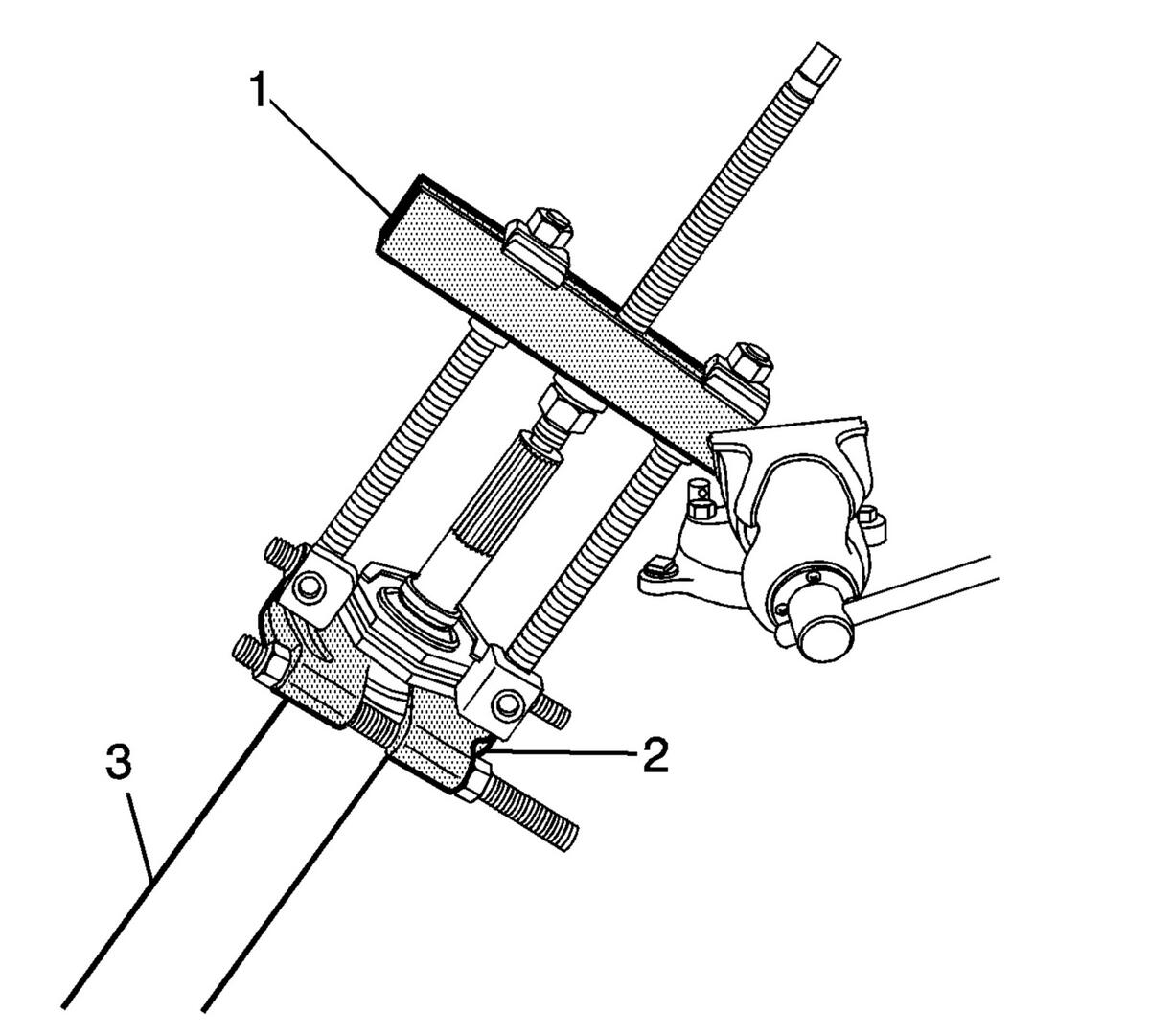

    3. Fig 1: Removing Center Bearing Assembly From Propeller Shaft
    GM1994016Courtesy of GENERAL MOTORS CORP.
  3. Install the J 39477  (1) on the center bearing assembly (2).
  4. Position the J 39477 (1) in a vise
  5. Using the J 39477  (1), remove the center bearing assembly (2) from the propeller shaft.
