Fuse Block - Underhood Label

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

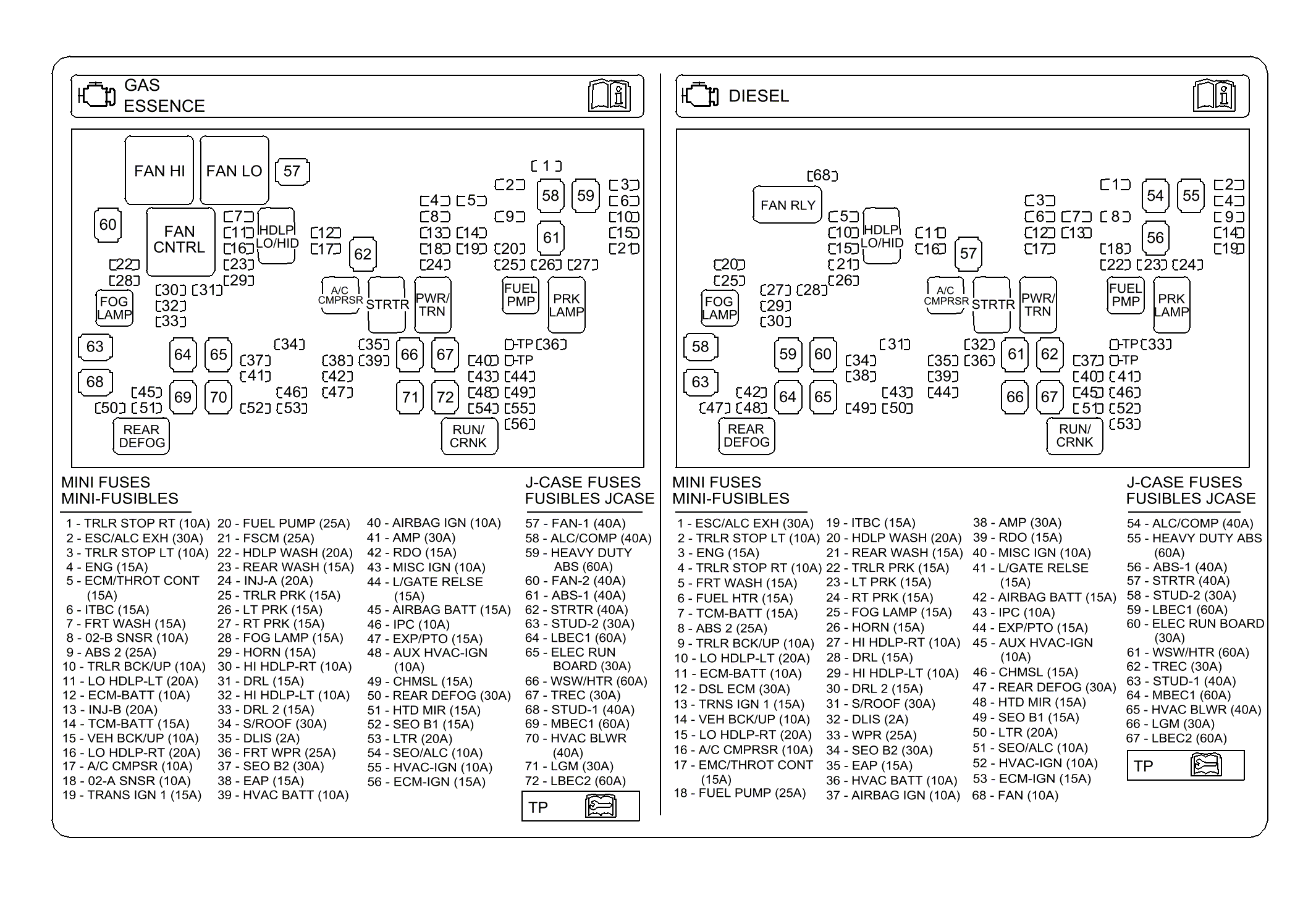

Fig 1: Identifying Fuse Block - Underhood Label

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Underhood Label Usage - Diesel

No.	Device	Rating	Description
1	ESC/ALC EXH Fuse	30A	Not Used
2	TRLR STOP LT Fuse	10A	Trailer Wiring, Auxiliary Body Control Module (XBCM) (EXP)
3	ENG Fuse	15A	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
4	TRLR STOP RT Fuse	10A	Trailer Wiring, Auxiliary Body Control Module (XBCM) (EXP)
5	FRT WASH Fuse	15A	Windshield Washer Fluid Pump
6	FUEL HTR Fuse	15A	Glow Plug Control Module (GPCM), Fuel Heater
7	TCM-BATT Fuse	15A	Transmission Control Module (TCM)
8	ABS 2 Fuse	25A	Electronic Brake Control Module (EBCM)
9	TRLR BCK/UP Fuse	10A	Trailer Wiring, Backup Alarm (8S3)
10	LO HDLP-LT Fuse	20A	Headlamp - Left Low Beam
11	ECM-BATT Fuse	10A	Engine Control Module (ECM)
12	DSL ECM Fuse	25A	Engine Control Module (ECM)
13	TRANS IGN 1 Fuse	15A	Transmission Control Module (TCM), Front Drive Axle Actuator (NQF/NQG)
14	VEH BCK/UP Fuse	10A	Backup Lamp - Left, Backup Lamp - Right
15	LO HDLP-RT Fuse	20A	Headlamp - Right Low Beam
16	A/C CMPRSR Fuse	10A	A/C Compressor Clutch
17	ECM/THROT CONT Fuse	15A	Engine Control Module (ECM)
18	FUEL PUMP Fuse	20A	Fuel Pump and Sender Assembly - Front, Fuel Pump
19	ITBC Fuse	15A	Integrated Trailer Brake Control Module (JL1)
20	HDLP WASH Fuse	20A	Not Used
21	REAR WASH Fuse	15A	Not Used
22	TRLR PRK Fuse	15A	Trailer Wiring
23	LT PRK Fuse	15A	License Lamp - Left, Marker Lamp - LF (Z88), Park/Turn Signal Lamp - LF Upper, Park/Turn Signal Lamp - LF Lower, Marker Lamp - LR (Z88), Tail/Stop and Turn Signal Lamp - Lower Left, Tail/Stop and Turn Signal Lamp - Upper Left, Clearance Lamp - LF (RO5), Clearance Lamp - LR (R05), Clearance Lamp (U01), Roof Marker Lamp - Left (U01), Roof Marker Lamp - Right (U01)
24	RT PRK Fuse	15A	Marker Lamp - RF (Z88), Park/Turn Signal Lamp - RF Upper, Park/Turn Signal Lamp - RF Lower, Tail/Stop and Turn Signal Lamp - Lower Right, Tail/Stop and Turn Signal Lamp - Lower Right, Marker Lamp - RR (Z88), License Lamp - Right, Clearance Lamp - RF (R05), Clearance Lamp - RR (R05), Marker Lamp - Tailgate
25	FOG LAMP Fuse	15A	Fog Lamp - Left Front (T96), Fog Lamp - Right Front (T96)
26	HORN Fuse	15A	Horn - Left, Horn - Right (7Z1/YE9)
27	HI HEADLAMP-RT Fuse	10A	Headlamp - Right High Beam
28	DRL Fuse	15A	DRL 2 Fuse
29	HI HEADLAMP-LT Fuse	10A	Headlamp - Left High Beam
30	DRL 2 Fuse	15A	LO HDLP - LT Fuse, LO HDLP - RT Fuse
31	S/ROOF Fuse	30A	Sunroof Module (CF5), Roof Beacon Relay (TRW)
32	DLIS Fuse	2A	Ignition Switch, Theft Deterrent Module (TDM)
33	WPR Fuse	25A	WIPER CONTROL PCB Relay
34	SEO B2 Fuse	30A	Emergency Vehicle Roof Lamp Relay (5Y0)
35	EAP Fuse	15A	PARK ENABLE PCB Relay, ELECTRONIC ADJUSTABLE PEDALS PCB Relay
36	HVAC BATT Fuse	10A	HVAC Control Module
37	AIRBAG IGN Fuse	10A	Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Passenger Air Bag ON/OFF Indicator, Inflatable Restraint I/P Module Disable Switch (C99)
38	AMP Fuse	30A	Audio Amplifier (UQA)
39	RDO Fuse	15A	Digital Radio Receiver (U2K), Radio, Rear Seat Audio (RSA) Control (UK6), Chime Module (UL5)
40	MISC IGN Fuse	10A	Auxiliary Body Control Module (XBCM) (EXP), Stop Lamp Switch, Transfer Case Shift Control Module (NQF/NQH), Trailer Brake Control Module (JL1)
41	L/GATE RELSE Fuse	15A	Not Used
42	AIRBAG BATT Fuse	15A	Inflatable Restraint Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor (ASF)
43	IPC Fuse	10A	Body Control Module (BCM), Instrument Panel Cluster (IPC)
44	EXP/PTO Fuse	15A	Auxiliary Body Control Module (XBCM) (EXP) Power Take Off Relay (PTO)
45	AUX HVAC-IGN Fuse	10A	Instrument Panel Cluster (IPC), Inside Rearview Mirror (ISRVM), Heated Steering Wheel Module Control (KA9)
46	CHMSL Fuse	15A	Center High Mounted Stop Lamp (CHMSL)
47	REAR DEFOG Fuse	30A	Rear Window Defogger Grid
48	HTD MIR Fuse	15A	Outside Rearview Mirror - Driver (DL8/DPN without AN3/DL3), Outside Rearview Mirror - Passenger (DL8/DPN without AN3/DL3)
49	SEO B1 Fuse	15A	Auxiliary Body Control Module (XBCM) (EXP), Power Take Off - (PTO) Module, Run Relay (TP2), Security Indicator Lamp, Vehicle Inclination Sensor, Vehicle Shock Sensor
50	LTR Fuse	20A	Accessory Power Outlet - I/P 1, Data Link Connector (DLC)
51	SEO/ALC Fuse	10A	Not Used
52	HVAC-IGN Fuse	10A	Air Temperature Actuator - Left (CJ2), Air Temperature Actuator - Right (CJ2), Air Temperature Actuator (C67), Mode Actuator, Recirculation Actuator (CJ2/C67)
53	ECM-IGN Fuse	15A	Engine Control Module (ECM), Fuel Pump Relay - Secondary (LY6 without NQZ), Fuel System Control Module (FSCM)
54	ALC/COMP Fuse	40A	Not Used
55	HEAVY DUTY ABS Fuse	60A	Electronic Brake Control Module (EBCM)
56	ABS - 1 Fuse	40A	Electronic Brake Control Module (EBCM)
57	STRTR Fuse	40A	Starter
58	STUD-2 Fuse	30A	Blunt Cut Wire, Integrated Trailer Brake Control Relay (JL1)
59	LBEC1 Fuse	60A	BCM Fuse, COOLED SEATS Fuse, DDM Fuse, DIM Fuse, DSM Fuse, REAR HVAC Fuse, RT STOP TRN Fuse, WSW PUMP Fuse CTSY Fuse, PWR MIR Fuse
60	ELEC RUN BOARD Fuse	30A	Not Used
61	WSW/HTR Fuse	60A	Windshield Washer Solvent Heater (XA7)
62	TREC Fuse	30A	Transfer Case Shift Control Module (NQF/NQH), Transfer Case Encoder Motor CNQH
63	STUD-1 Fuse	40A	Trailer Wiring
64	MBEC1 Fuse	60A	DRIVER SEAT 2 Circuit Breaker, PASS SEAT 1 Circuit Breaker, PWR REAR WNDW Circuit Breaker, RT DOORS Circuit Breaker
65	HVAC BLWR Fuse	40A	Blower Motor Control Module
66	LGM Fuse	30A	Not Used
67	LBEC2 Fuse	60A	AUX PWR 2 Fuse, REAR WPR Fuse, PDM Fuse, AUX PWR Fuse, REAR SEAT Fuse, STOP LAMPS Fuse, IS LPS Fuse, LT STOP TRN Fuse ABS DET Fuse, LT DR Circuit Breaker, REAR SEAT ENT Fuse, INFO Fuse, LOCK/UNLOCK PCB Relay
-	A/C CMPRSR Relay	-	A/C CMPRSR Fuse
-	FOG LAMP Relay	-	FOG LAMP Fuse
-	FUEL PMP Relay	-	FUEL PUMP Fuse
-	HDLP LO/HID Relay	-	LO HDLP - LT Fuse, LO HDLP - RT Fuse, DRL 2 Fuse
-	PRK LAMP Relay	-	LT PRK Fuse, RT PRK Fuse, TRLR PRK Fuse
-	PWR/TRN Relay	-	DSL ECM Fuse, ECM/THROT Fuse, ENG Fuse, FUEL HTR Fuse
-	REAR DEFOG Relay	-	REAR DEFOG Fuse, HTD MIR Fuse
-	RUN/CRNK Relay	-	AIRBAG IGN Fuse, AUX HVAC-IGN Fuse, HVAC-IGN Fuse, ECM-IGN Fuse, MISC IGN Fuse, SEO/ALC Fuse, TRANS IGN 1 Fuse
-	STRTR Relay	-	STRTR Fuse
IMPORTANT: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
-	BCK/UP LAMP PCB Relay	-	VEH BCK/UP Fuse, TRLR BCK/UP Fuse
-	CHMSL	-	CHMSL Fuse
-	DRL PCB Relay	-	DRL Fuse
-	FRT WASH PCB Relay	-	FRT WASH Fuse
-	HI BEAM PCB Relay	-	HI HEADLAMP - LT Fuse, HI HEADLAMP - RT Fuse
-	HORN PCB Relay	-	HORN Fuse
-	L/GATE PCB Relay	-	L/GATE RELSE Fuse
-	LOCK PCB Relay	-	LCK 2 Fuse (YE9)
-	LOCK/UNLOCK PCB Relay	-	LCK 1 Fuse, LCK 2 Fuse, UNLCK 1 Fuse, UNLCK 2 Fuse (AU3 without YE9)
-	REAR WASH PCB Relay	-	REAR WASH Fuse
-	TRLR LT STOP/TRUN PCB Relay	-	TRLR STOP LT Fuse
-	TRLR RT STOP/TURN PCB Relay	-	TRLR STOP RT Fuse
-	UNLOCK PCB Relay	-	DRV UNLCK Fuse, UNLCK 1 Fuse, UNLCK 2 Fuse
-	WIPER CONTROL PCB Relay	-	Windshield Wiper Motor
-	WIPER SPEED PCB Relay	-	Windshield Wiper Motor
IMPORTANT: Items listed below are Wiper System diagnostic testing points
-	TP92	-	Wiper High Speed Test Point
-	TP95	-	Wiper Low Speed Test Point

Fuse Block - Underhood Label Usage - Gas

No.	Device	Rating	Description
1	TRLR STOP RT Fuse	10A	Trailer Wiring, Auxiliary Body Control Module (XBCM) (EXP)
2	ESC/ALC EXH Fuse	30A	Not Used
3	TRLR STOP LT Fuse	10A	Trailer Wiring, Auxiliary Body Control Module (XBCM) (EXP)
4	ENG Fuse	15A	Central Sequential Fuel Injection (Central SFI) (4.3L), Evaporative Emissions (EVAP) Canister Purge Solenoid Valve (4.8L/5.3L/6.0L/6.2L), Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (4.8L/5.3L/6.0L/6.2L), Valve Lifter Oil Manifold (VLOM) Assembly (5.3L/6.0L/6.2L), FAN LO Relay (HP2)
5	ECM/THROT CONT Fuse	15A	Engine Control Module (ECM), Evaporative Emission (EVAP) Canister Purse Solenoid Valve (4.3L) Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (4.3L)
6	ITBC Fuse	15A	Integrated Trailer Brake Control Module (JL1)
7	FRT WASH Fuse	15A	Windshield Washer Fluid Pump
8	O2-B SNSR Fuse	10A	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
9	ABS 2 Fuse	25A	Electronic Brake Control Module (EBCM)
10	TRLR BCK/UP Fuse	10A	Trailer Wiring, Backup Alarm (8S3)
11	LO HDLP-LT Fuse	20A	Headlamp - Left Low Beam
12	ECM-BATT Fuse	10A	Engine Control Module (ECM)
13	INJ-B Fuse	20A	Fuel Injector 2, Fuel Injector 4, Fuel Injector 6, Fuel Injector 8, Ignition Coil 2, Ignition Coil 4, Ignition Coil 6, Ignition Coil 8 (except 4.3L)
14	TCM-BATT Fuse	15A	Transmission Control Module (TCM) (M30), Evaporative Emission (EVAP) Canister Vent Solenoid Valve, Automatic Transmission (MYC/MYD/M99)
15	VEH BCK/UP Fuse	10A	Backup Lamp - Left, Backup Lamp - Right
16	LO HDLP-RT Fuse	20A	Headlamp - Right Low Beam
17	A/C CMPRSR Fuse	10A	A/C Compressor Clutch
18	O2-A SNSR Fuse	10A	Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1, Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
19	TRANS IGN 1 Fuse	15A	Transmission Control Module (TCM) (M30), 1-2 Shift Solenoid (SS) Valve, 2-3 Shift Solenoid (SS) Valve, 3-2 Shift Solenoid (SS) Valve (M30), Torque Converter Clutch (TCC) Solenoid Valve (M30), Torque Converter Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve, Input Speed Sensor (ISS), Front Drive Axle Actuator, Automatic Transmission (MYC/MYD/M99), Drive Motor Generator Power inverter module (HP2)
20	FUEL PUMP Fuse	20A	Fuel Pump and Sender Assembly - Front, Fuel Pump
21	FSCM Fuse	20A	Fuel System Control Module (FSCM) (Gas except 4.3L/LY6/)
22	HDLP WASH Fuse	20A	Not Used
23	REAR WASH Fuse	15A	Not Used
24	INJ-A Fuse	20A	Fuel Injector 1 (except 4.3L), Fuel Injector 3 (except 4.3L), Fuel Injector 5 (except 4.3L), Fuel Injector 7 (except 4.3L), Ignition Coil 1 (except 4.3L), Ignition Coil 3 (except 4.3L), Ignition Coil 5 (except 4.3L), Ignition Coil 7 (except 4.3L), Ignition Control Module (ICM) (4.3L)
25	TRLR PRK Fuse	15A	Trailer Wiring
26	LT PRK Fuse	15A	License Lamp - Left, Marker Lamp - LF (Z88), Park/Turn Signal Lamp - LF Upper, Park/Turn Signal Lamp - LF Lower, Marker Lamp - LR (Z88), Tail/Stop and Turn Signal Lamp - Lower Left, Tail/Stop and Turn Signal Lamp - Upper Left, Clearance Lamp - LF (RO5), Clearance Lamp - LR (R05), Clearance Lamp (U01), Roof Marker Lamp - Left (U01), Roof Marker Lamp - Right (U01)
27	RT PRK Fuse	15A	Marker Lamp - RF (Z88), Park/Turn Signal Lamp - RF Upper, Park/Turn Signal Lamp - RF Lower, Tail/Stop and Turn Signal Lamp - Lower Right, Tail/Stop and Turn Signal Lamp - Lower Right, Marker Lamp - RR (Z88), License Lamp - Right, Clearance Lamp - RF (R05), Clearance Lamp - RR (R05), Marker Lamp - Tailgate
28	FOG LAMP Fuse	15A	Fog Lamp - Left Front (T96), Fog Lamp - Right Front (T96)
29	HORN Fuse	15A	Horn - Left, Horn - Right (7Z1/YE9)
30	HI HEADLAMP-RT Fuse	10A	Headlamp - Right High Beam
31	DRL Fuse	15A	DRL 2 Fuse
32	HI HEADLAMP-LT Fuse	10A	Headlamp - Left High Beam
33	DRL 2 Fuse	15A	LO HDLP - LT Fuse, LO HDLP - RT Fuse
34	S/ROOF Fuse	30A	Sunroof Module (CF5), Roof Beacon Relay (TRW)
35	DLIS Fuse	2A	Ignition Switch, Theft Deterrent Module (TDM)
36	FRT WPR Fuse	25A	WIPER CONTROL PCB Relay
37	SEO B2 Fuse	30A	Emergency Vehicle Roof Lamp Relay (5Y0)
38	EAP Fuse	15A	PARK ENABLE PCB Relay, ELECTRONIC ADJUSTABLE PEDALS PCB Relay
39	HVAC BATT Fuse	10A	HVAC Control Module
40	AIRBAG IGN Fuse	10A	Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Passenger Air Bag ON/OFF Indicator, Inflatable Restraint I/P Module Disable Switch (C99)
41	AMP Fuse	30A	Audio Amplifier (UQA)
42	RDO Fuse	15A	Digital Radio Receiver (U2K), Radio, Rear Seat Audio (RSA) Control (UK6), Chime Module (UL5)
43	MISC IGN Fuse	10A	Auxiliary Body Control Module (XBCM) (EXP), Stop Lamp Switch, Transfer Case Shift Control Module (NQF/NQH), Trailer Brake Control Module (JL1), serial Data gateway (SDG) Module (HP2)
44	L/GATE RELSE Fuse	15A	Not Used
45	AIRBAG BATT Fuse	15A	Inflatable Restraint Passenger Presence System (PPS) Module, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Vehicle Rollover Sensor (ASF)
46	IPC Fuse	10A	Body Control Module (BCM), Instrument Panel Cluster (IPC)
47	EXP/PTO Fuse	15A	Auxiliary Body Control Module (XBCM) (EXP)/Power Take Off Relay (PTO)
48	AUX HVAC-IGN Fuse	10A	Instrument Panel Cluster (IPC), Inside Rearview Mirror (ISRVM), Heated Steering Wheel Module Control (KA9)
49	CHMSL Fuse	15A	Center High Mounted Stop Lamp (CHMSL)
50	REAR DEFOG Fuse	30A	Rear Window Defogger Grid
51	HTD MIR Fuse	15A	Outside Rearview Mirror - Driver (DL8/DPN without AN3/DL3), Outside Rearview Mirror - Passenger (DL8/DPN without AN3/DL3)
52	SEO B1 Fuse	15A	Auxiliary Body Control Module (XBCM) (EXP), Security Indicator Lamp, Vehicle Inclination Sensor, Vehicle Shock Sensor
53	LTR Fuse	20A	Accessory Power Outlet - I/P 1, Data Link Connector (DLC)
54	SEO/ALC Fuse	10A	Not Used
55	HVAC-IGN Fuse	10A	Air Temperature Actuator - Left (CJ2), Air Temperature Actuator - Right (CJ2), Air Temperature Actuator (C67), Mode Actuator, Recirculation Actuator (CJ2/C67)
56	ECM-IGN Fuse	15A	Engine Control Module (ECM), Fuel Pump Relay - Secondary (LY6 without NQZ), Fuel Pump Flow Control Module (Gas except 4.3L/LY6), Electronic Brake Control Module (EBCM) (HP2)
57	FAN-1 Fuse	40A	FAN LO Relay
58	ALC/COMP Fuse	40A	Not Used
59	HEAVY DUTY ABS Fuse	60A	Electronic Brake Control Module (EBCM)
60	FAN-2 Fuse	40A	FAN HI Relay
61	ABS-1 Fuse	40A	Electronic Brake Control Module (EBCM)
62	STRTR Fuse	40A	Starter
63	STUD-2 Fuse	30A	Blunt Cut Wire, Integrated Trailer Brake Control (JL1)
64	LBEC1 Fuse	60A	BCM Fuse, COOLED SEATS Fuse, DDM Fuse, DIM Fuse, DSM Fuse, REAR HVAC Fuse, RT STOP TRN Fuse, WSW PUMP Fuse, CTSY Fuse, PWR MIR Fuse
65	ELEC RUN BOARD Fuse	30A	Not Used
66	WSW/HTR Fuse	60A	Windshield Washer Solvent Heater (XA7)
67	TREC Fuse	30A	Transfer Case Shift Control Module (NQF/NQH), Transfer Case Encoder Motor (NQH)
68	STUD-1 Fuse	40A	Trailer Wiring
69	MBEC1 Fuse	60A	DRIVER SEAT 2 Circuit Breaker, PASS SEAT 1 Circuit Breaker, PWR REAR WNDW Circuit Breaker, RT DOORS Circuit Breaker
70	HVAC BLWR Fuse	40A	Blower Motor Control Module
71	LGM Fuse	30A	Not Used
72	LBEC2 Fuse	60A	AUX PWR 2 Fuse, REAR WPR Fuse, PDM Fuse, AUX PWR Fuse, REAR SEAT Fuse, STOP LAMPS Fuse, IS LPS Fuse, LT STOP TQN Fuse, OBS DET Fuse, LT DR Circuit Breaker, REAR SEAT ENT Fuse, INFO Fuse, LOCK/UNLCOK PCB Relay
-	A/C CMPRSR Relay	-	A/C CMPRSR Fuse
-	FAN CNTRL Relay	-	Cooling Fan Control
-	FAN HI Relay	-	Cooling Fan - Right
-	FAN LO Relay	-	Cooling Fan - Left
-	FOG LAMP Relay	-	FOG LAMP Fuse
-	FUEL PMP Relay	-	FUEL PUMP Fuse
-	HDLP LO/HID Relay	-	LO HDLP - LT Fuse, LO HDLP - RT Fuse, DRL 2 Fuse
-	PRK LAMP Relay	-	LT PRK Fuse, RT PRK Fuse, TRLR PRK Fuse
-	PWR/TRN Relay	-	ECM/THROT CONT Fuse, ENG Fuse, INJ-A Fuse, INJ-B Fuse, O2-A SNSR Fuse, O2-B SNSR Fuse, FAN CNRTL PCB Relay, FAN HI PCB Relay, FAN LO PCB Relay
-	REAR DEFOG Relay	-	REAR DEFOG Fuse, HTD MIR Fuse
-	RUN/CRNK Relay	-	AIRBAG IGN Fuse, AUX HVAC-IGN Fuse, HVAC-IGN Fuse, ECM-IGN Fuse, MISC IGN Fuse, SEO/ALC Fuse, TRANS IGN 1 Fuse
-	STRTR Relay	-	STRTR Fuse
IMPORTANT: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
-	BCK/UP LAMP PCB Relay	-	VEH BCK/UP Fuse, TRLR BCK/UP Fuse
-	CHMSL Relay	-	CHMSL Fuse
-	DRL PCB Relay	-	DRL Fuse
-	FRT WASH PCB Relay	-	FRT WASH Fuse
-	HI BEAM PCB Relay	-	HI HEADLAMP - LT Fuse, HI HEADLAMP - RT Fuse
-	HORN PCB Relay	-	HORN Fuse
-	L/GATE PCB Relay	-	L/GATE RELSE Fuse
-	LOCK PCB Relay	-	LCK 2 Fuse (YE9)
-	LOCK/UNLOCK PCB Relay	-	LCK 1 Fuse, LCK 2 Fuse, UNLCK 1 Fuse, UNLCK 2 Fuse (AU3 without YE9)
-	REAR WASH PCB Relay	-	REAR WASH Fuse
-	TRLR LT STOP/TURN PCB Relay	-	TRLR STOP LT Fuse
-	TRLR RT STOP/TURN PCB Relay	-	TRLR STOP RT Fuse
-	UNLOCK PCB Relay	-	DRV UNLCK Fuse, UNLCK 1 Fuse, UNLCK 2 Fuse
-	WIPER CONTROL PCB Relay	-	Windshield Wiper Motor
-	WIPER SPEED PCB Relay	-	Windshield Wiper Motor
IMPORTANT: Items listed below are Wiper System diagnostic testing points
-	TP92	-	Wiper High Speed Test Point
-	TP95	-	Wiper Low Speed Test Point
