4HI Mode Power Flow

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

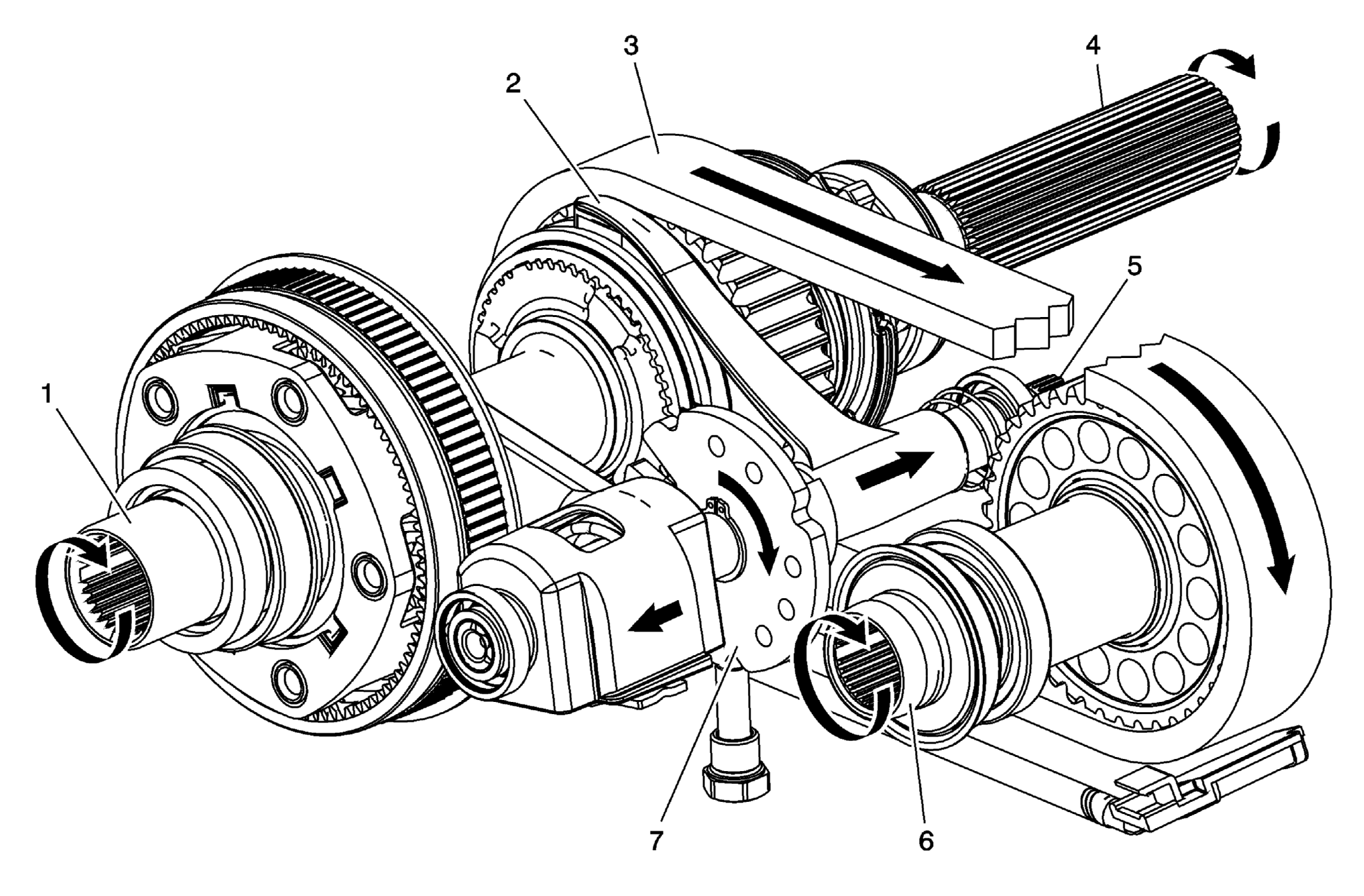

Fig 1: Identifying 4HI Mode Power Flow Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Input Shaft
2	Two/Four Shift Fork
3	Drive Chain
4	Rear Output Shaft
5	Control Actuator Shaft
6	Front Output Shaft
7	Drive Actuator Cam

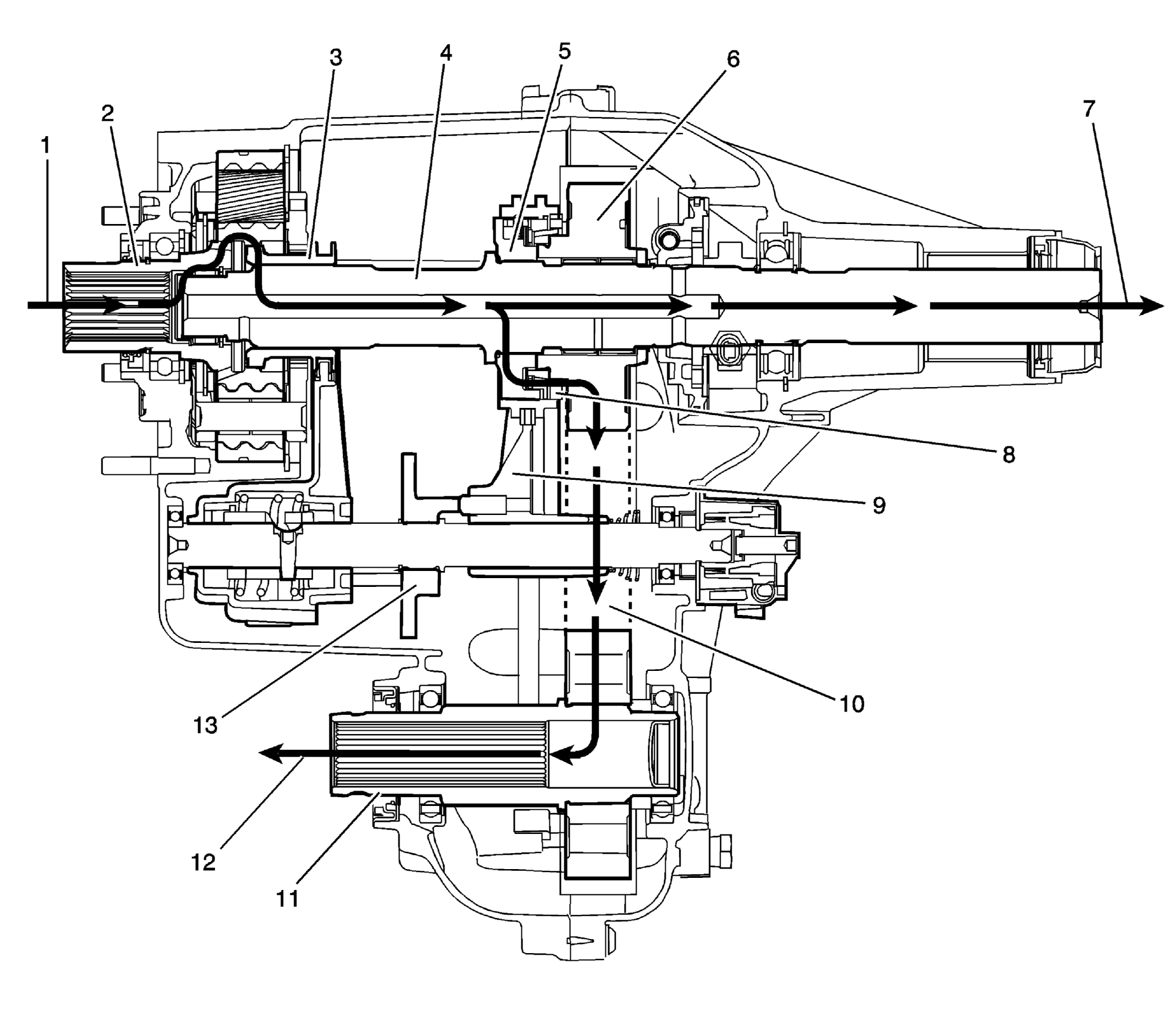

Fig 2: View Of 4HI Mode Power Flow

Courtesy of GENERAL MOTORS CORP.

In 4HI mode, the engine power from the transmission (1) is delivered to the input shaft (2). The engagement teeth on the inside of the input shaft (2) are engaged to the outer teeth on the high/low clutch (3). The high/low clutch (3) is slip splined to the rear output shaft (4). During a shift mode from 2HI to 4HI, the cam profile on the 2/4 wheel drive actuator cam (13) pushes the 2/4 wheel drive mode shift fork (9) and the synchronizer sleeve. The sleeve, engaging the synchronizer (8), equalizes the front propeller shaft (12) and rear propeller shaft (7) speeds. The sleeve then engages to the drive sprocket (6). The engine power flow for driving the front propeller shaft (12), now travels from the rear output shaft (4) to the synchronizer hub (5), which is splined to the rear output shaft (4). The power flows from the synchronizer hub (5) to the sleeve and then to the drive sprocket (6). The power flow is transmitted by a chain (10) to the driven sprocket on the front output shaft (11) and to the front propeller shaft (12). The front and rear propeller shafts are being driven at equal RPM, therefore giving a four wheel drive mode. This mode should only be used for extra traction. Using this mode on dry pavement causes tire scuffing when turning.
