Passenger Seat Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 6-Way Power Circuit Schematic (Except AN3/HP2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: 6-Way Power Circuit Schematic (HP2)

Courtesy of GENERAL MOTORS CORP.

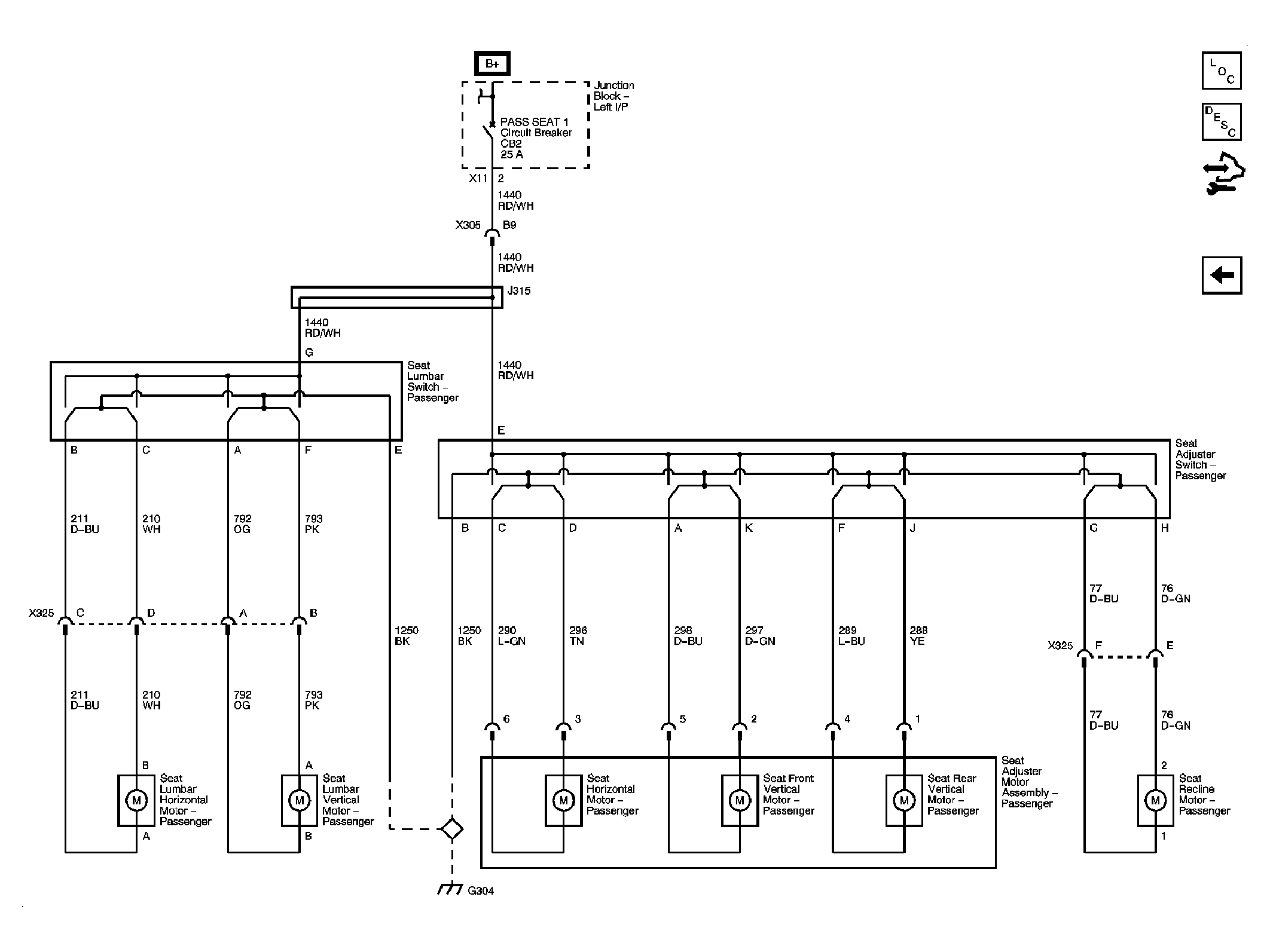

Fig 3: 8-Way Power Circuit Schematic (AN3)

Courtesy of GENERAL MOTORS CORP.
