Disassemble Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel drive shaft. Refer to Wheel Drive Shaft Replacement (2500) or Wheel Drive Shaft Replacement (1500) .

Fig 1: View Of Tripot Housing, Boot & Clamp

Courtesy of GENERAL MOTORS CORP.

NOTE: Use caution when removing the tripot housing (1).

Using the appropriate tool, remove the boot clamp (2).
Remove the tripot housing (1).

NOTE: If using denatured alcohol or any other recommend cleaning solvent, allow the tripot housing to air dry.

Remove any grease from of the housing (1).

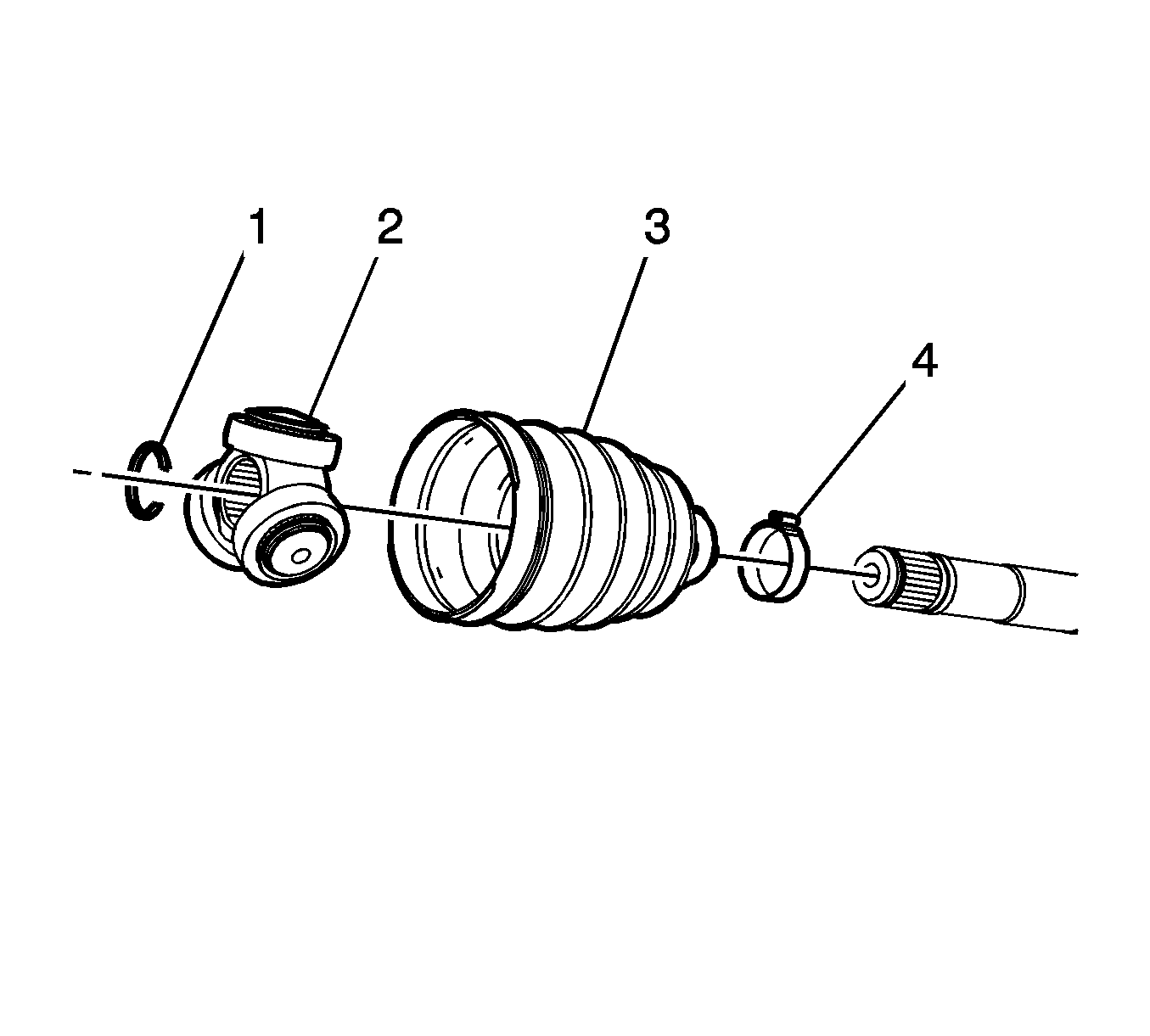

Fig 2: View Of Spider Assembly, Boot & Retaining Ring

Courtesy of GENERAL MOTORS CORP.

Using side cutters, remove the small boot retaining clamp (4).
Using the appropriate tool, remove the retaining ring (1), then the spider assembly (2), and the boot (3).

Fig 3: Identifying Seal Area Mounting Grooves

Courtesy of GENERAL MOTORS CORP.

Using the appropriate tool, remove the any rust in the seal mounting area (grooves) (1).
If any of the internal components of the tripot assembly are found to be damaged or have excessive wear, replace the tripot as an assembly.
