Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

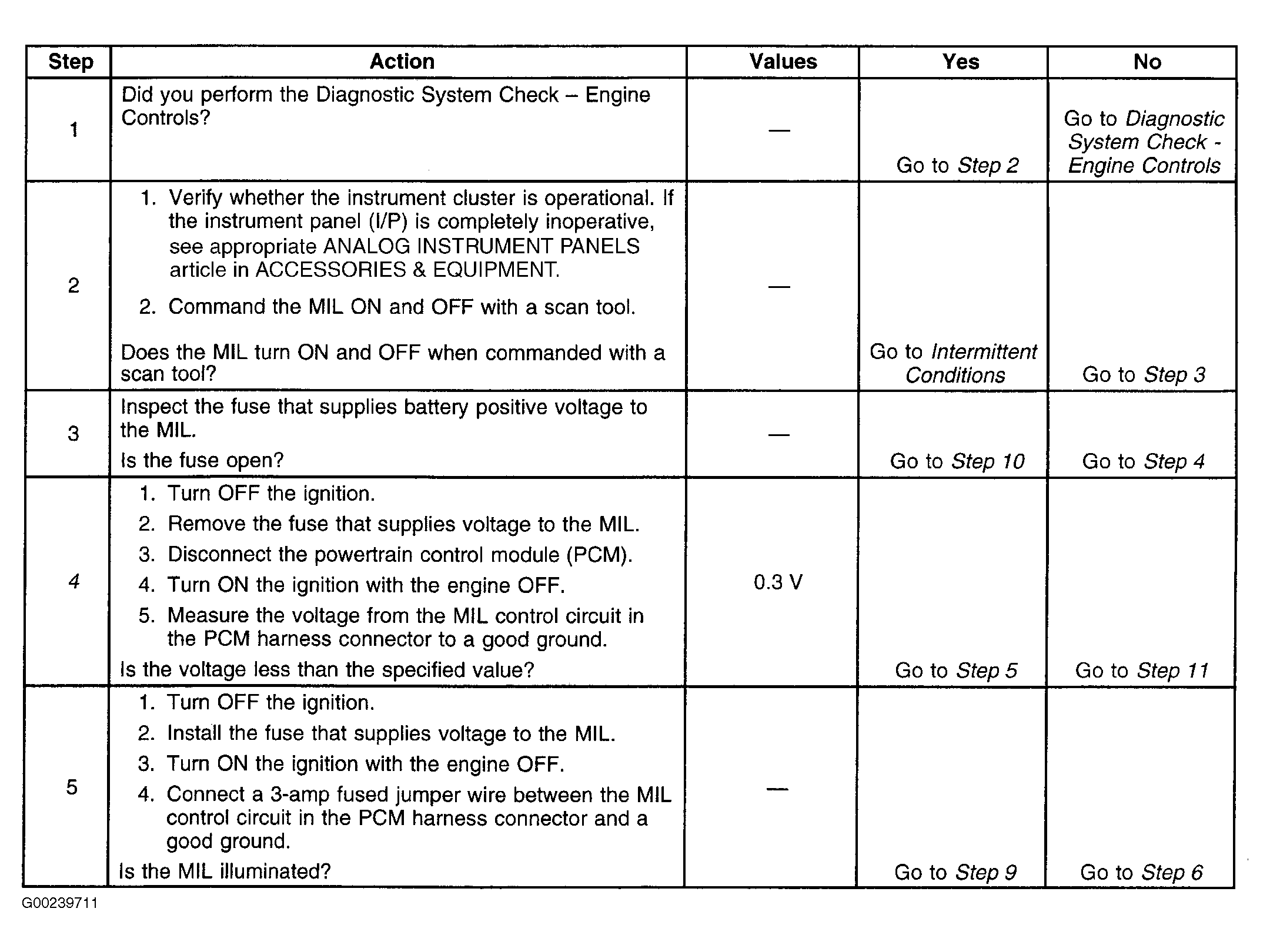

Fig 1: Malfunction Indicator Light (MIL) Inoperative (Steps 1-5)
G00239711Courtesy of GENERAL MOTORS CORP.

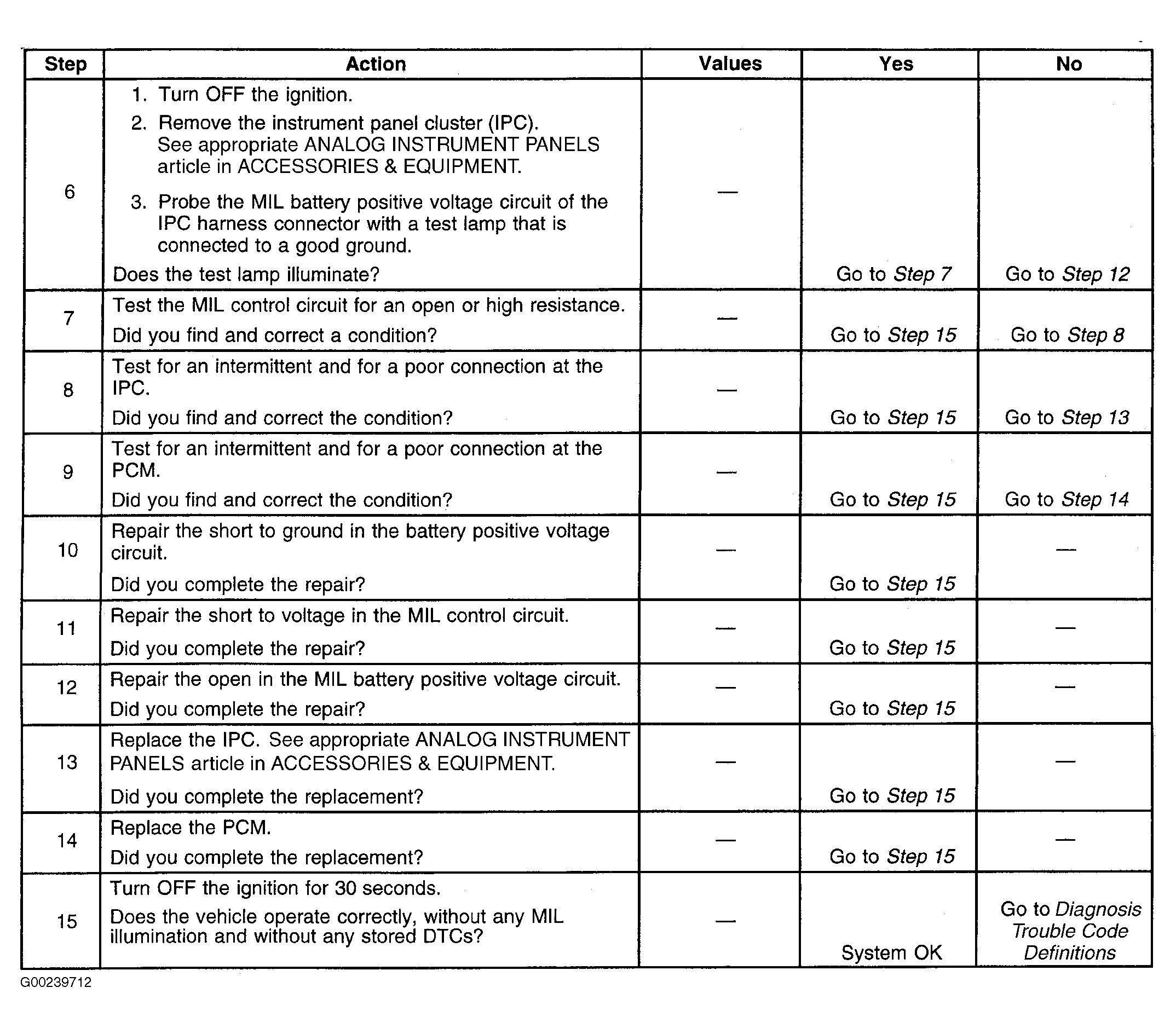

Fig 2: Malfunction Indicator Light (MIL) Inoperative (Steps 6-15)
G00239712Courtesy of GENERAL MOTORS CORP.
