WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

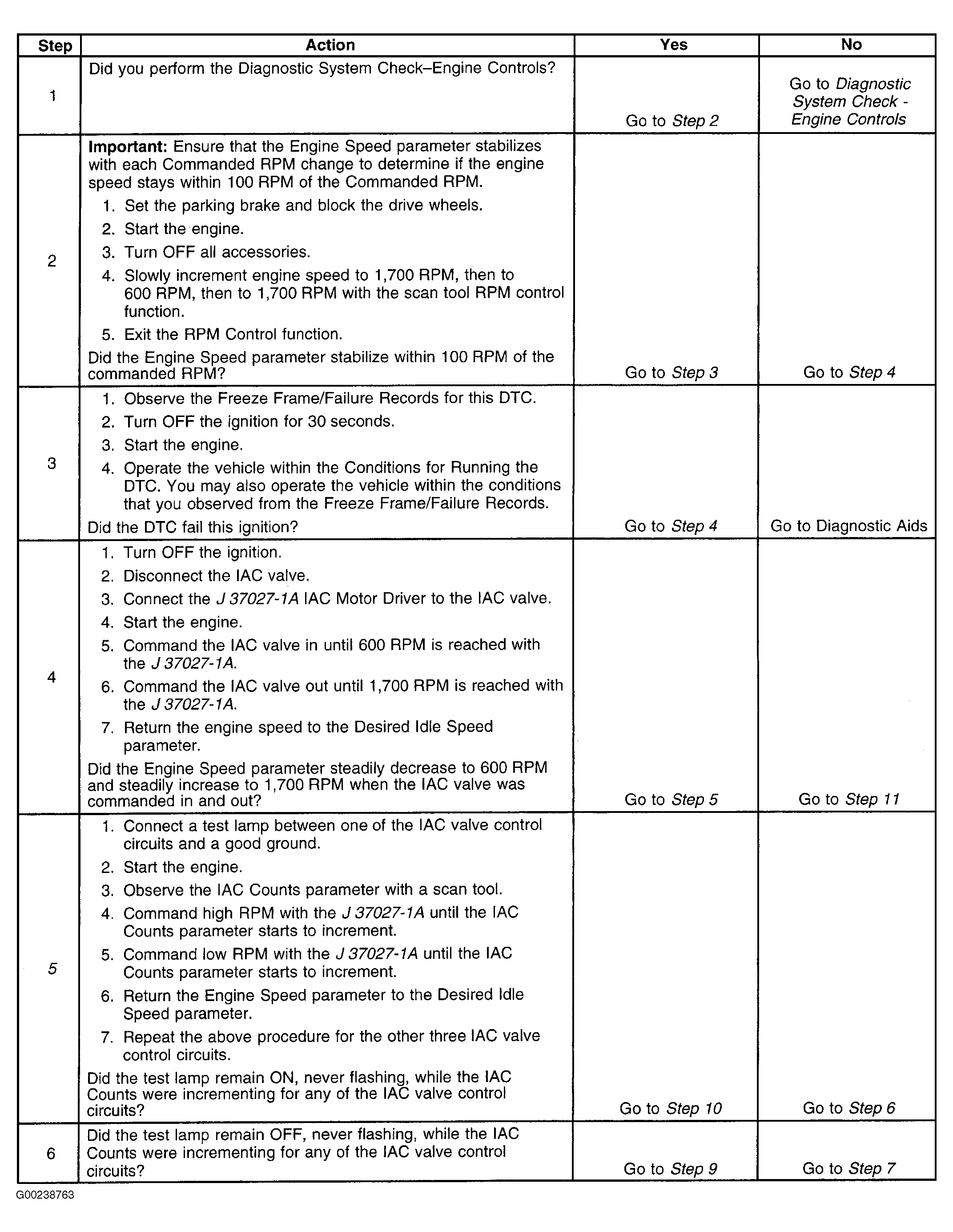

Fig 1: DTC P0506: Idle Control System - Low RPM (Steps 1-6)
Courtesy of GENERAL MOTORS CORP.

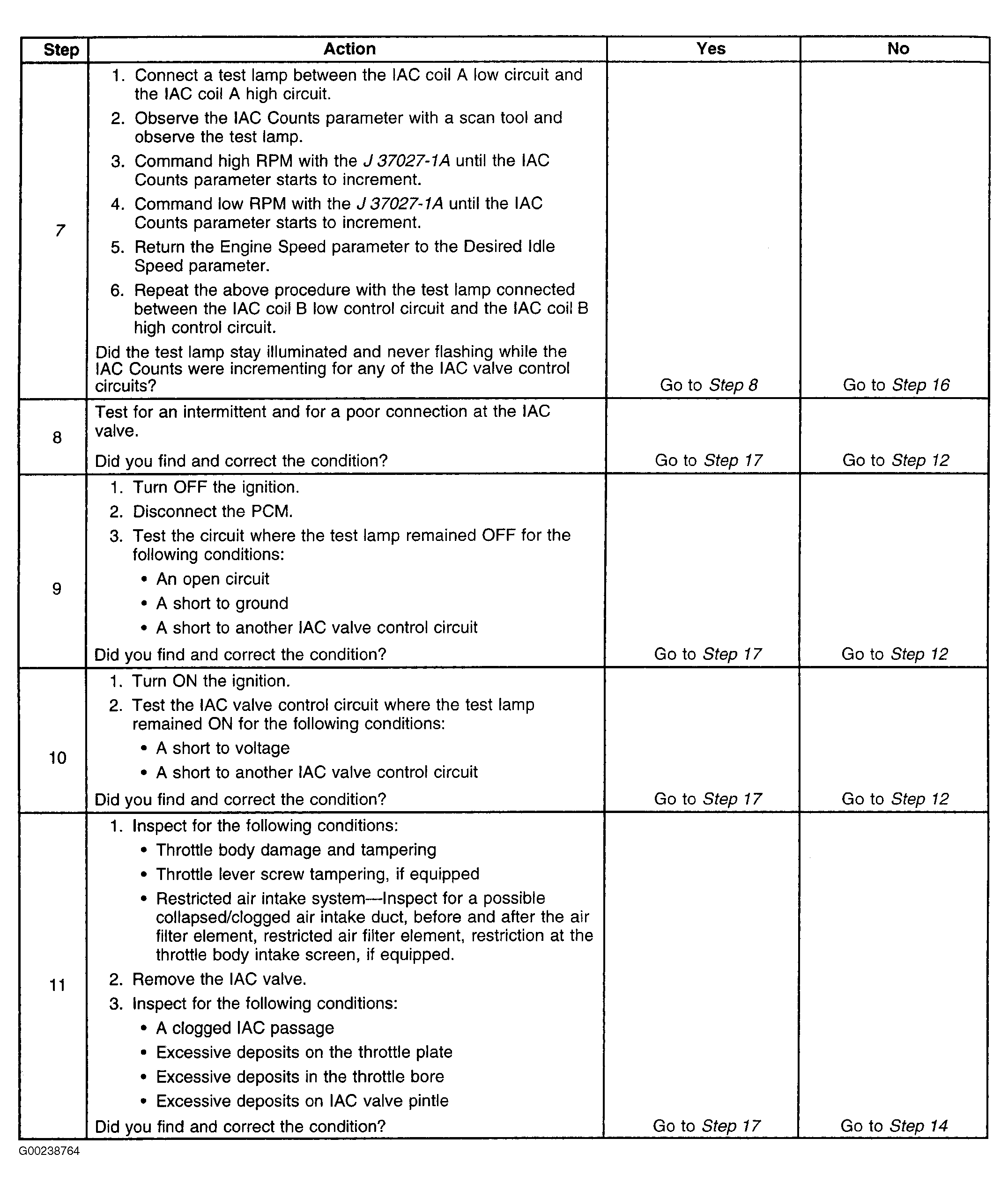

Fig 2: DTC P0506: Idle Control System - Low RPM (Steps 7-11)
Courtesy of GENERAL MOTORS CORP.

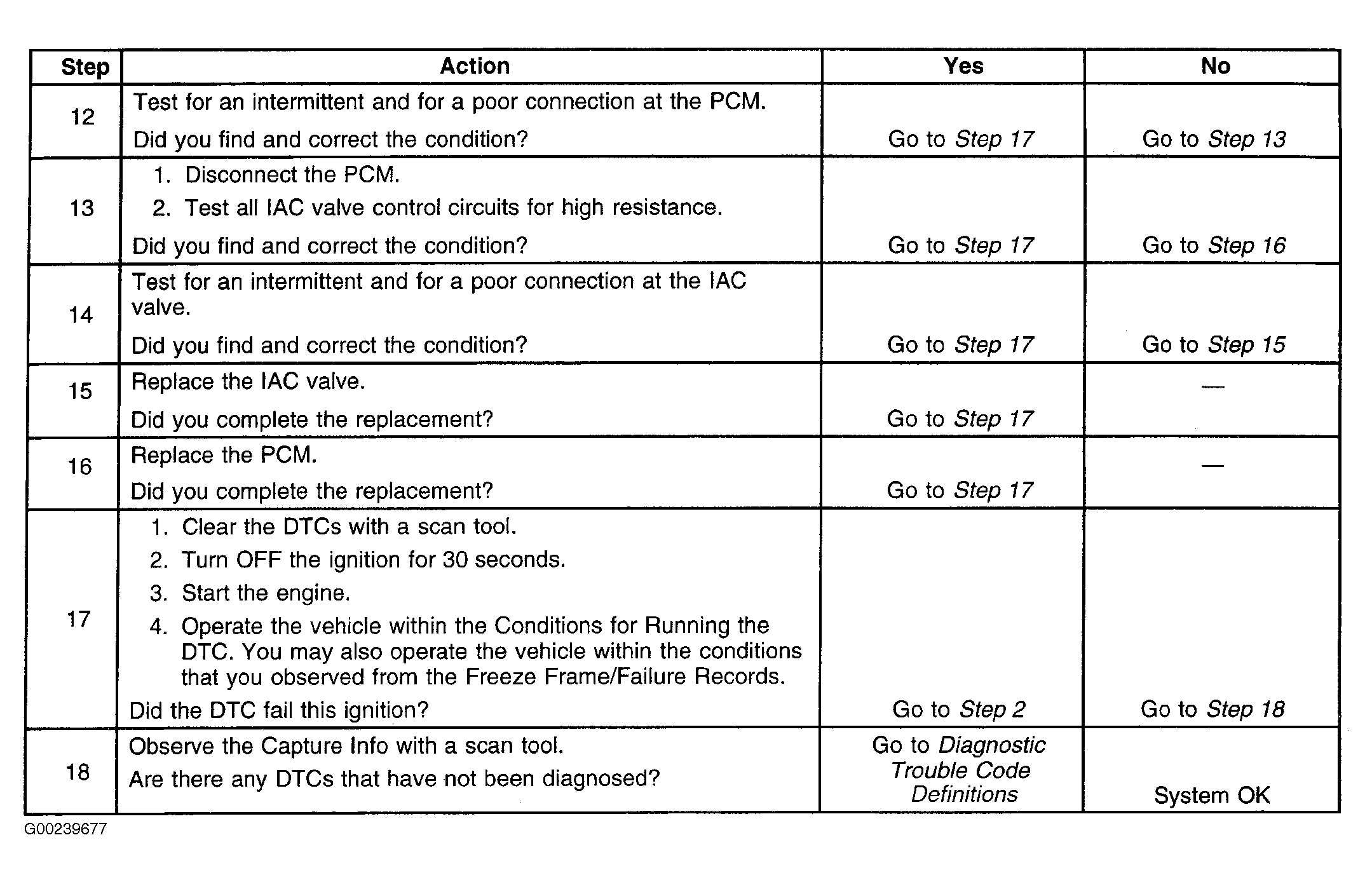

Fig 3: DTC P0506: Idle Control System - Low RPM (Steps 12-18)
