Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

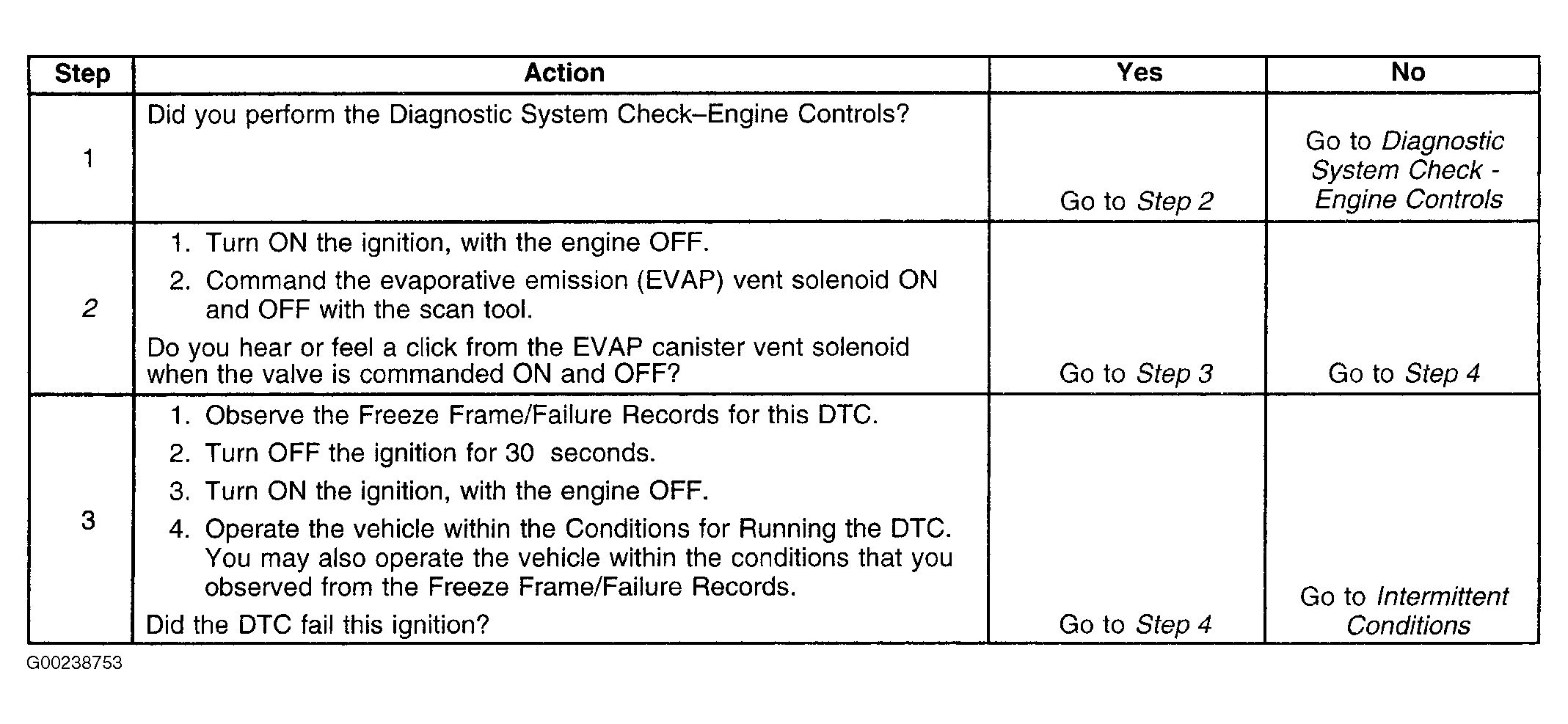

Fig 1: DTC P0449: EVAP Canister Vent Solenoid Valve Control Circuit (Steps 1-3)

Courtesy of GENERAL MOTORS CORP.

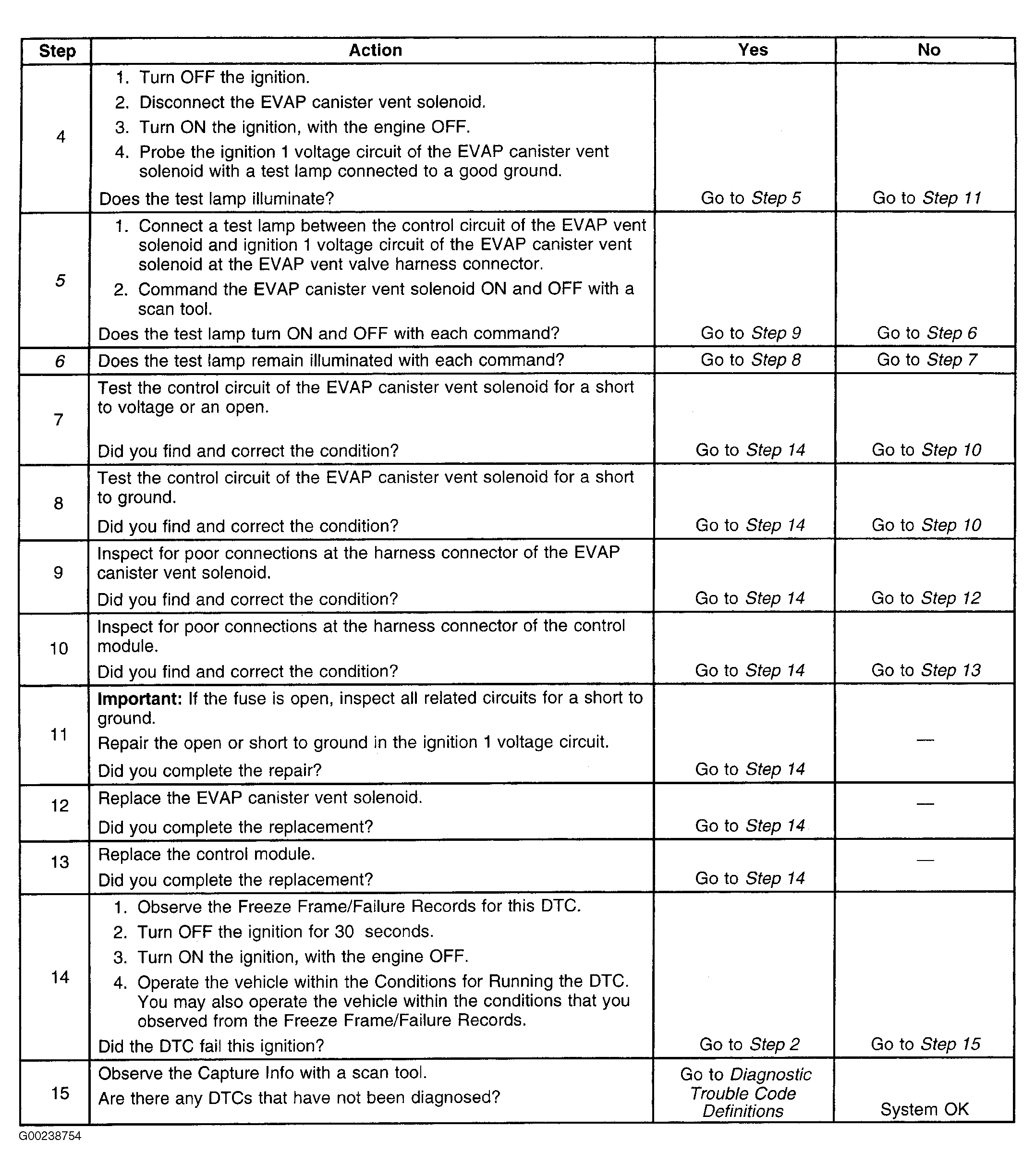

Fig 2: DTC P0449: EVAP Canister Vent Solenoid Valve Control Circuit (Steps 4-15)

Courtesy of GENERAL MOTORS CORP.
