Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

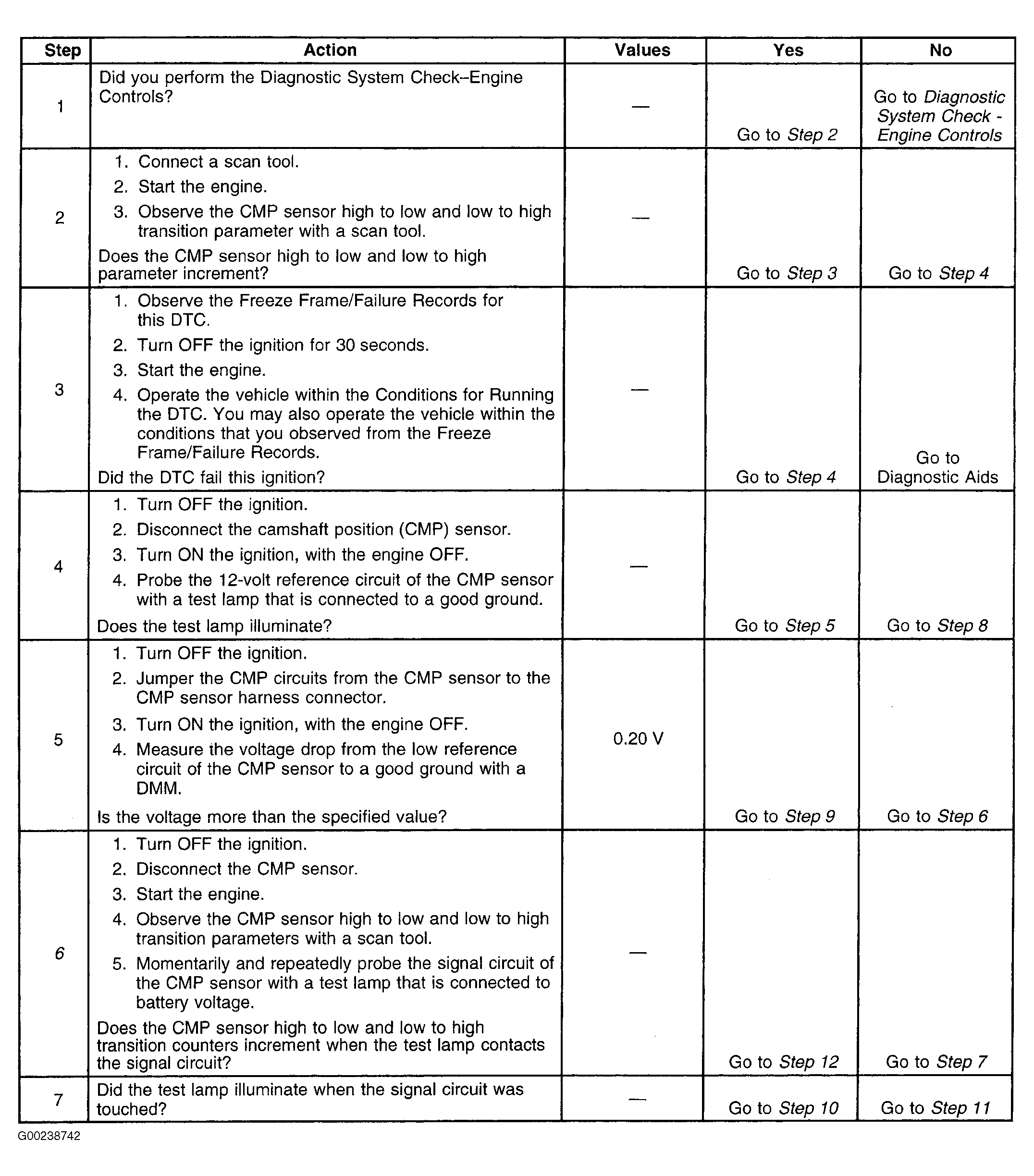

Fig 1: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

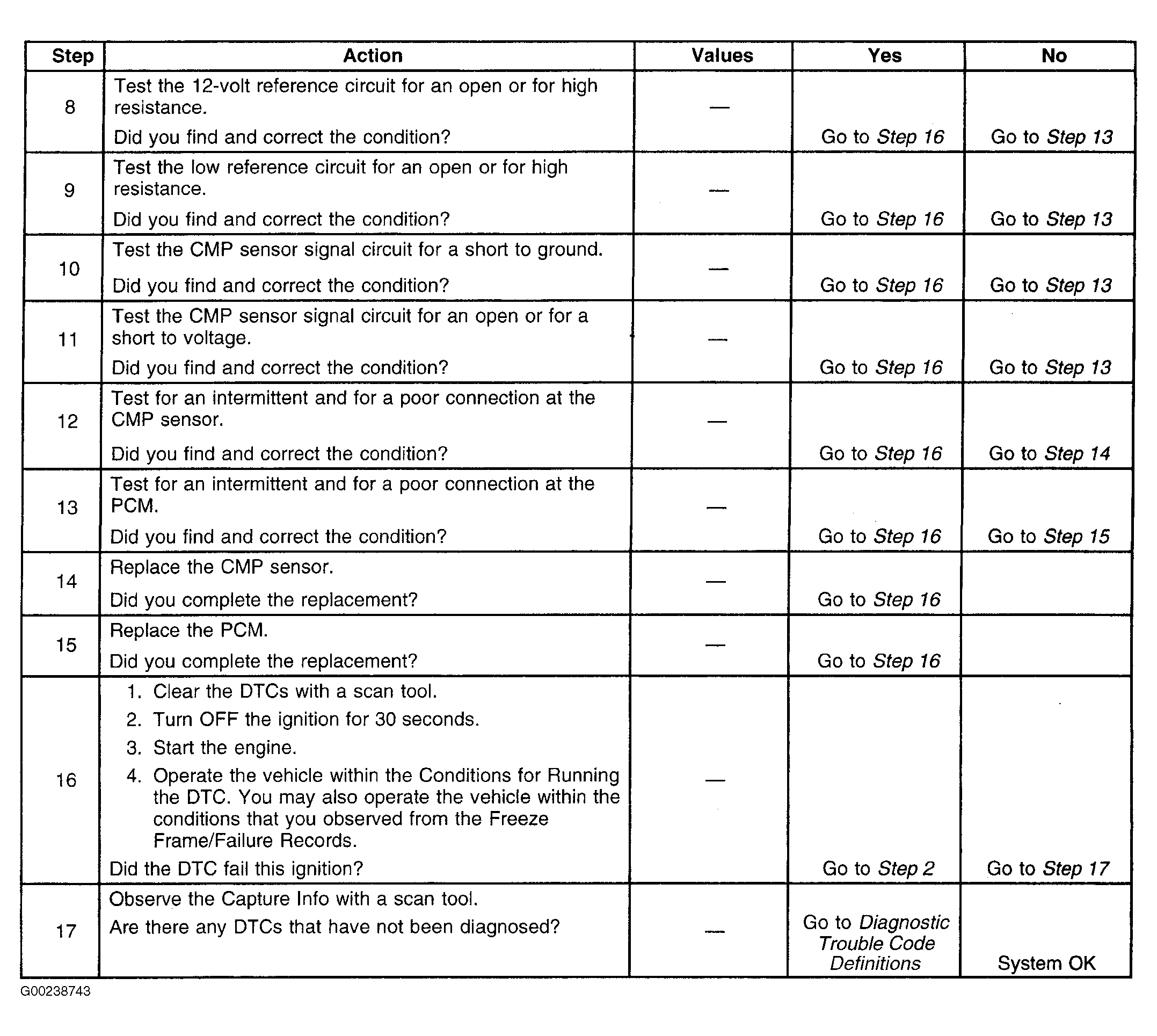

Fig 2: DTC P0341: Camshaft Position Sensor Circuit Performance (Steps 8-17)

Courtesy of GENERAL MOTORS CORP.
