Diagnostic Procedure

WARNING: This page is about a different car, the 2003 GMC Savana and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

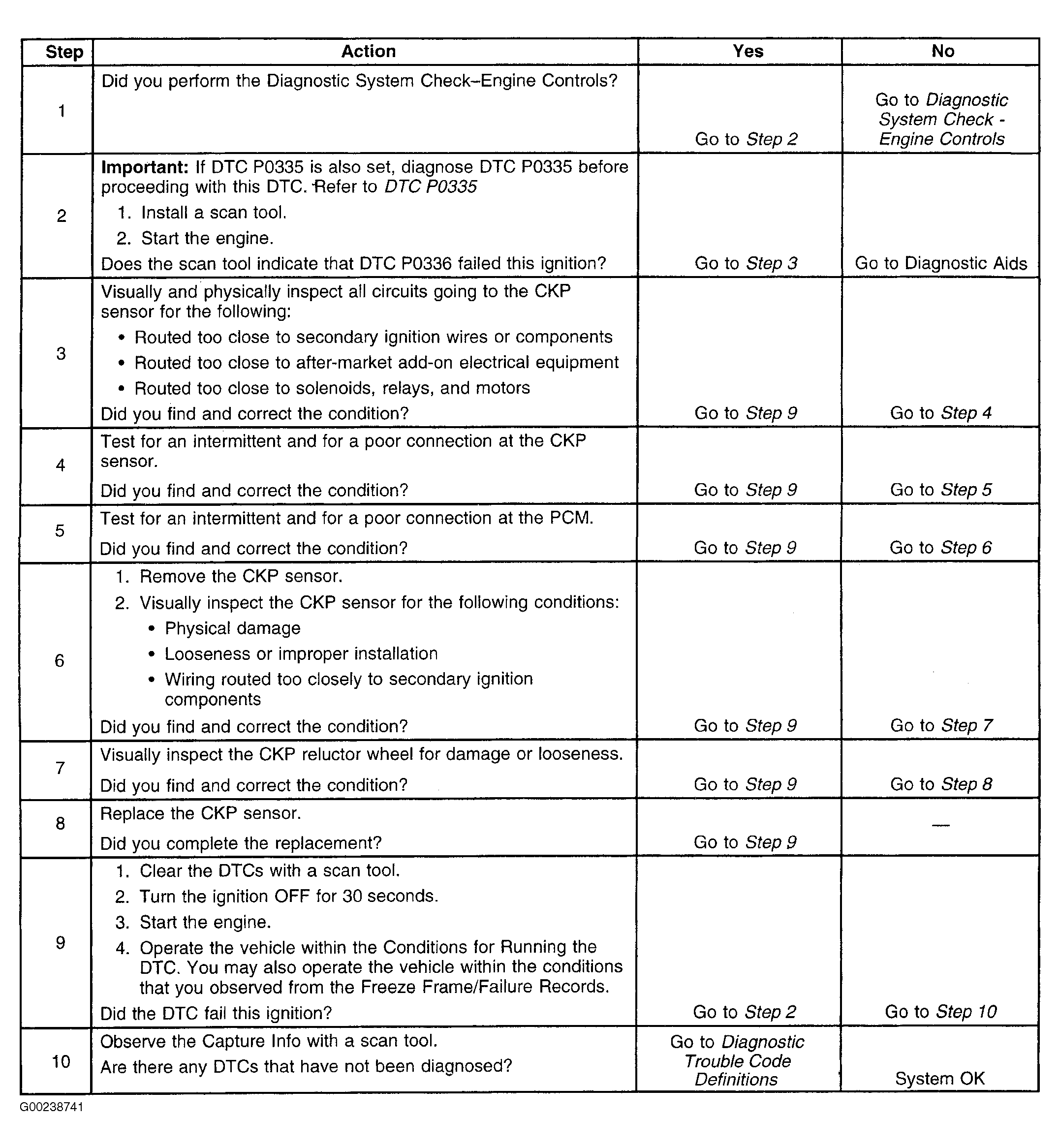

Fig 1: DTC P0336: Crankshaft Position Sensor Circuit Performance
G00238741Courtesy of GENERAL MOTORS CORP.
