Rear Brake Hose Replacement (Frame to Axle - JH6, JH7)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

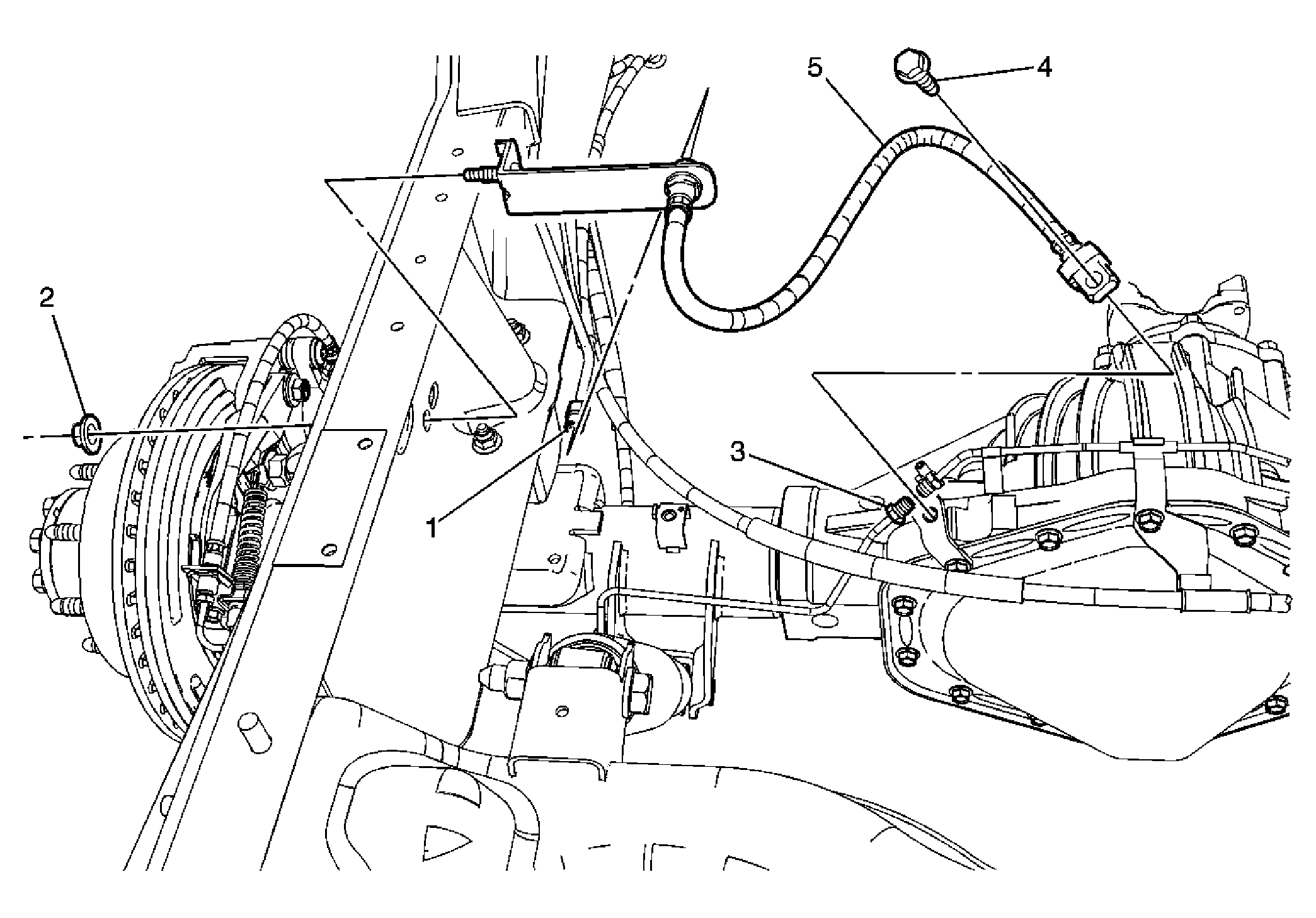

Fig 1: Rear Brake Hose Replacement (Frame to Axle - JH6, JH7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Brake Pipe Fitting CAUTION: Refer to Fastener Caution . Procedure Remove any dirt or debris from the brake pipe fitting. Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft)
2	Hose Bracket to Frame Nut Tighten: 25 N.m (18 lb ft)
3	Brake Pipe Fitting (Qty: 2) Procedure Remove any dirt or debris from the brake pipe fittings. Cap the brake pipe fittings to prevent brake fluid loss and contamination. Tighten: 25 N.m (18 lb ft)
4	Hose to Rear Axle Bolt Tighten: 25 N.m (18 lb ft)
5	Rear Brake Hose Assembly Procedure: Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) or Hydraulic Brake System Bleeding (Two-mode Hybrid) .
