Outside Rearview Mirror Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

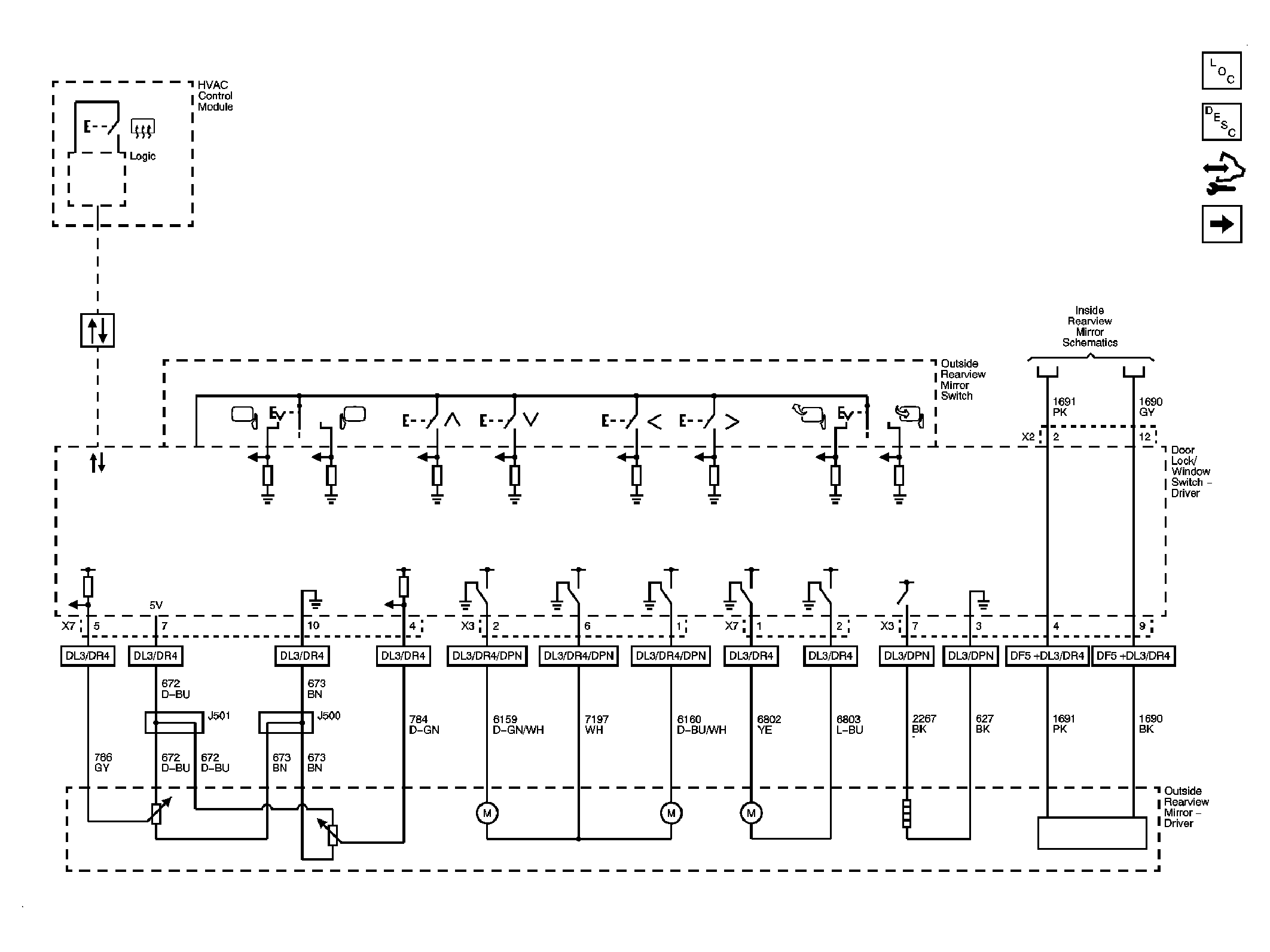

Fig 1: Outside Rearview Mirror Circuit Schematic - Driver (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

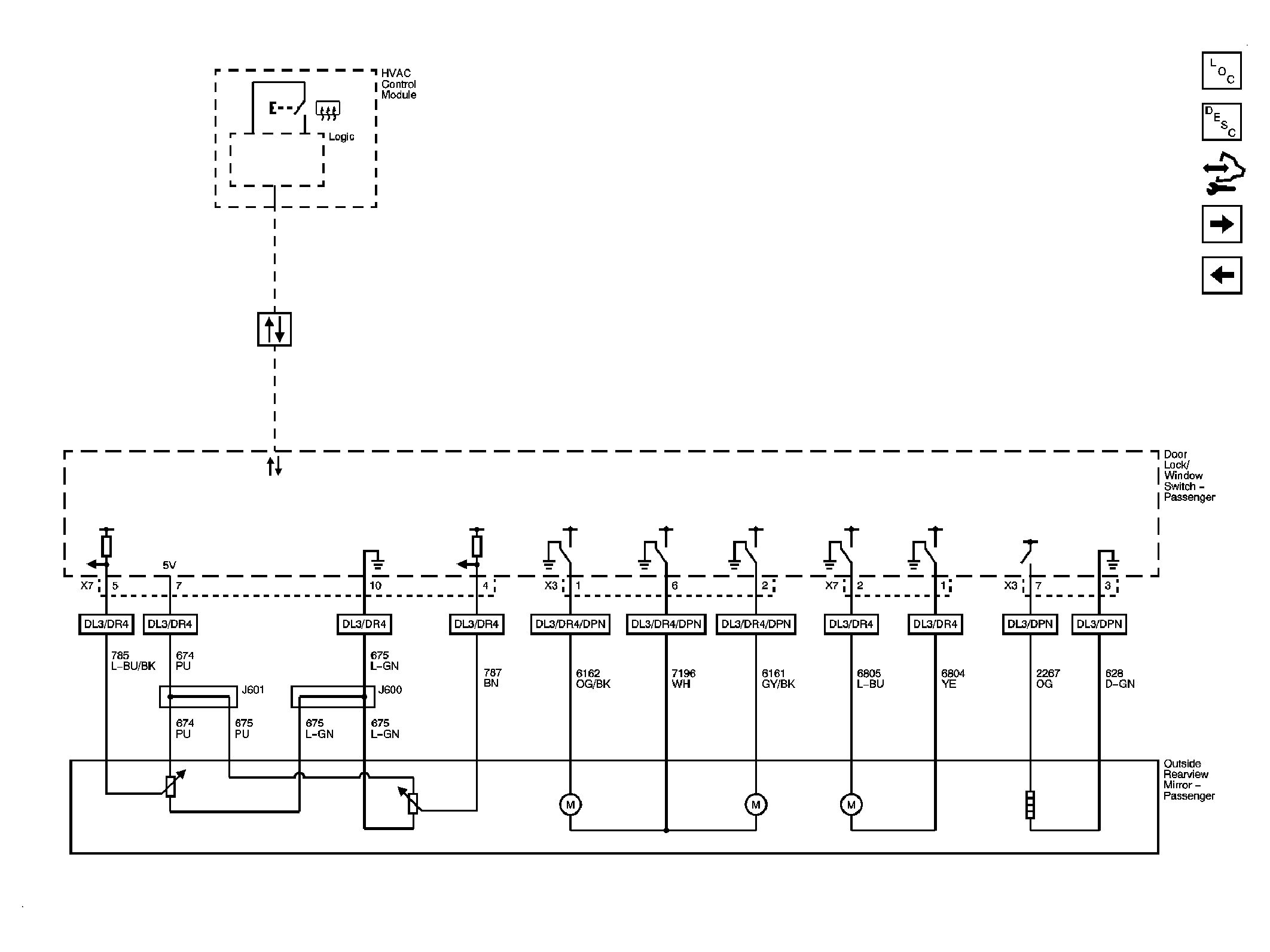

Fig 2: Outside Rearview Mirror Circuit Schematic - Passenger (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

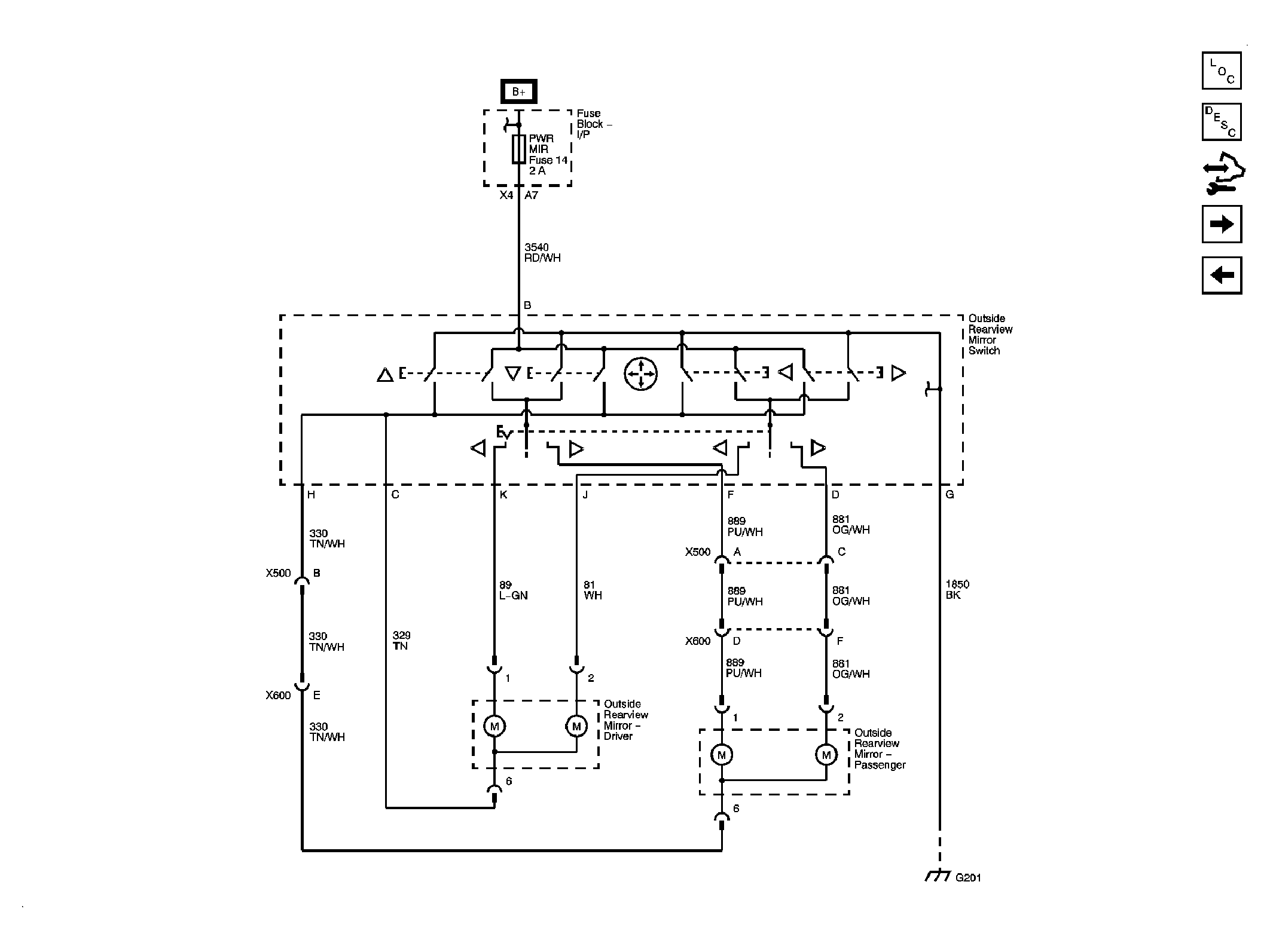

Fig 3: Position Controls Circuit Schematic (DL8/DPN without AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Heat Circuit Schematic (DL8/DPN without AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
