Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying EVAP Canister & Bracket
    GM1855746Courtesy of GENERAL MOTORS CORP.
  1. If replacing the EVAP canister perform the following steps, otherwise proceed to step 3.
  2. Install the EVAP canister bracket to the canister.

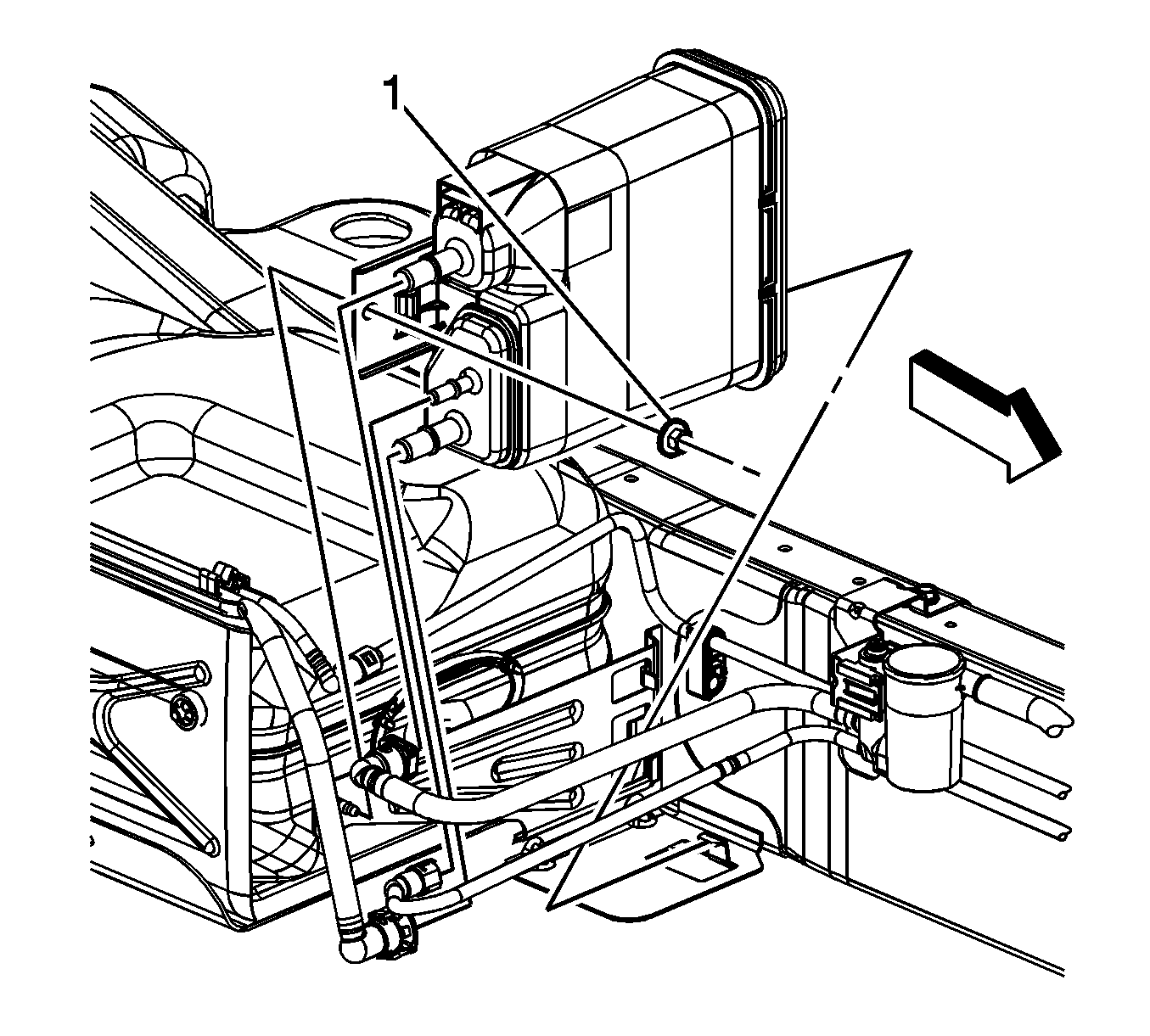

    3. Fig 2: Identifying EVAP Canister & Nut
    GM1855669Courtesy of GENERAL MOTORS CORP.
  3. Install the EVAP canister assembly.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the EVAP canister nut (1).

    Tighten:  Tighten the nut to 25 N.m (18 lb ft).

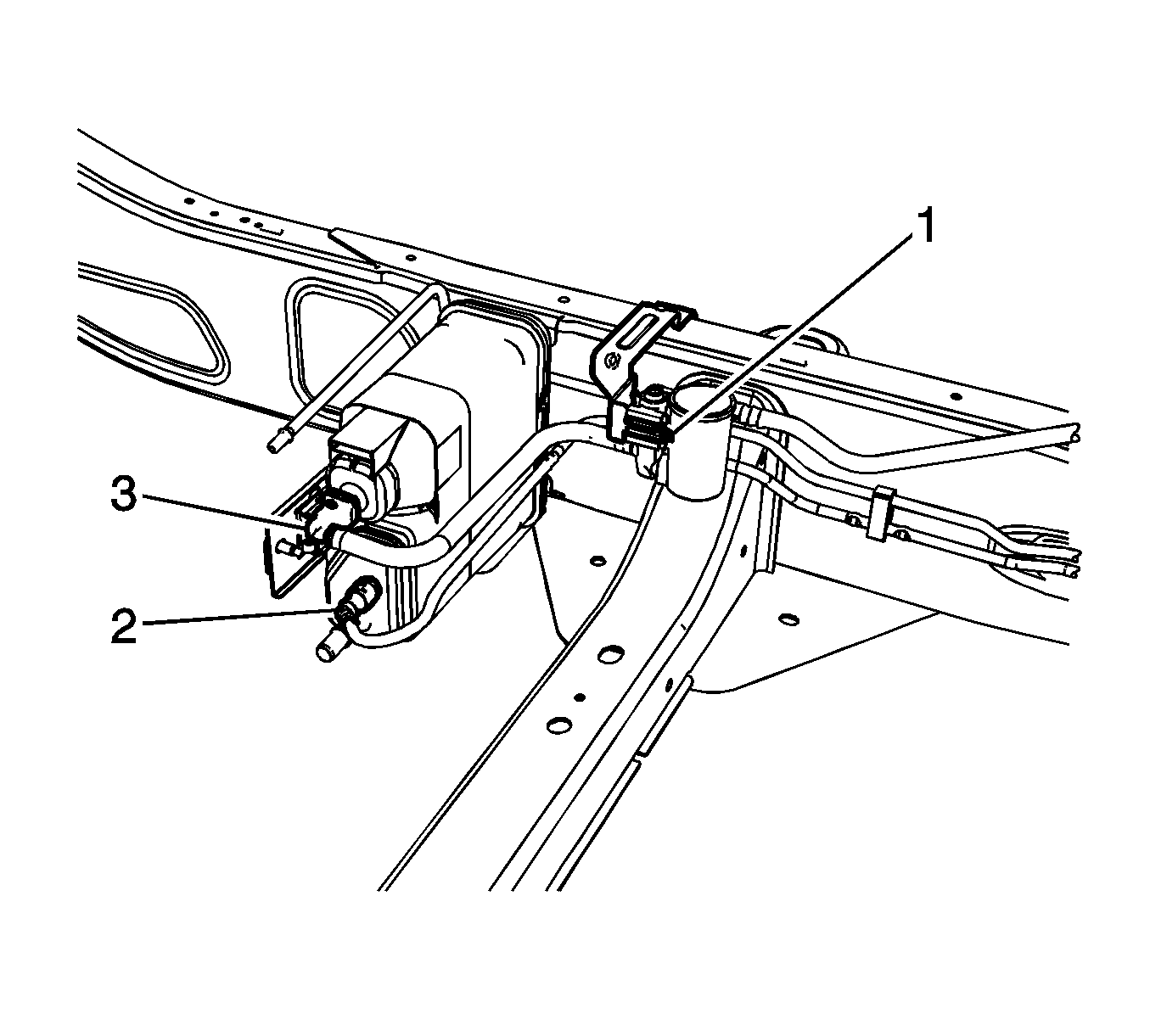

    5. Fig 3: Identifying EVAP Vent Solenoid Pipe Quick Connect Fitting, Retainer & Pipe Clip
    GM1855666Courtesy of GENERAL MOTORS CORP.
  5. Connect the EVAP canister vent solenoid pipe quick connect fitting (3) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
    6. Fig 4: Identifying Quick Connect Fittings
    GM1854683Courtesy of GENERAL MOTORS CORP.
  6. Connect the chassis EVAP pipe quick connect fitting (2) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  7. Connect the fuel tank EVAP pipe quick connect fitting (3) to the EVAP canister. Refer to Plastic Collar Quick Connect Fitting Service .
  8. Lower the vehicle.
