Moveable Window Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

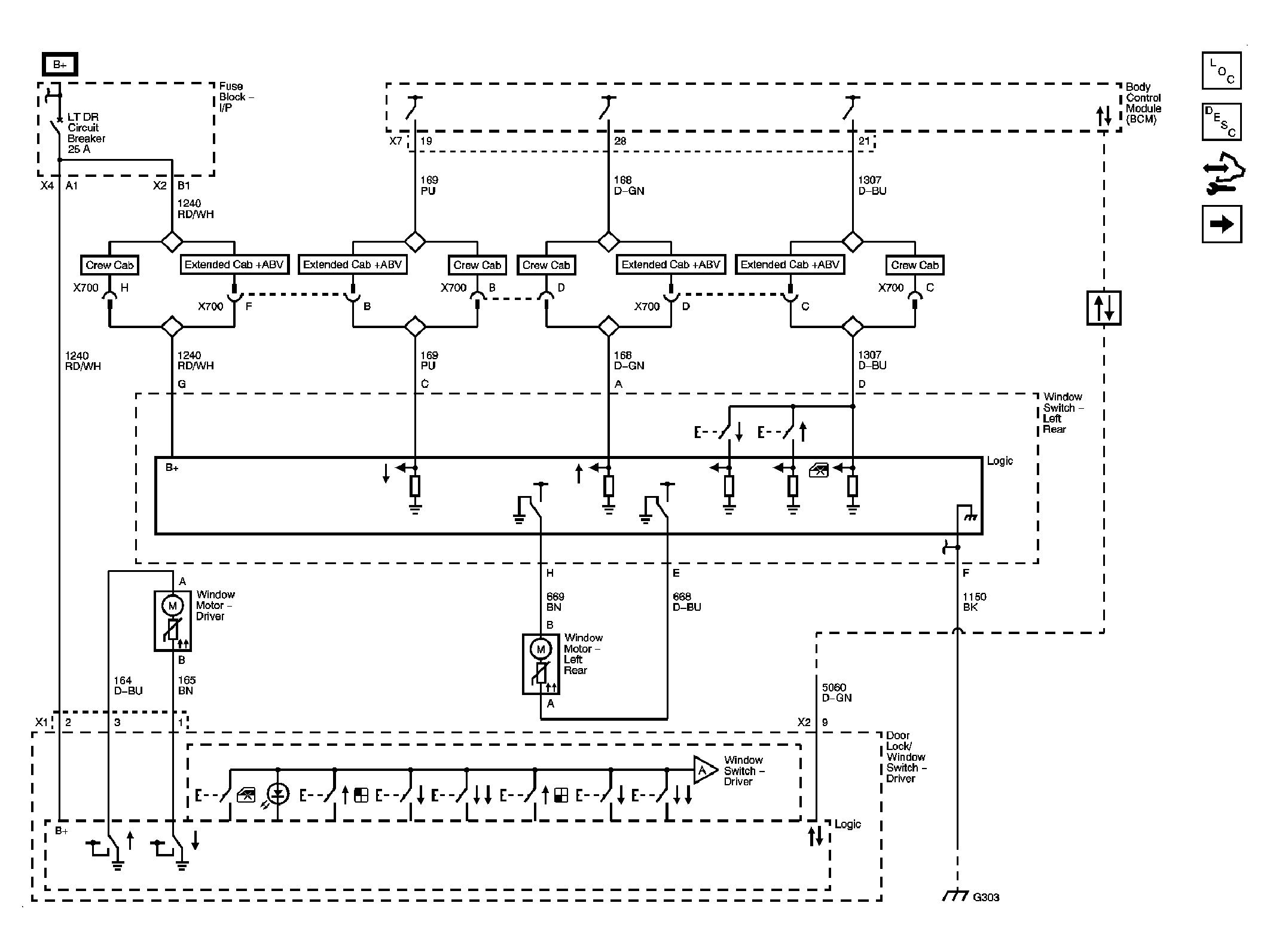

Fig 1: Left Doors Circuit Schematic (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

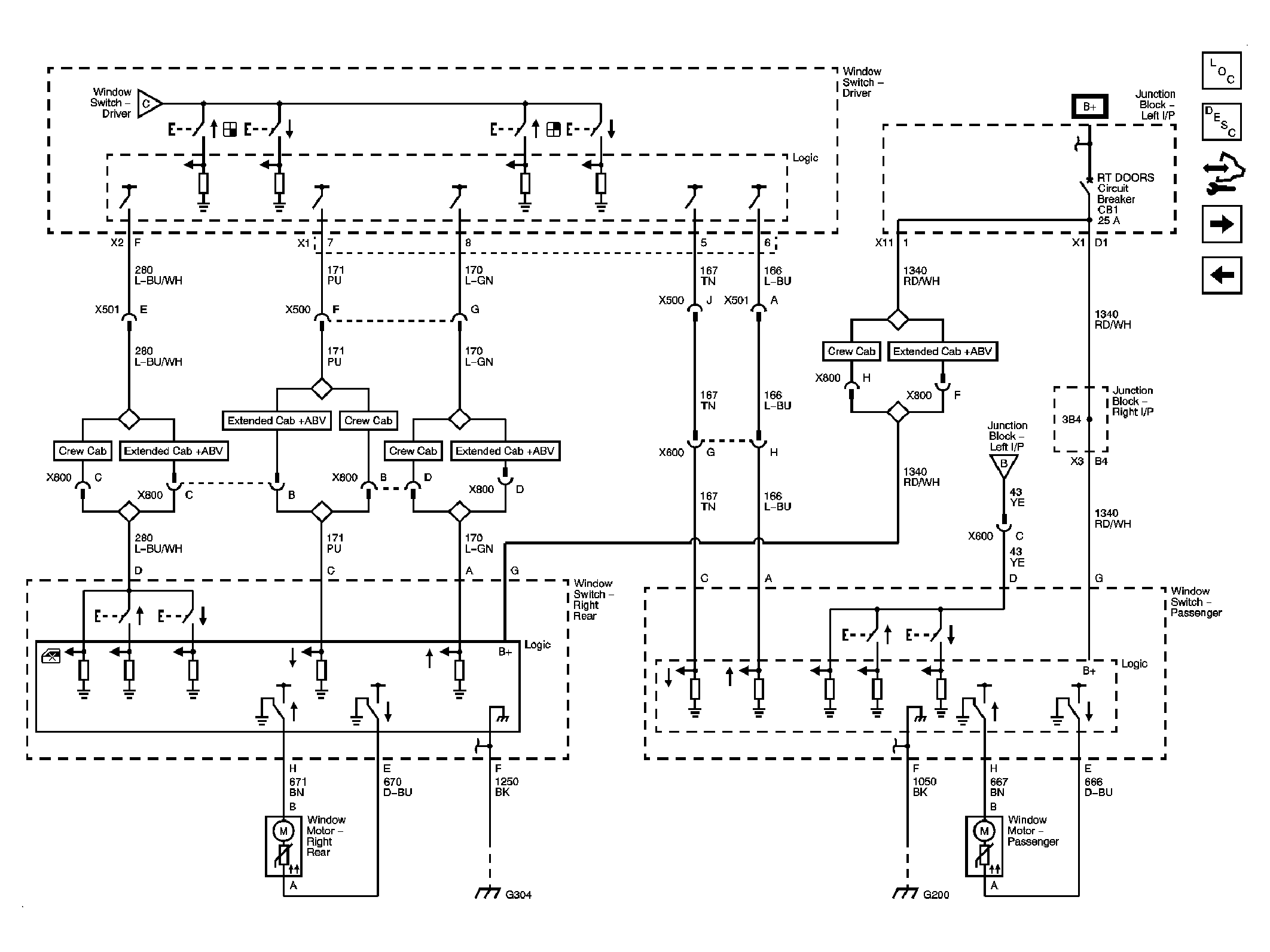

Fig 2: Right Doors Circuit Schematic (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

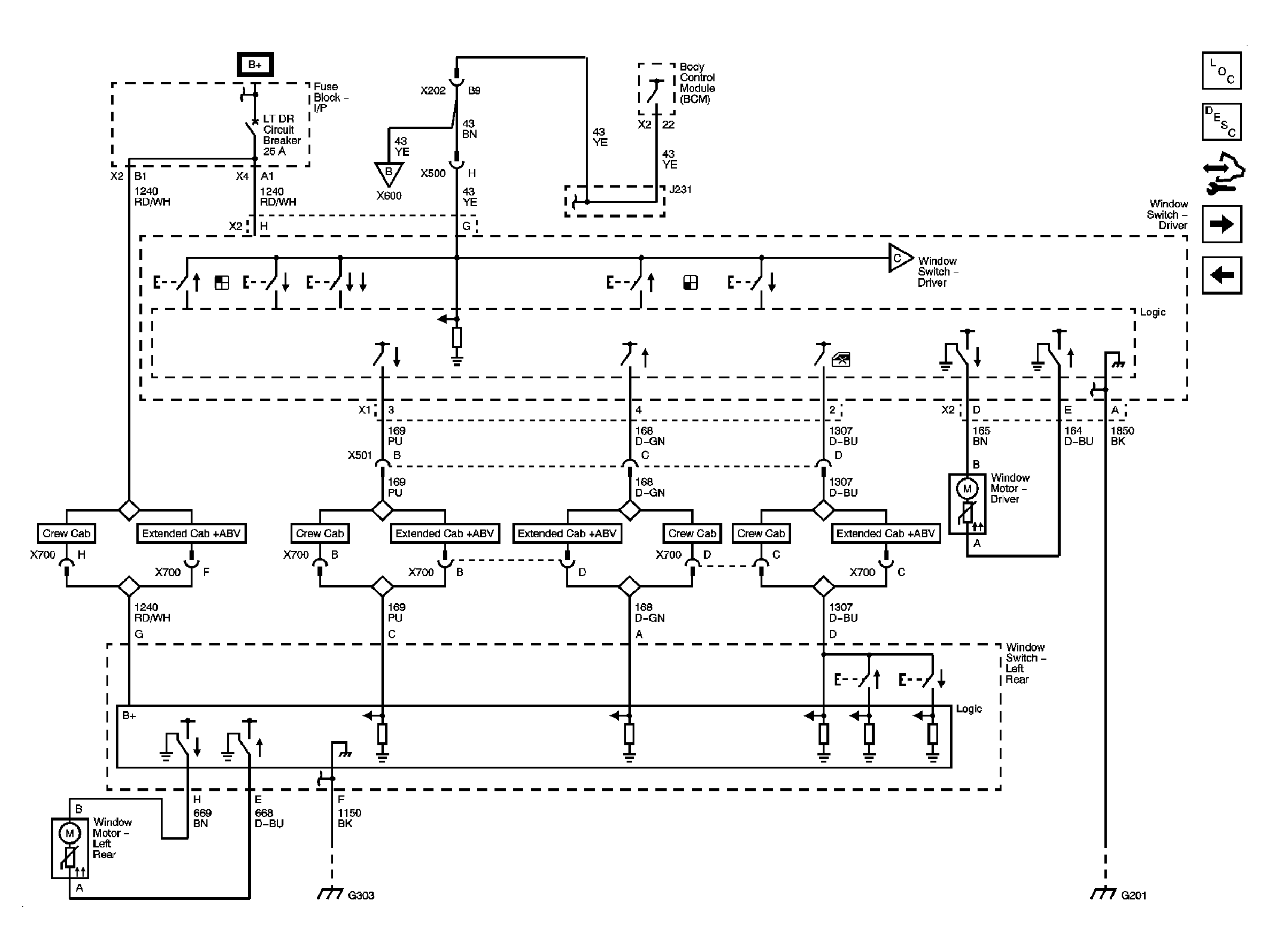

Fig 3: Left Doors Circuit Schematic (except AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

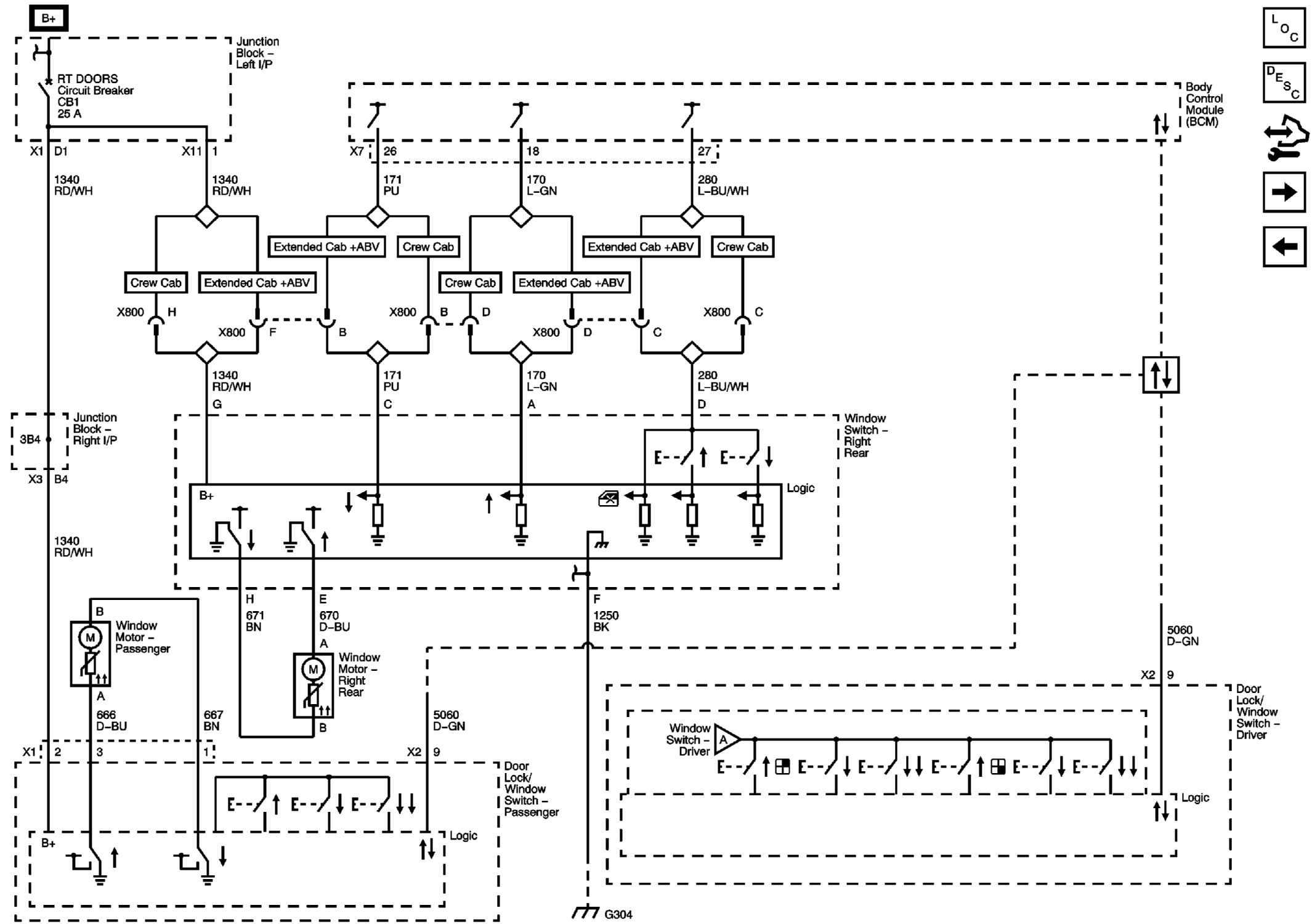

Fig 4: Right Doors Circuit Schematic (except AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

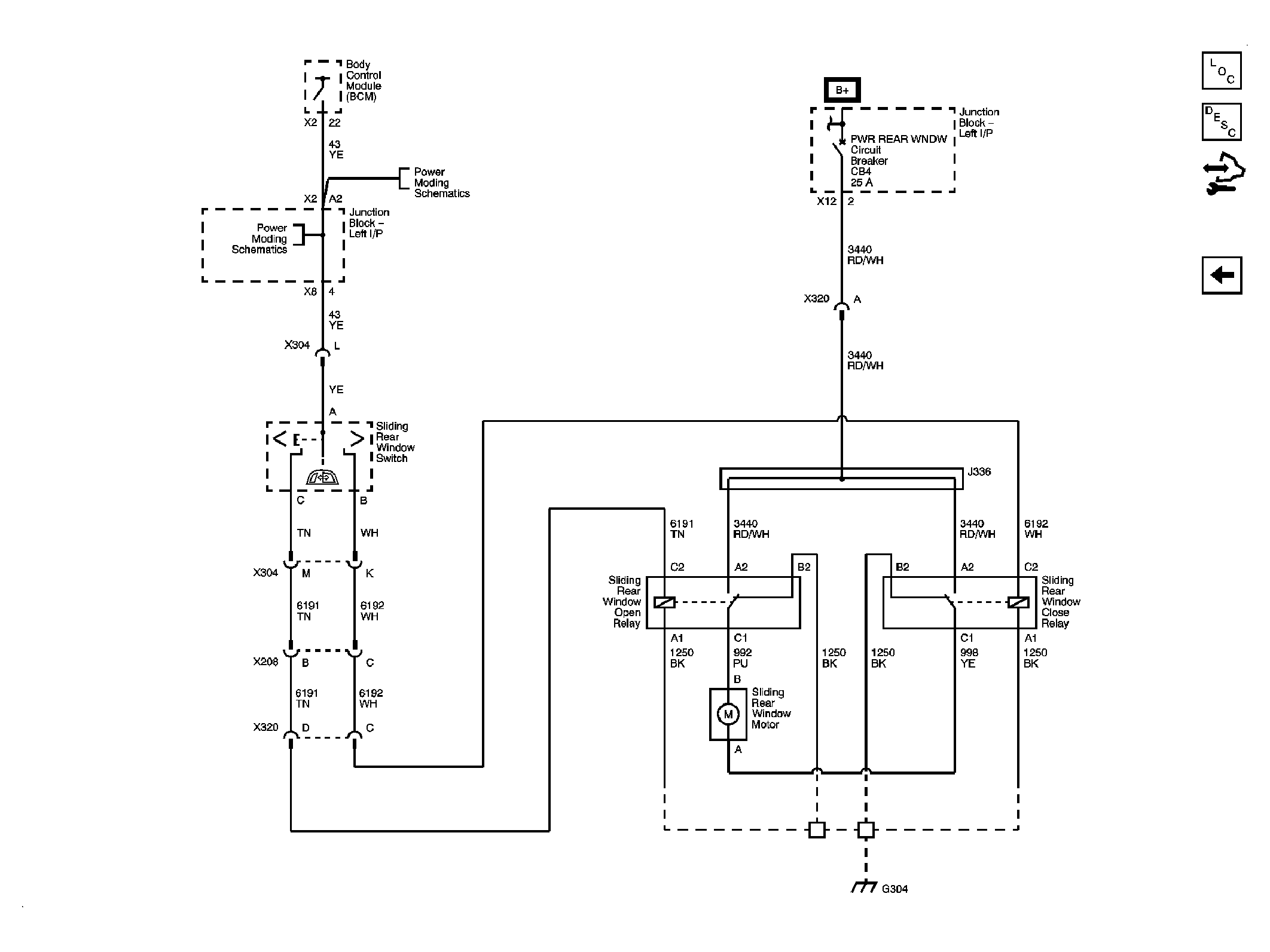

Fig 5: Sliding Rear Window Circuit Schematic (A48)

Courtesy of GENERAL MOTORS CORP.
