Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

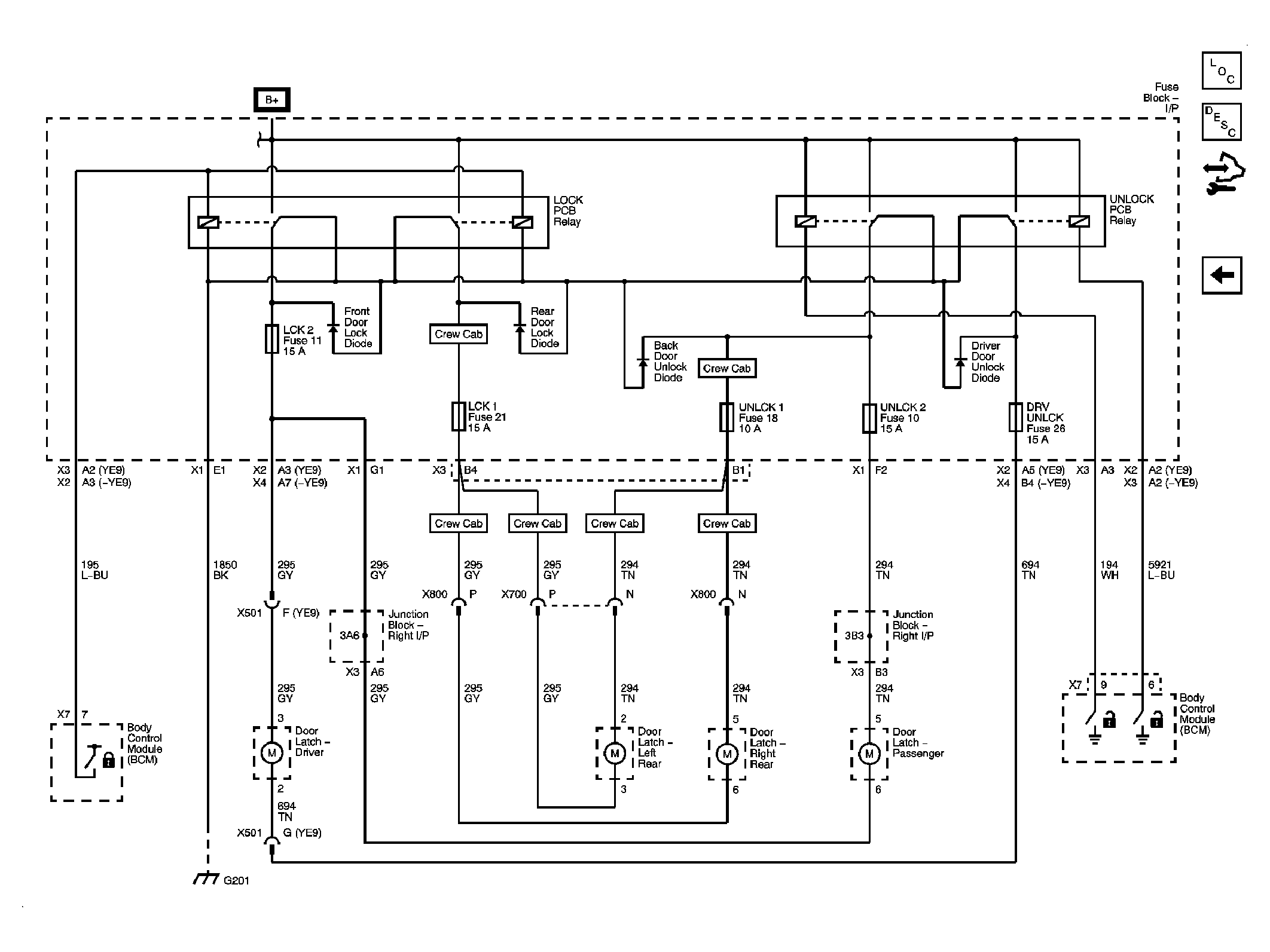

Fig 1: Door Lock Controls & Front Door Locks Circuit Schematic (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Door Locks Circuit Schematic (Crew Cab with AN3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Door Lock Controls Circuit Schematic (AU3 without AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Lock Motors Circuit Schematic (AU3 without AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
