Starting and Charging Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

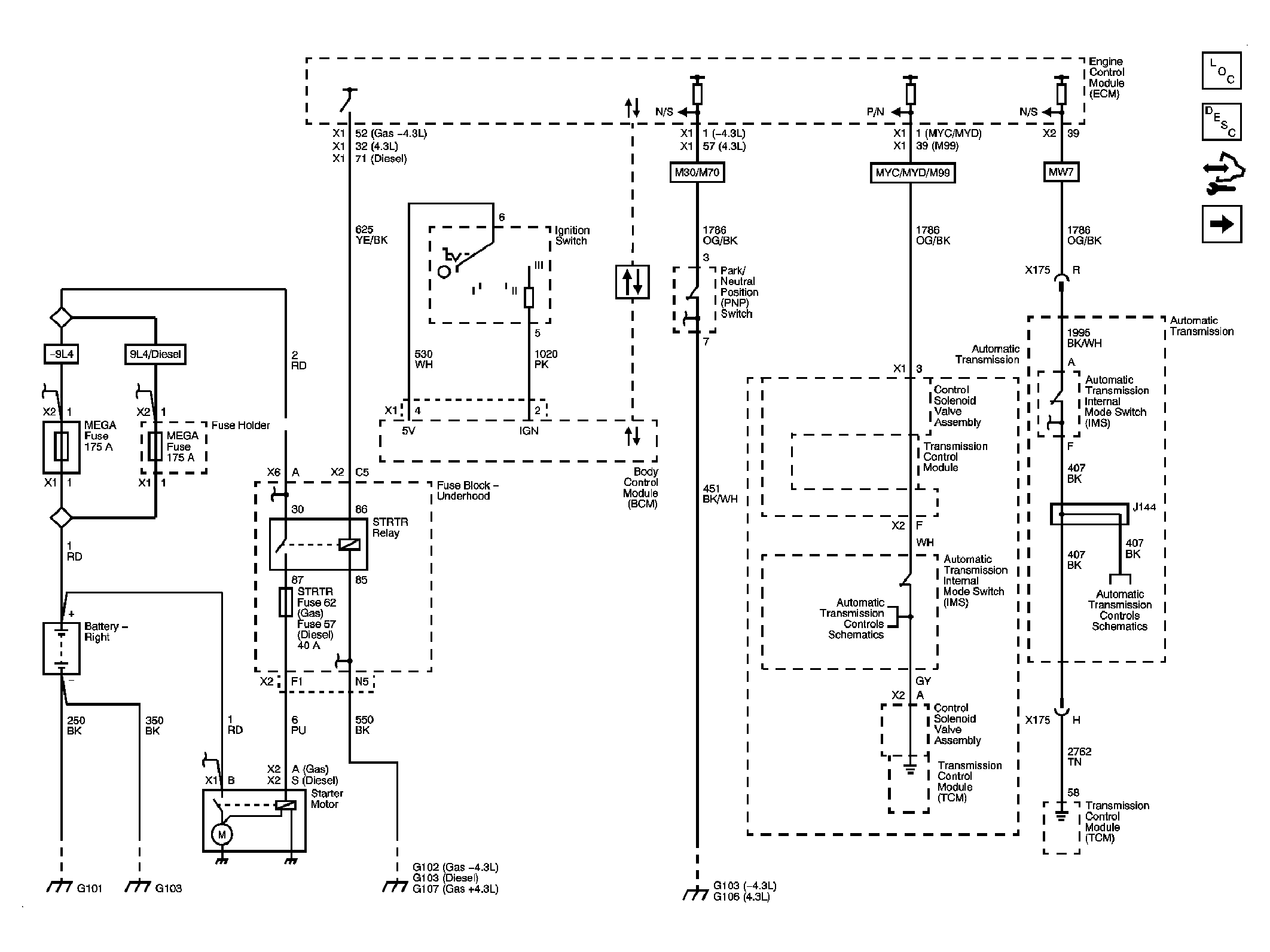

Fig 1: Starting Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

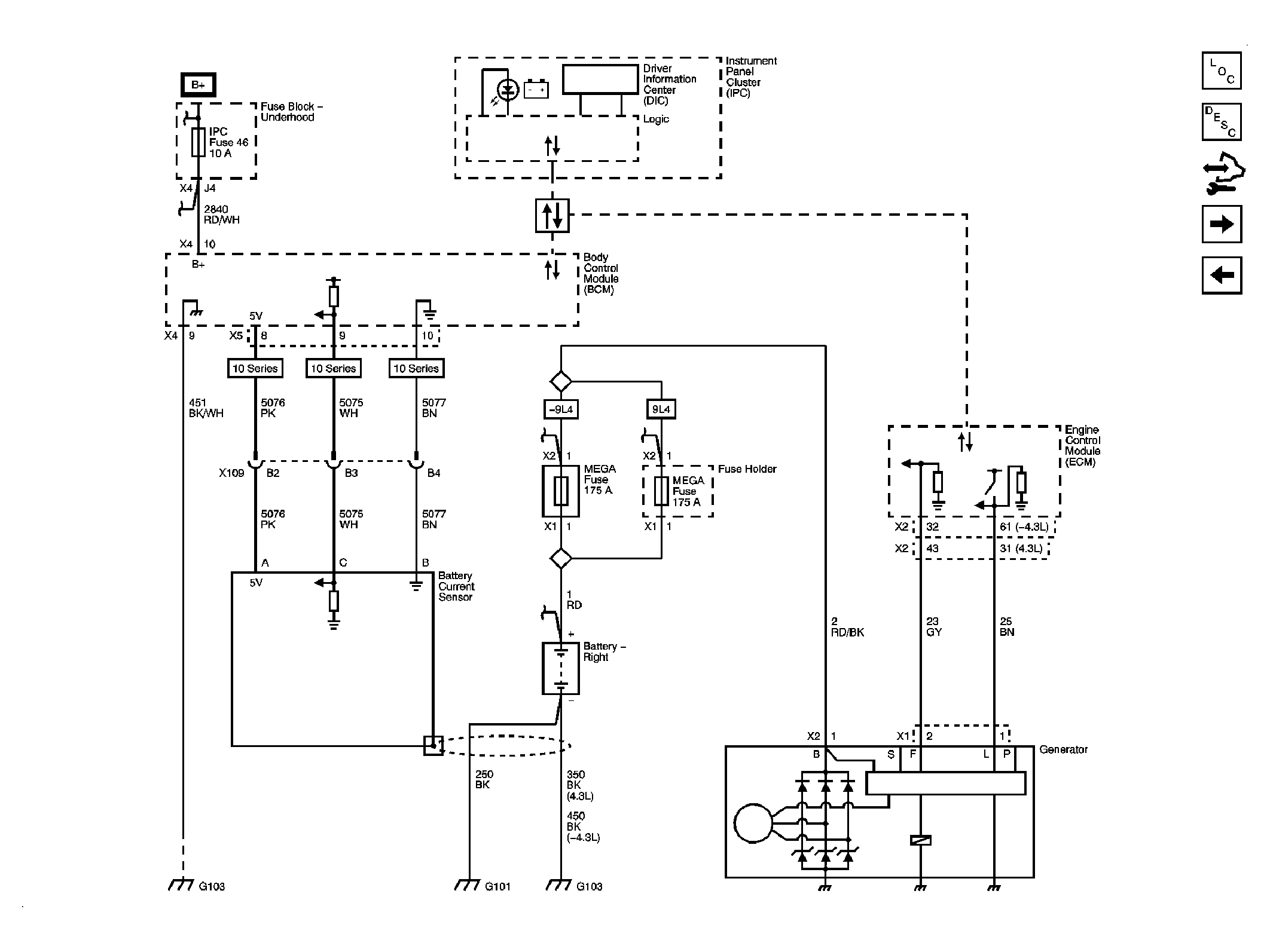

Fig 2: Charging Circuit Schematic (Gas)

Courtesy of GENERAL MOTORS CORP.

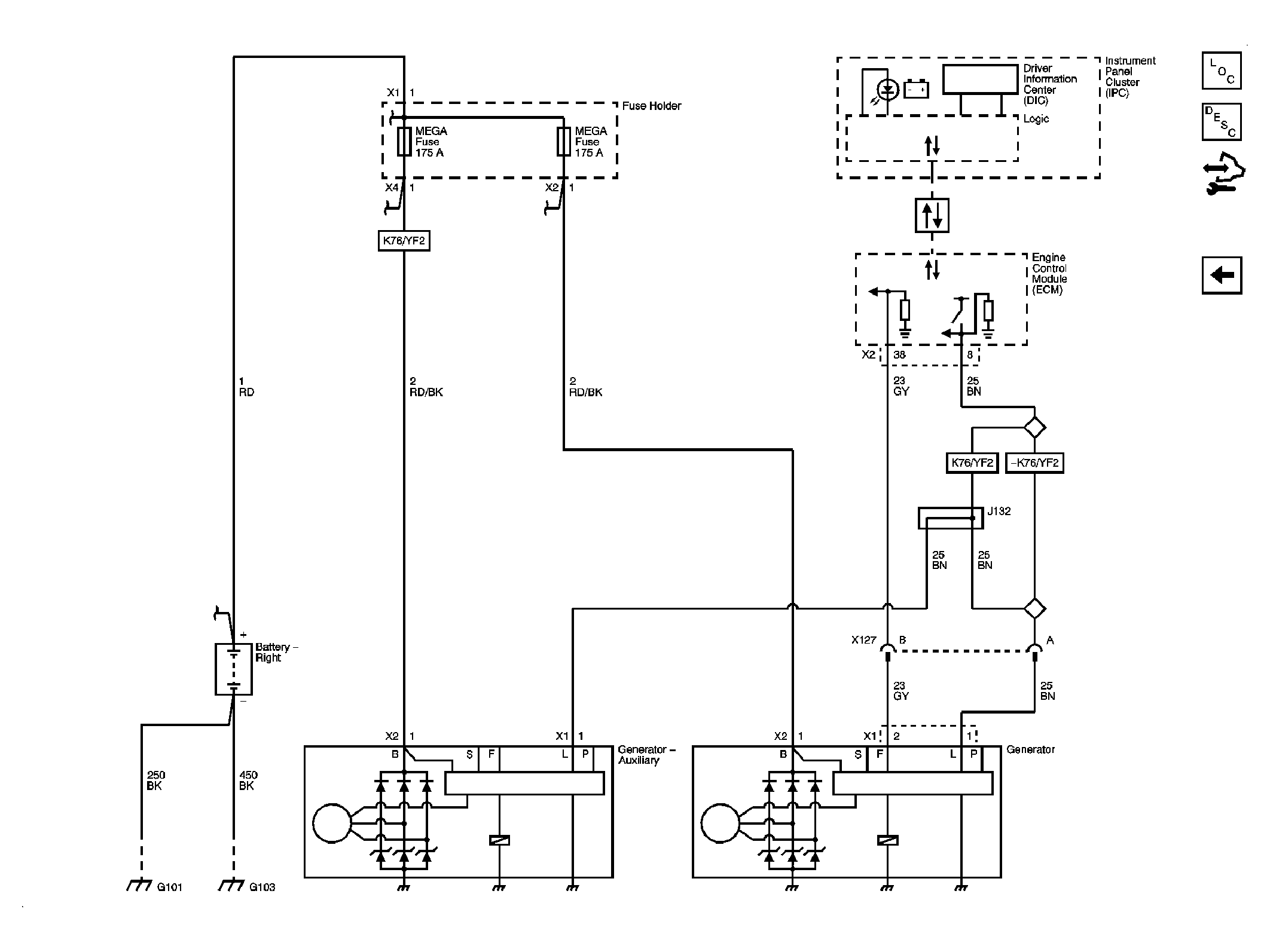

Fig 3: Charging Circuit Schematic (Diesel)

Courtesy of GENERAL MOTORS CORP.
