Auxiliary Battery Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

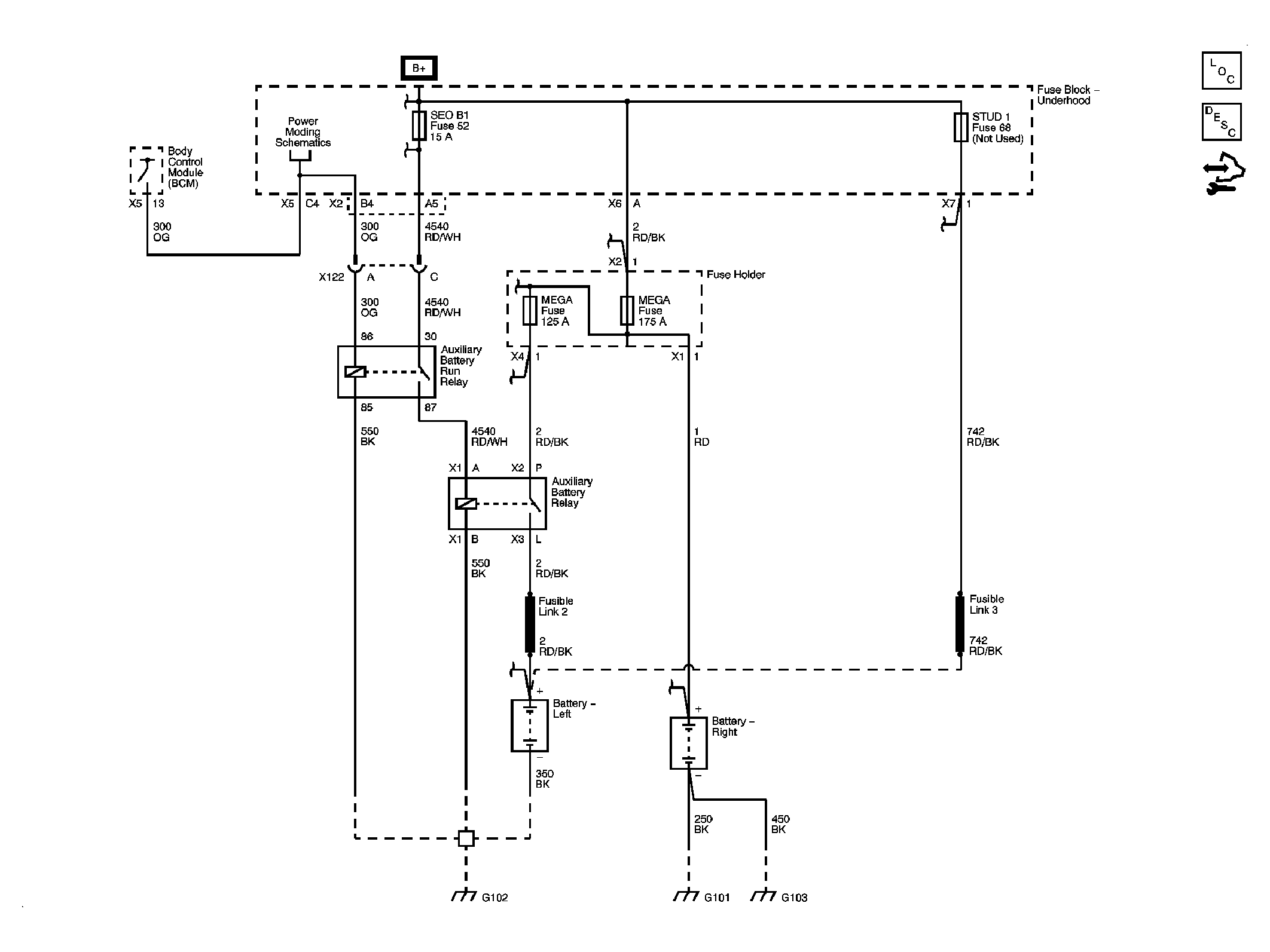

Fig 1: Auxiliary Battery Schematic
GM2064896Courtesy of GENERAL MOTORS CORP.
