Interior Lights Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

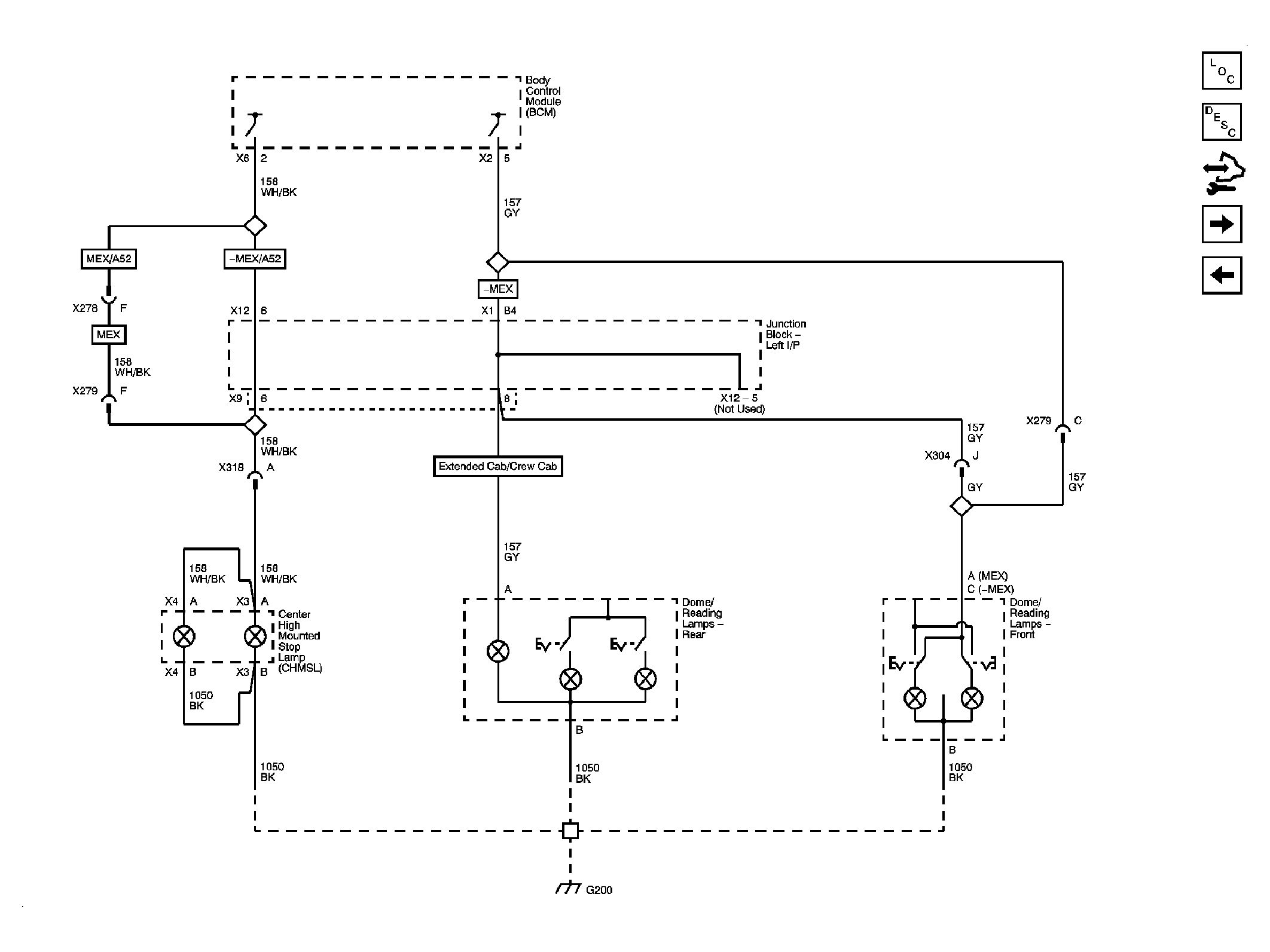

Fig 1: Inadvertent Lamp Control Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

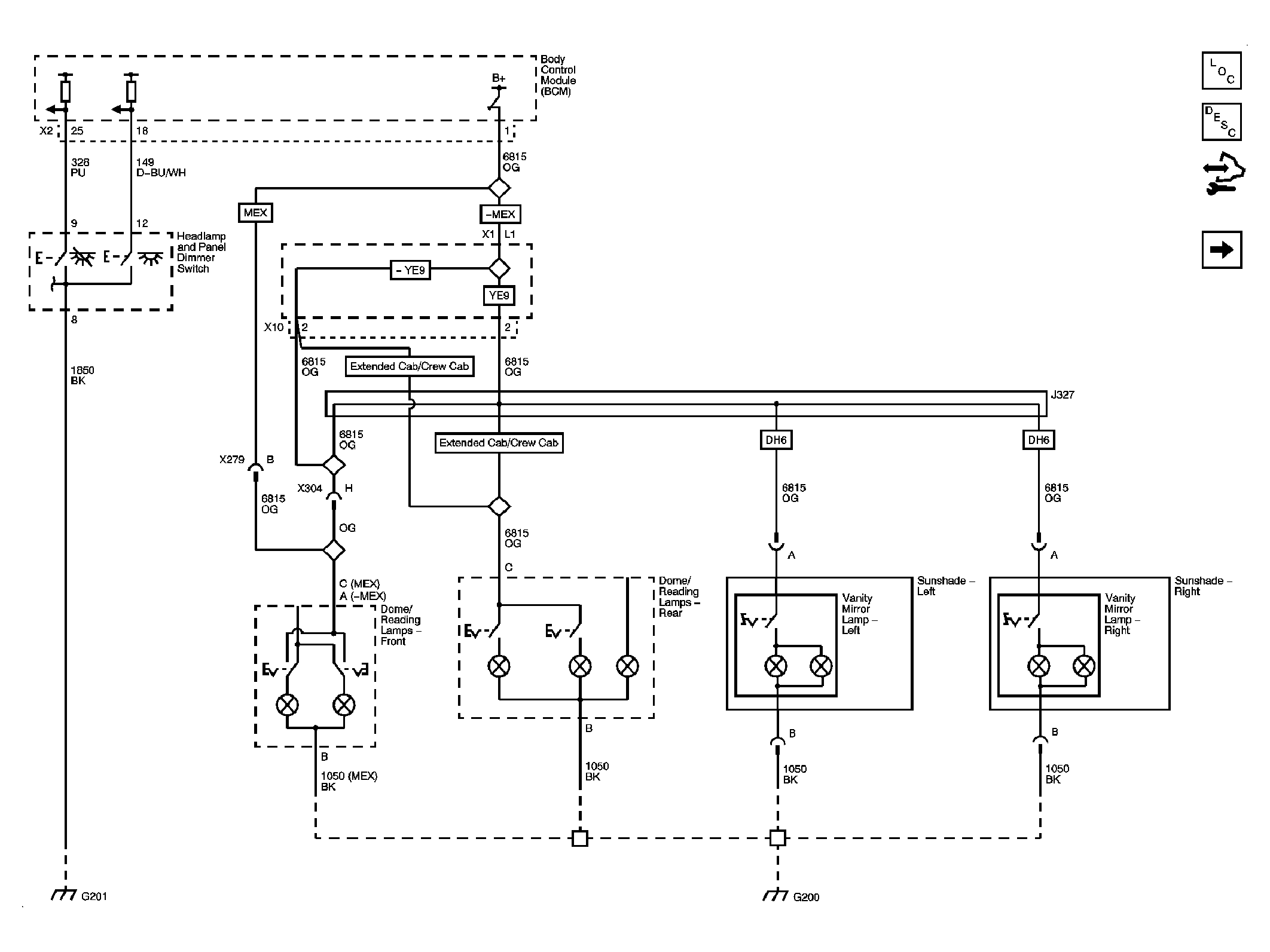

Fig 2: Courtesy Lamp Control Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

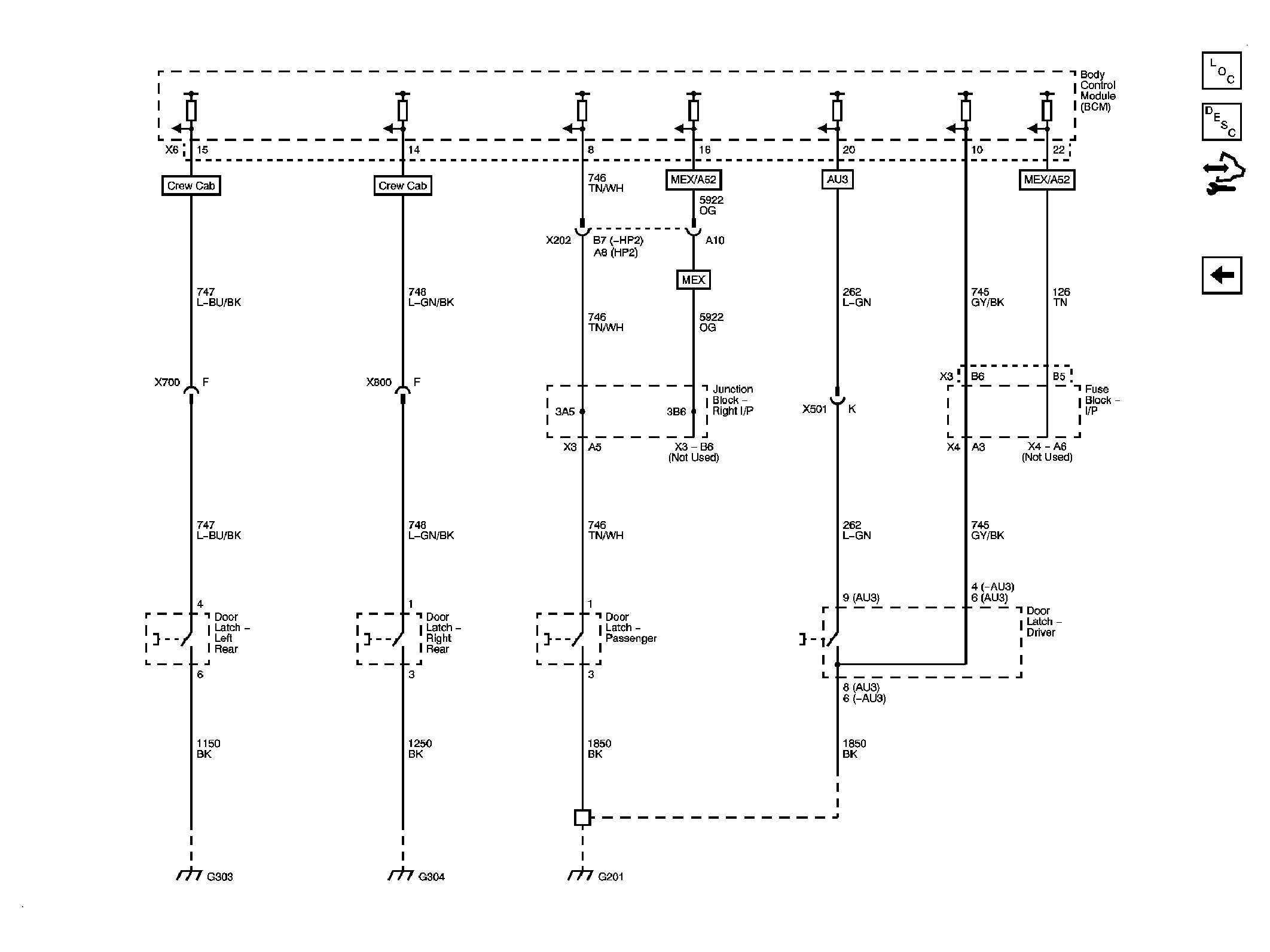

Fig 3: Door Jamb Switches Circuit Schematic (AN3/DL3)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Jamb Switches Circuit Schematic (except AN3/DL3)

Courtesy of GENERAL MOTORS CORP.
