Exterior Lights Schematics

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

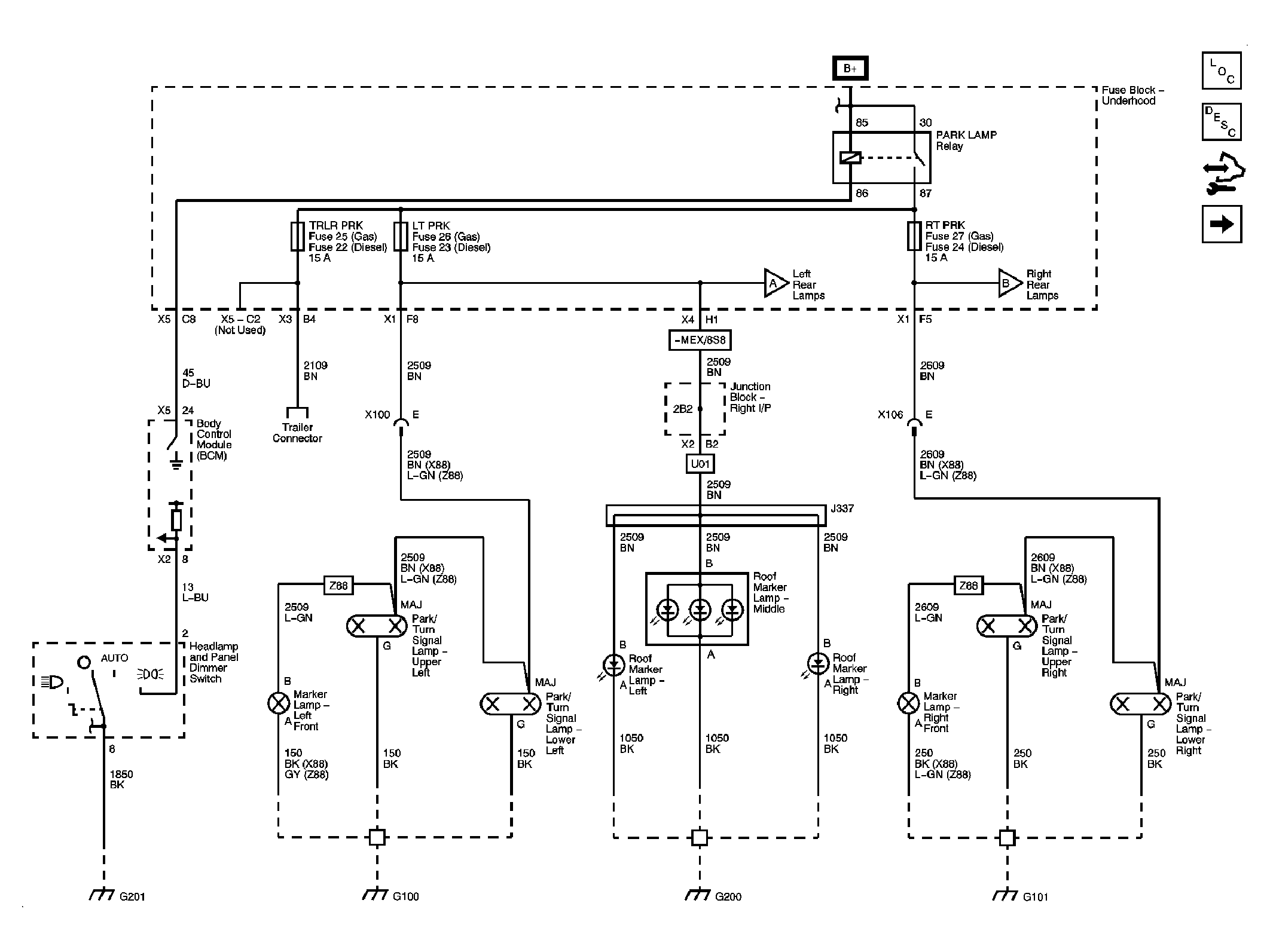

Fig 1: Park Lamp Controls & Front Park Lamps Circuit Schematic

GM2064537

Courtesy of GENERAL MOTORS CORP.

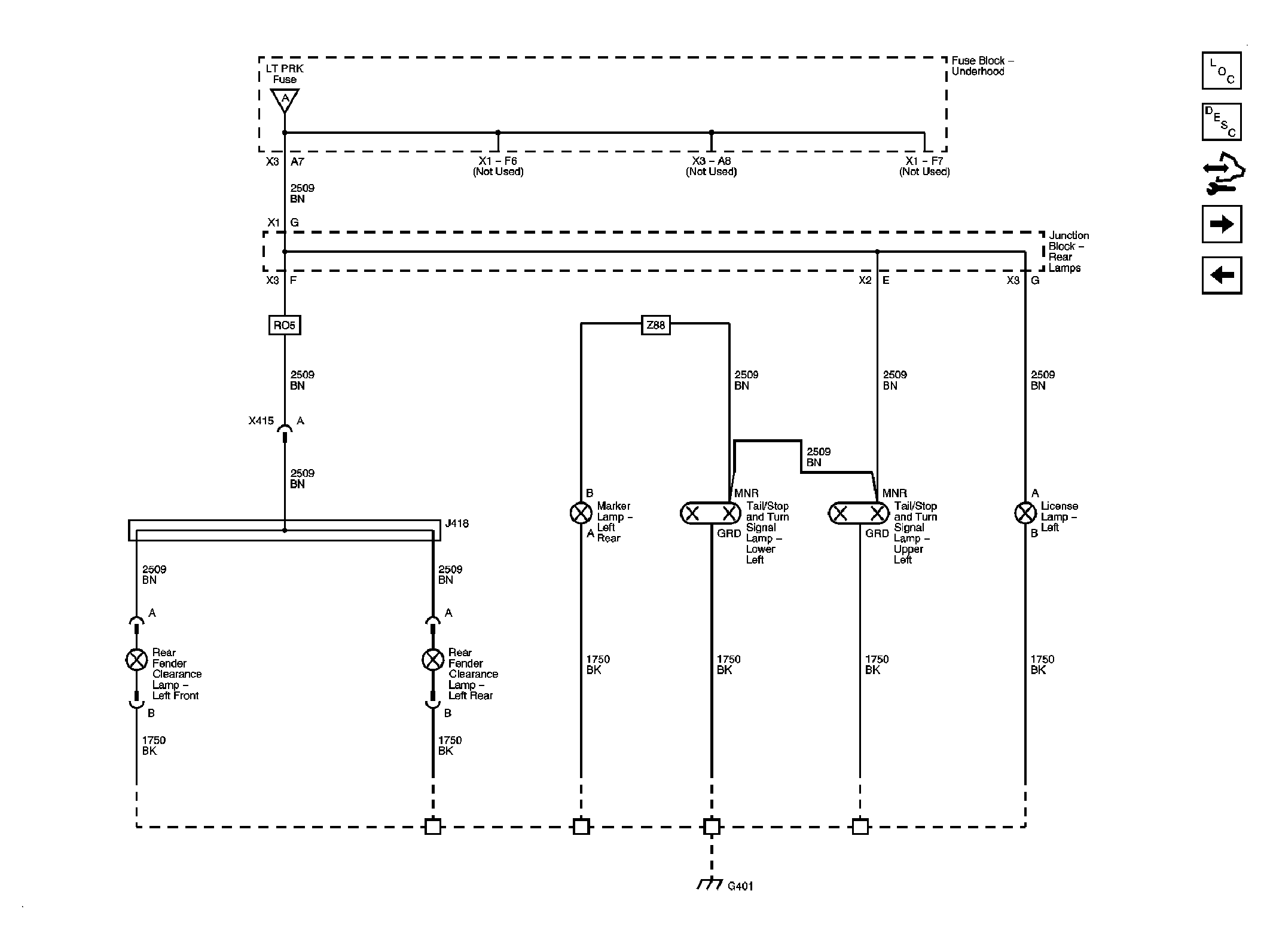

Fig 2: Left Rear Park Lamps Circuit Schematic

GM2064540

Courtesy of GENERAL MOTORS CORP.

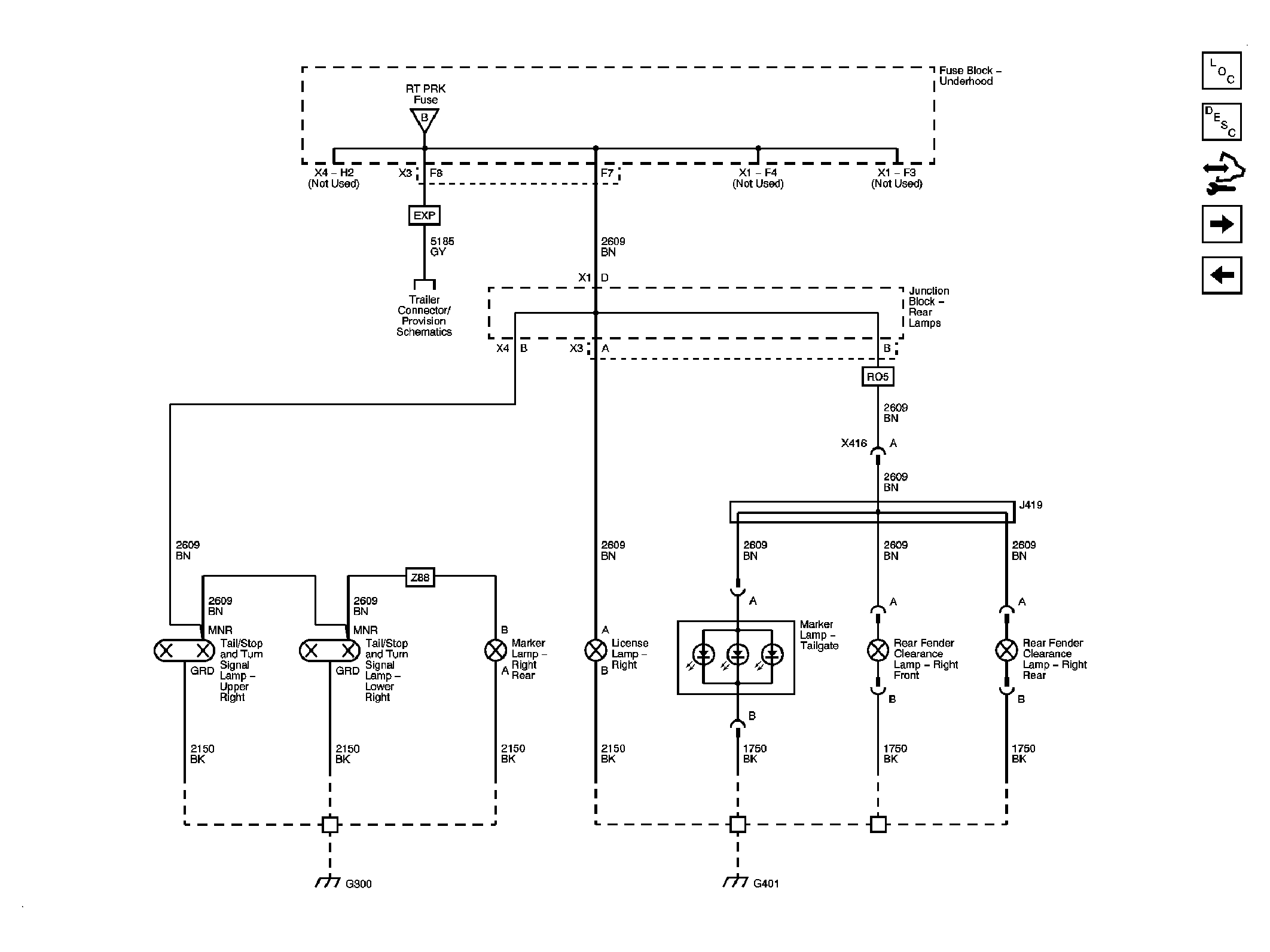

Fig 3: Right Rear Park Lamps Circuit Schematic

GM2064543

Courtesy of GENERAL MOTORS CORP.

Fig 4: Exterior Illumination Lamps Circuit Schematic (DL3/DR4)

GM2064546

Courtesy of GENERAL MOTORS CORP.

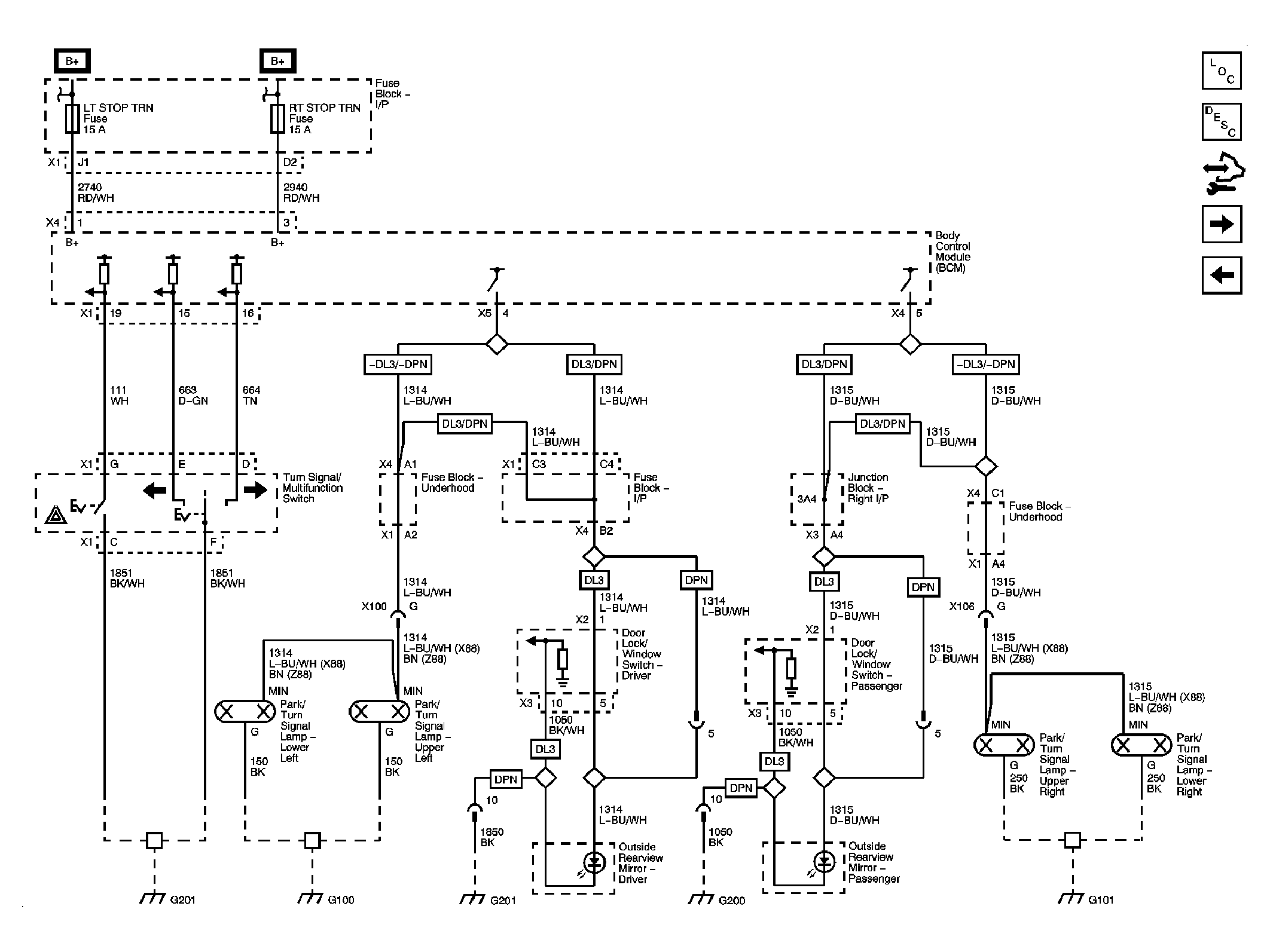

Fig 5: Turn Signal Controls & Front Turn Signal Lamps Circuit Schematic

GM2064551

Courtesy of GENERAL MOTORS CORP.

Fig 6: Rear Stop/Turn Signal Lamps Circuit Schematic

GM2064554

Courtesy of GENERAL MOTORS CORP.

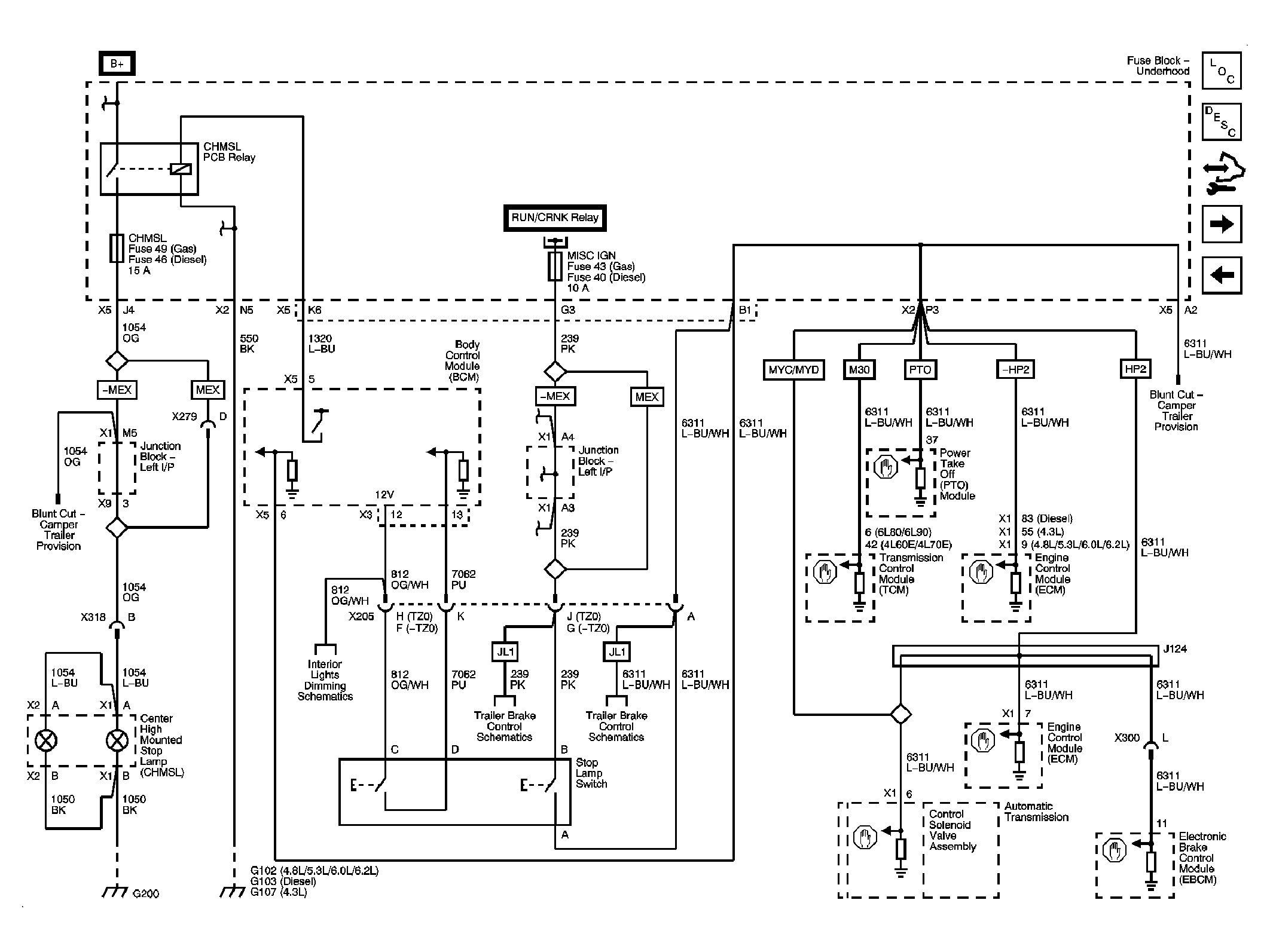

Fig 7: Stop Lamp Controls & CHMSL Circuit Schematic

GM2064556

Courtesy of GENERAL MOTORS CORP.

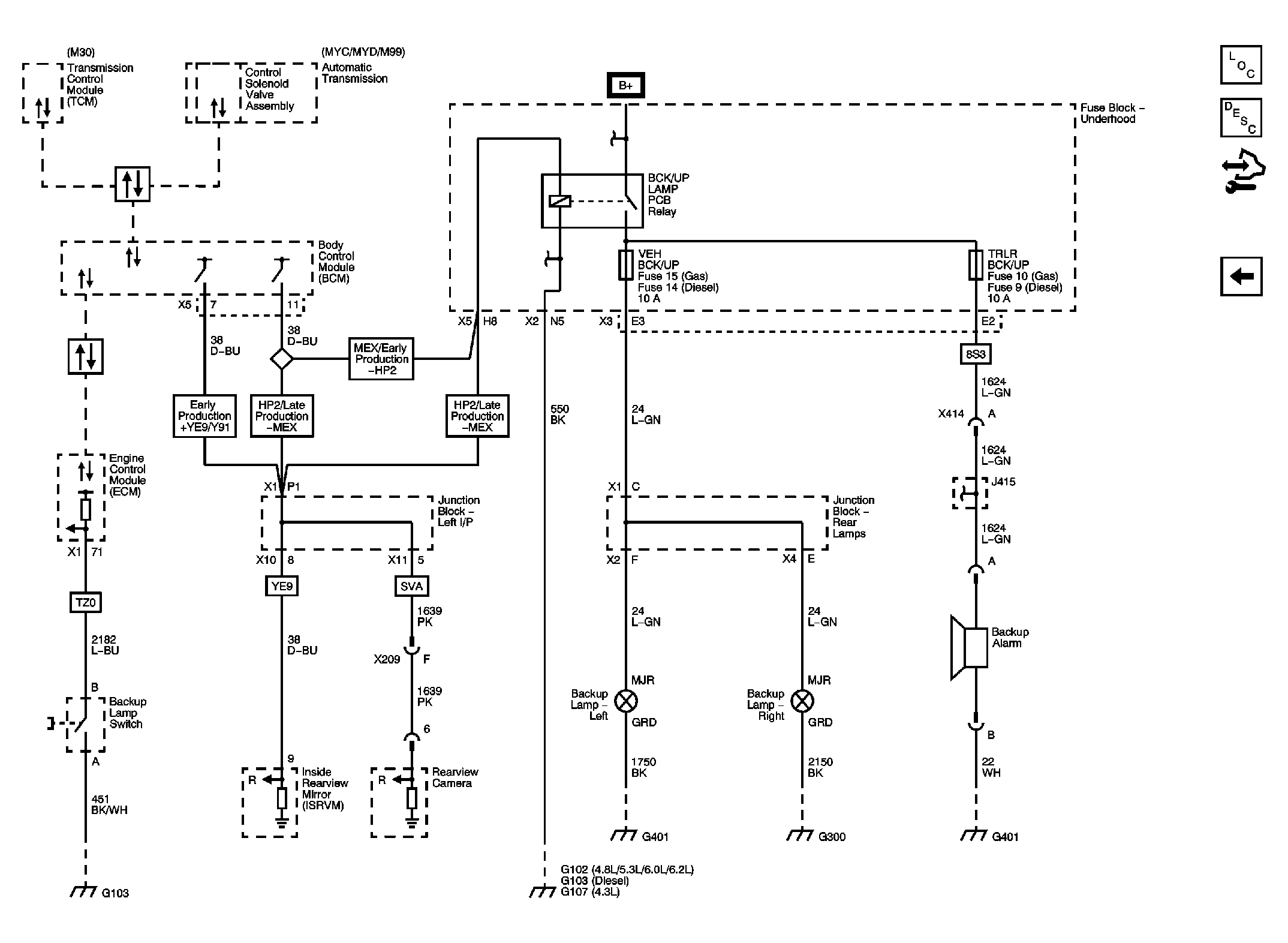

Fig 8: Backup Lamps & Backup Alarm Circuit Schematic

GM2064559

Courtesy of GENERAL MOTORS CORP.
