Rear Seat Latch Replacement (Extended Cab with AM7)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

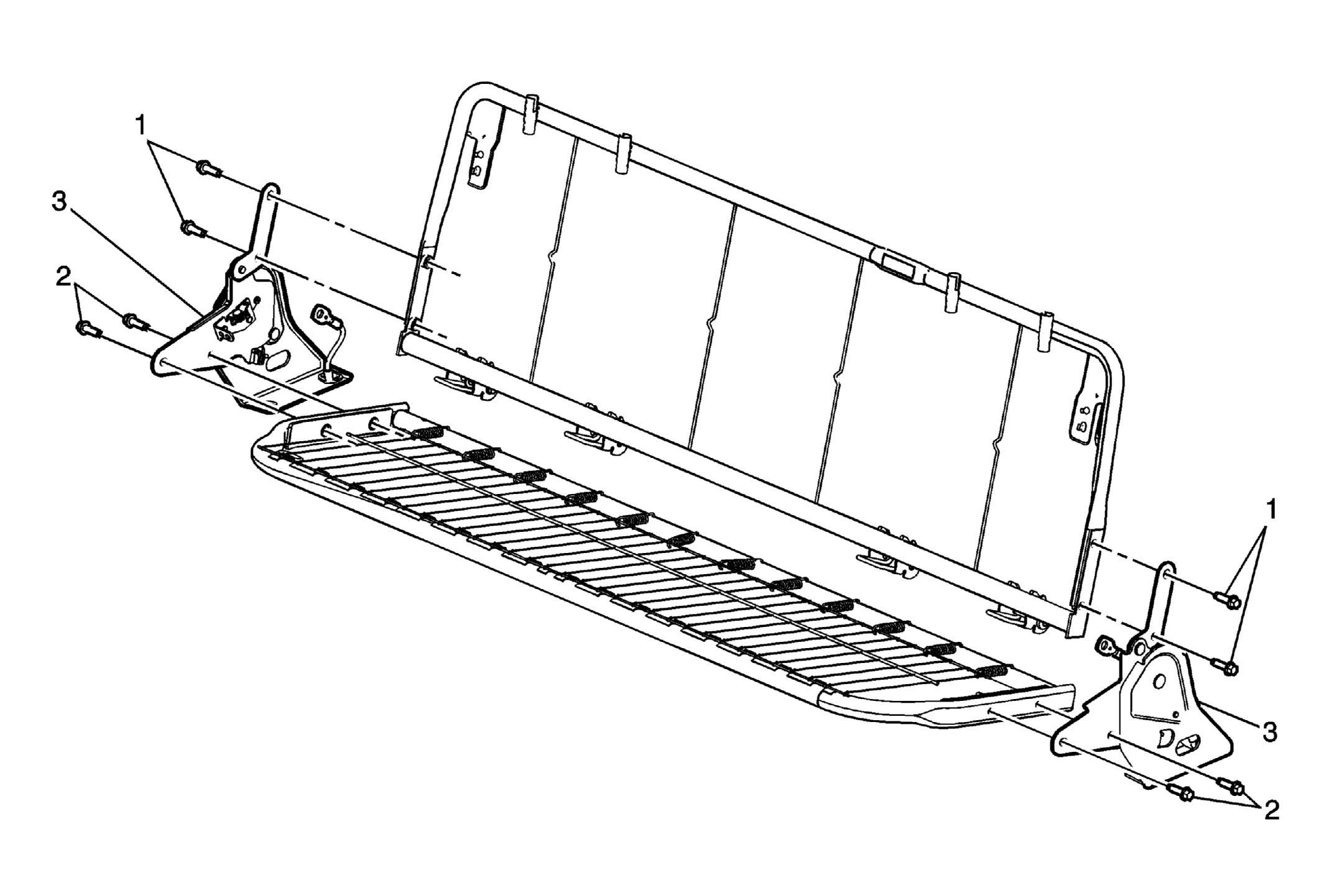

Fig 1: View Of Rear Seat Latch (Extended Cab with AM7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bench seat. Refer to Rear Seat Replacement (Crew Cab with A68) , Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) . Remove the rear seat back recliner cover. Refer to Rear Seat Back Recliner Cover Replacement (Crew Cab with A68) or Rear Seat Back Recliner Cover Replacement (Extended Cab with A68) . Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with A68) , Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Back Cushion Cover and Pad Replacement (Crew Cab with A68) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Extended Cab with A68) , Rear Seat Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Cushion Cover and Pad Replacement (Crew Cab with A68) .
1	Rear Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb ft)
2	Rear Seat Cushion Frame Bolt (Qty: 4) Tighten: 9 N.m (80 lb ft)
3	Rear Seat Latch (Qty: 2) Tip: Disconnect the latch cable.
