Rear Seat Back Cushion Frame Replacement (Extended Cab with AM7)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

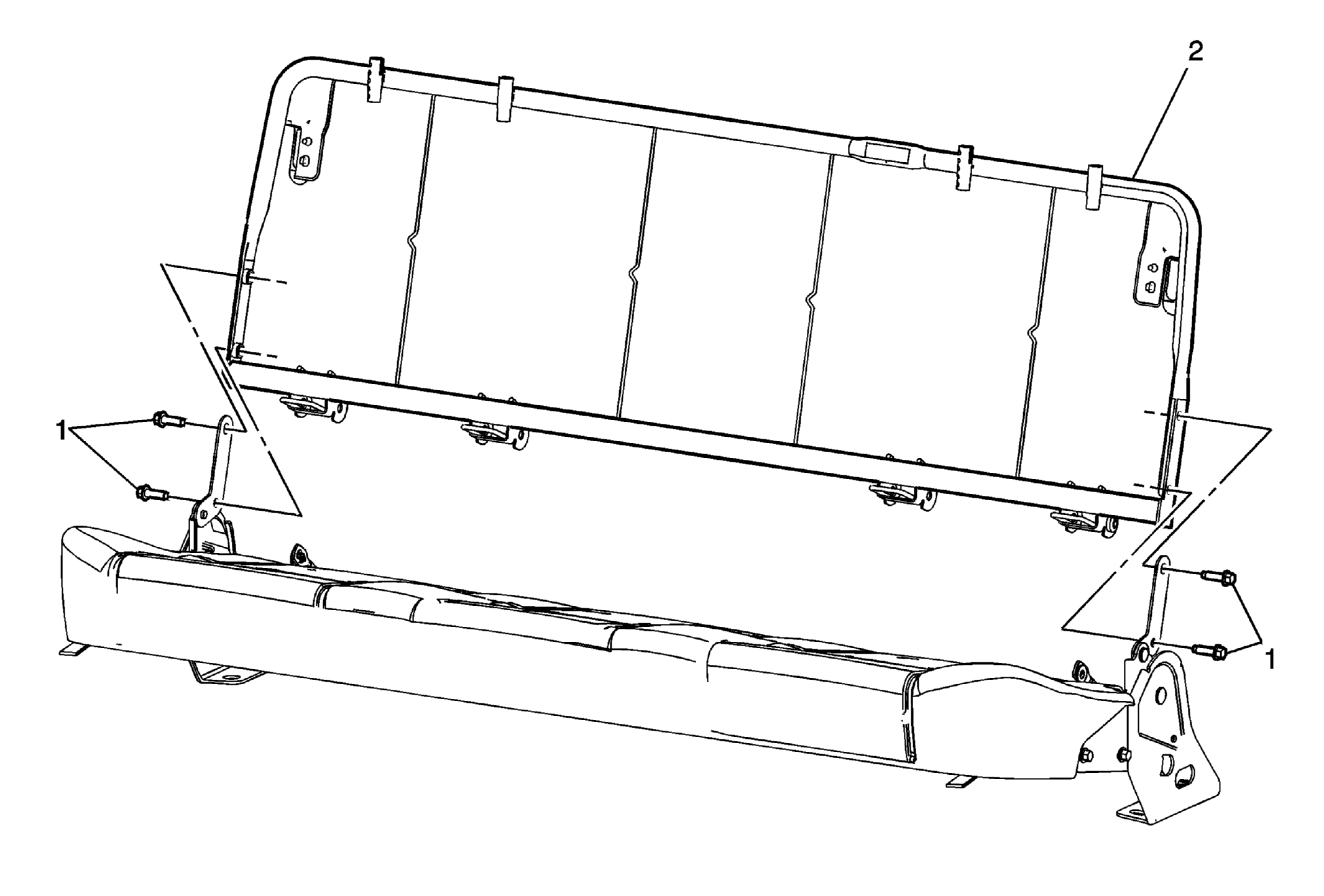

Fig 1: View Of Rear Seat Back Cushion Frame & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bench seat. Refer to Rear Seat Replacement (Crew Cab with A68) , Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) . Remove the rear seat back recliner cover. Refer to Rear Seat Back Recliner Cover Replacement (Crew Cab with A68) , Rear Seat Back Recliner Cover Replacement (Extended Cab with A68) . Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement . Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with A68) , Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Back Cushion Cover and Pad Replacement (Crew Cab with A68) .
1	Rear Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Rear Seat Back Cushion Frame

Callout

Component Name

Preliminary Procedures

Remove the rear bench seat. Refer to Rear Seat Replacement (Crew Cab with A68) , Rear Seat Replacement (Extended Cab with AM7) or Rear Seat Replacement (Extended Cab with A68) .
Remove the rear seat back recliner cover. Refer to Rear Seat Back Recliner Cover Replacement (Crew Cab with A68) , Rear Seat Back Recliner Cover Replacement (Extended Cab with A68) .
Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement .
Remove the rear seat head restraint guides. Refer to Rear Seat Head Restraint Guide Replacement .
Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with A68) , Rear Seat Back Cushion Cover and Pad Replacement (Extended Cab with AM7) or Rear Seat Back Cushion Cover and Pad Replacement (Crew Cab with A68) .

Rear Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Rear Seat Back Cushion Frame
