Rear Bumper Impact Bar Brace Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

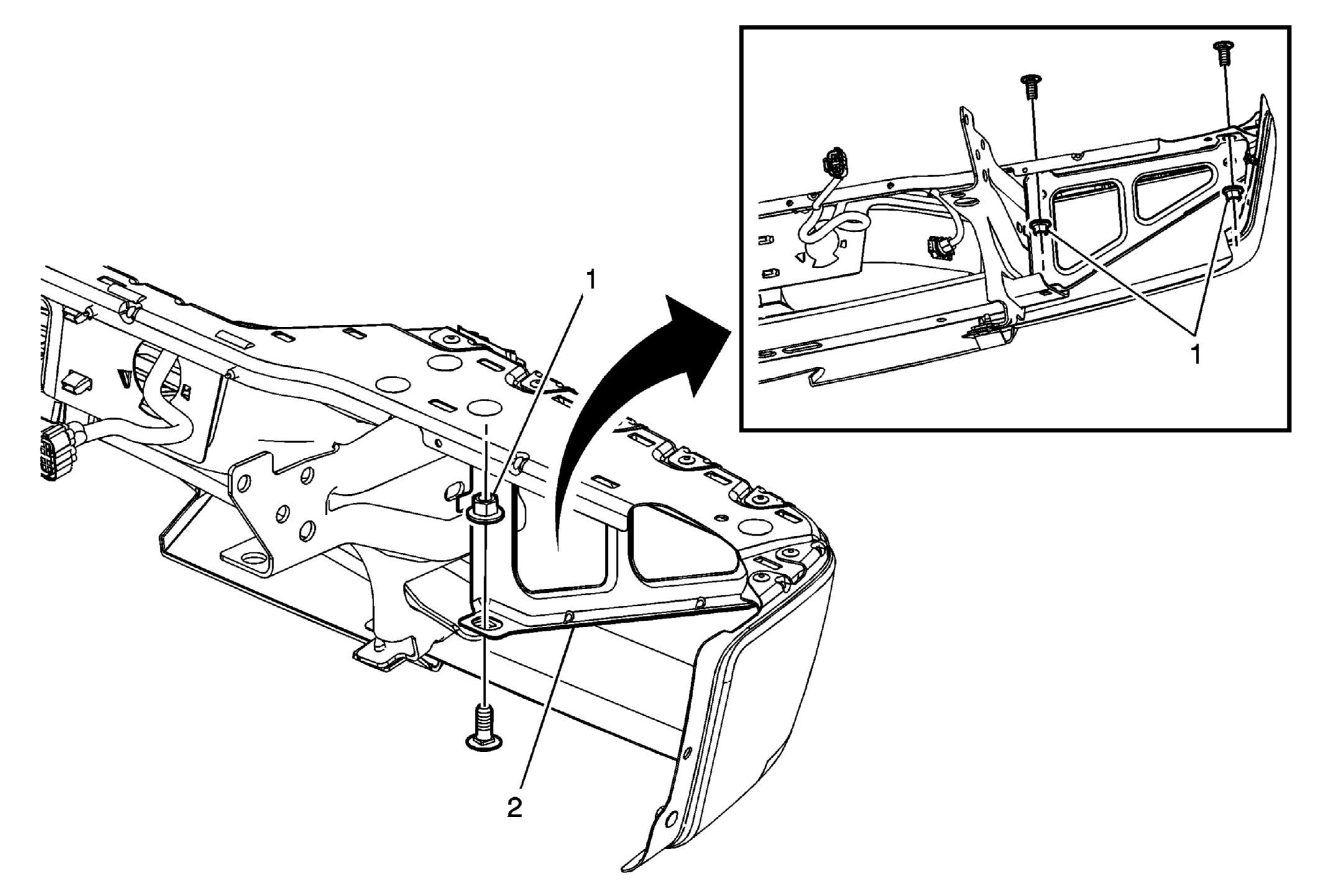

Fig 1: View Of Rear Bumper Impact Bar Brace

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bumper step outer pad. Refer to Rear Bumper Step Outer Pad Replacement . Remove the pencil brace.
1	Rear Bumper Impact Bar Brace Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 70 N.m (52 lb ft)
2	Rear Bumper Impact Bar Brace

Callout

Component Name

Preliminary Procedures

Remove the rear bumper step outer pad. Refer to Rear Bumper Step Outer Pad Replacement .
Remove the pencil brace.

Rear Bumper Impact Bar Brace Nuts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 70 N.m (52 lb ft)

Rear Bumper Impact Bar Brace
