Removal Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

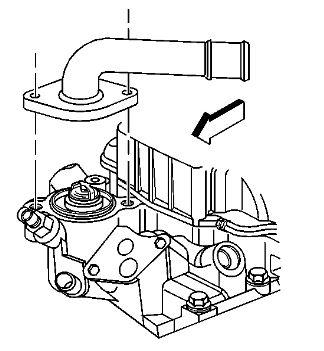

    Fig 1: Water Outlet Tube
    G00572888Courtesy of GENERAL MOTORS CORP.
  1. Remove the water outlet tube. Refer to Water Outlet Tube Replacement (LU3) .
  2. Remove the water outlet.

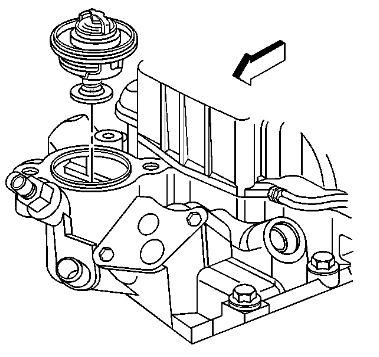

    3. Fig 2: Thermostat
    G00572889Courtesy of GENERAL MOTORS CORP.
  3. Remove the thermostat.
  4. Clean the sealing surface of the water outlet.
  5. Clean the sealing surface of the intake manifold.
  6. Remove and discard the O-ring seal.
