Hood Front Molding Replacement (Chevrolet V22)
WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

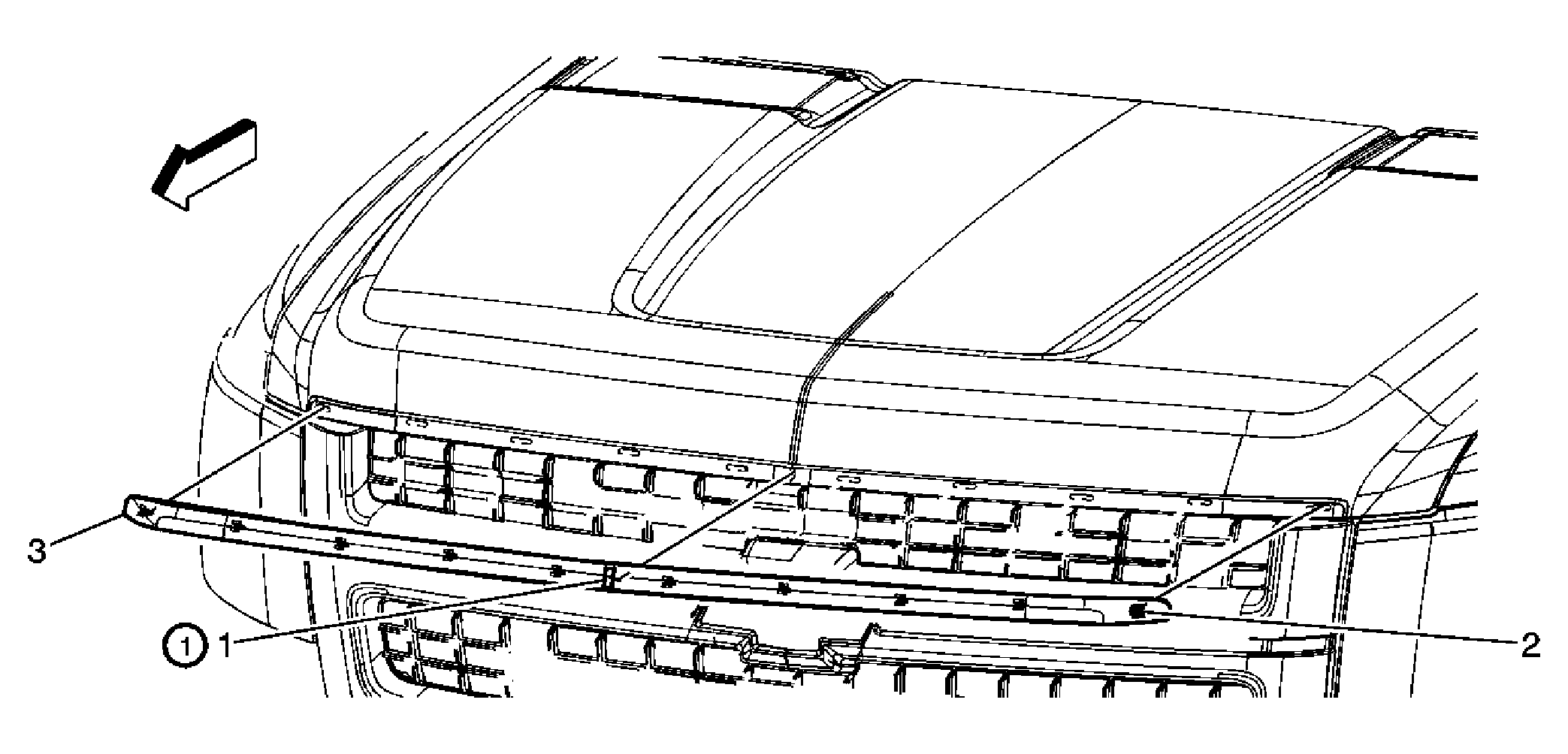

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Release the hood in order to access the front hood molding. |
|
| 1 | Hood Front Molding Locator Tab Tip: Position the locator tab first into the hood panel center hole followed by the remaining retainers. |
| 2 | Hood Front Molding Retainer Clips Tip: Secure the retainer clips working from the center of the molding, outward until all the clips are secure to the hood. |
| 3 | Hood Front Molding |
