Pressure Regulator: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Raise the vehicle. Remove the transmission oil pan and the filter. See DRAINING & REFILLING
under LUBRICATION.WARNING: Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.

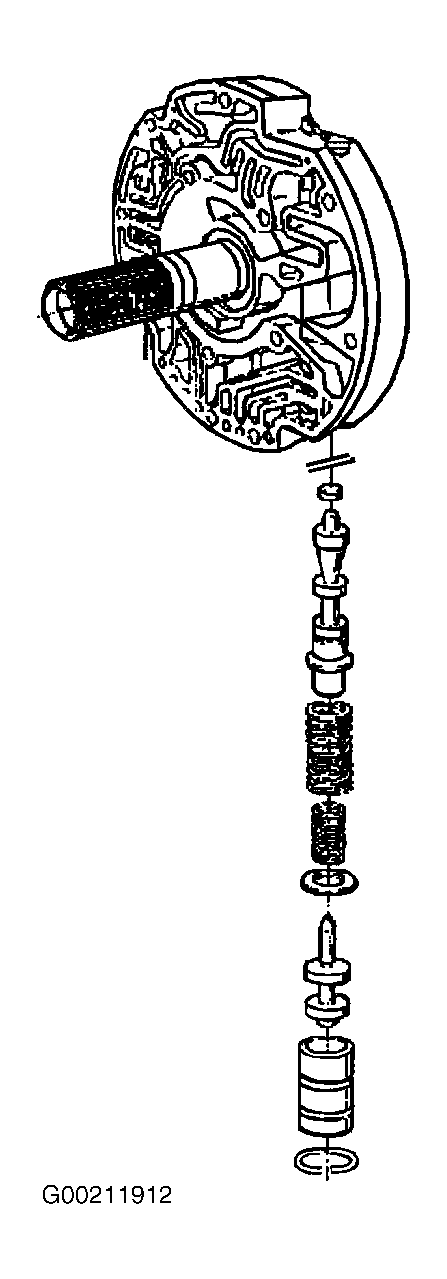

- Remove the reverse boost valve bushing retainer ring (2). See Fig 1 .
- Remove the following from the reverse boost valve cylinder:
- Reverse boost valve bushing. See Fig 2 .
- Reverse boost valve.
- Pressure regulator spring retainer.
- Pressure regulator spring.
- Pressure regulator valve.
- Reverse boost valve bushing.
