Splice Pack Connector End Views: JX301

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

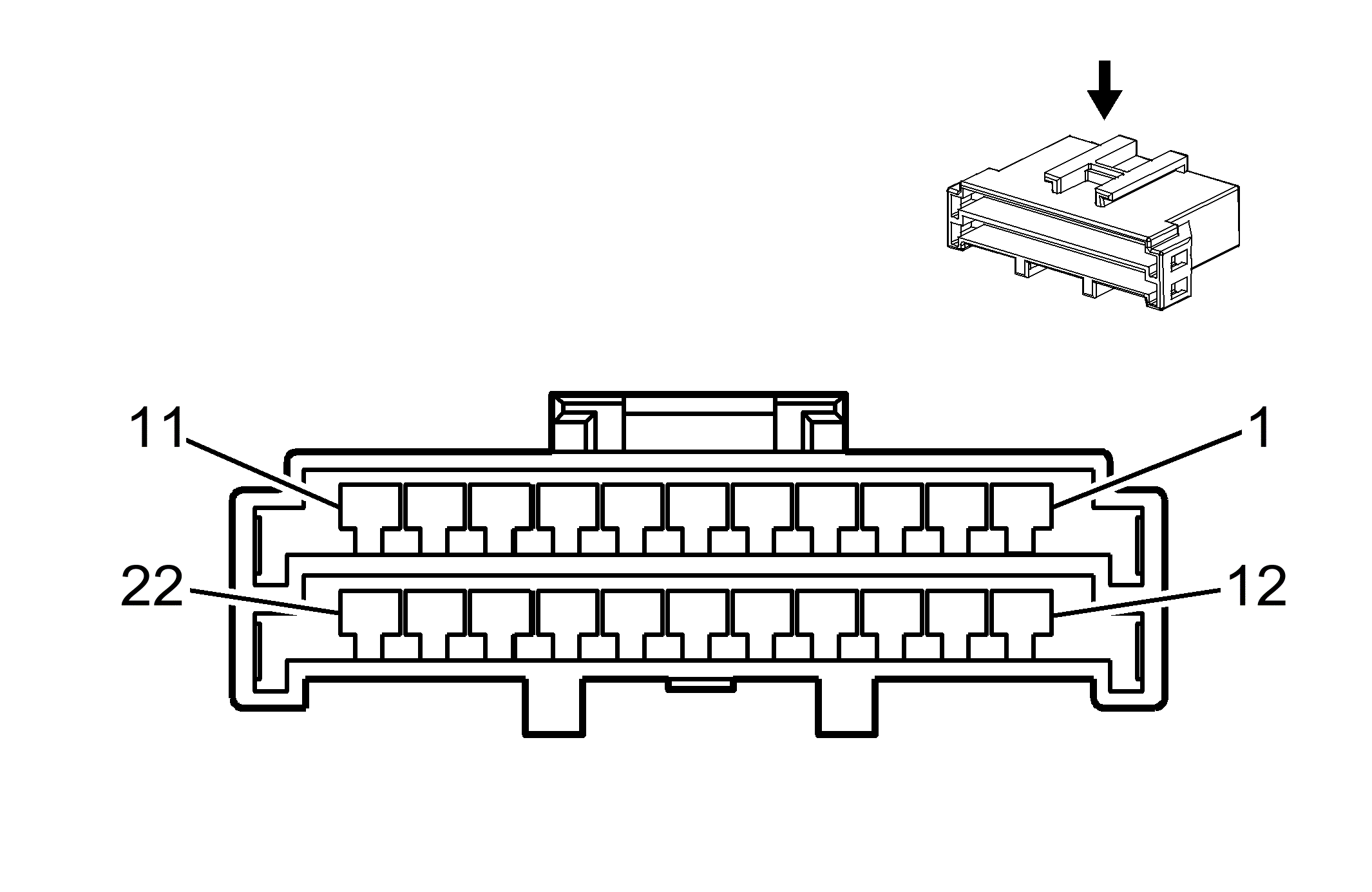

Fig 1: JX301 Connector End View
GM827317Courtesy of GENERAL MOTORS CORP.
JX301

Pin Wire Circuit Function
1 0.35 D-GN 5060 Low Speed GMLAN Serial Data
2 0.35 D-GN 5060 Low Speed GMLAN Serial Data
0.35 D-GN 5060 Low Speed GMLAN Serial Data
3 0.35 D-GN 5060 Low Speed GMLAN Serial Data (A45)
4 0.35 D-GN 5060 Low Speed GMLAN Serial Data (UHA/UHF)
0.35 D-GN 5060 Low Speed GMLAN Serial Data (-UHA/UHF)
5 0.35 D-GN 5060 Low Speed GMLAN Serial Data (UA2)
6 0.35 D-GN 5060 Low Speed GMLAN Serial Data (UQS)
7 - - Not Used
8 0.35 D-GN 5060 Low Speed GMLAN Serial Data (UD7)
9 0.35 D-GN 5060 Low Speed GMLAN Serial Data (U2X/U2Y)
0.35 D-GN 5060 Low Speed GMLAN Serial Data (UE1)
10 0.5 D-GN 5060 Low Speed GMLAN Serial Data
11-22 - - Not Used
Connector Part Information
  • OEM: 7123-1508
  • Service: 88952787
  • Description: 22-Way F Joint Connector Series (NA)
Terminal Part Information
  • Pins: 1-6, 8-10
  • Terminal/Tray: 7116-1473/10
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-33 (YE)
