Splice Pack Connector End Views: JX201

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

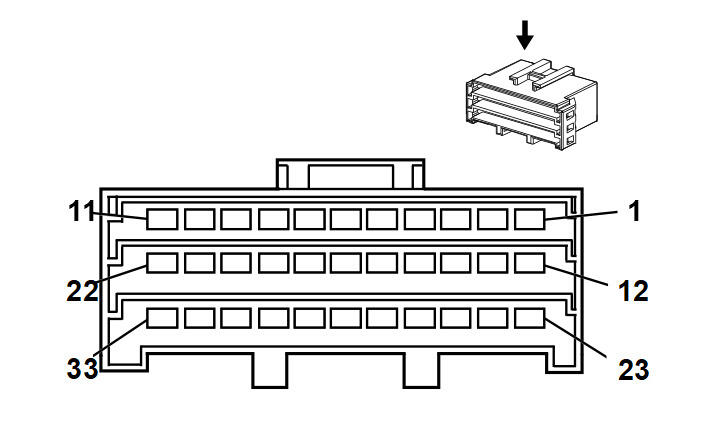

Fig 1: JX201 Connector End View
GM827305Courtesy of GENERAL MOTORS CORP.
JX201

Pin Wire Circuit Function
1 0.35 D-GN 5060 Low Speed GMLAN Serial Data
2 0.35 D-GN 5060 Low Speed GMLAN Serial Data
3 0.35 D-GN 5060 Low Speed GMLAN Serial Data
4 0.35 D-GN 5060 Low Speed GMLAN Serial Data (-BTM)
5-18 - - Not Used
19 0.5 TN/WH 2500 High Speed GMLAN Serial Data Bus+
20 - - Not Used
21 0.35 TN/WH 2500 High Speed GMLAN Serial Data Bus+ (-UE1)
0.35 TN/WH 2500 High Speed GMLAN Serial Data Bus+ (UE1)
22 0.35 TN/WH 2500 High Speed GMLAN Serial Data Bus+
23 - - Not Used
24 0.35 YE 61 Low Reference
25 0.35 YE 61 Low Reference
26 0.35 YE 61 Low Reference
27 0.35 YE 61 Low Reference
28-29 - - Not Used
30 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
31 - - Not Used
32 0.35 TN 2501 High Speed GMLAN Serial Data Bus- (-UE1)
0.35 TN 2501 High Speed GMLAN Serial Data Bus- (UE1)
33 0.35 TN 2501 High Speed GMLAN Serial Data Bus-
Connector Part Information
  • OEM: 7123-1509
  • Service: 88988397
  • Description: 33-Way F Joint Connector Series (NA)
Terminal Part Information
  • Pins: 1-4, 19, 21, 22, 24-27, 30, 32, 33
  • Terminal/Tray: 7116-1470/10
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-33 (YE)
